Cylinder Head

NOTE: Head Bolts are reusable.

Cylinder Head

Install cylinder head bolts.
- Apply a light coat if engine oil on the threads and under the heads of the cylinder head bolts.
- Using 8mm and 10mm hexagon wrench, install and tighten the 10 cylinder head bolts and plate washers, in several passes, in the sequence shown.

Tightening torque:
M10 22.6 - 26.5 Nm (2.3 - 2.7 kgf.m, 16.6 - 19.5 lb-ft) + (60° ~ 65°) + (60° ~ 65°)
M12 27.5 - 31.4 Nm (2.8 - 3.2 kgf.m, 20.3 - 23.1 lb-ft) + (60° ~ 65°) + (60° ~ 65°)

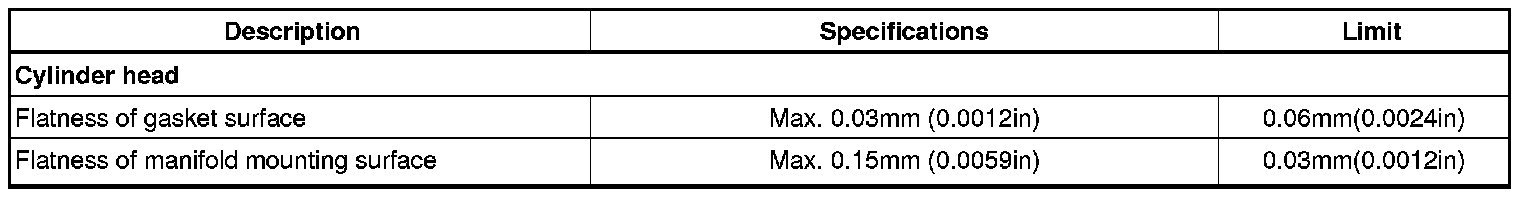

SURFACE VARIATION - WARPAGE
