Blower & A/C Control System (Auto)

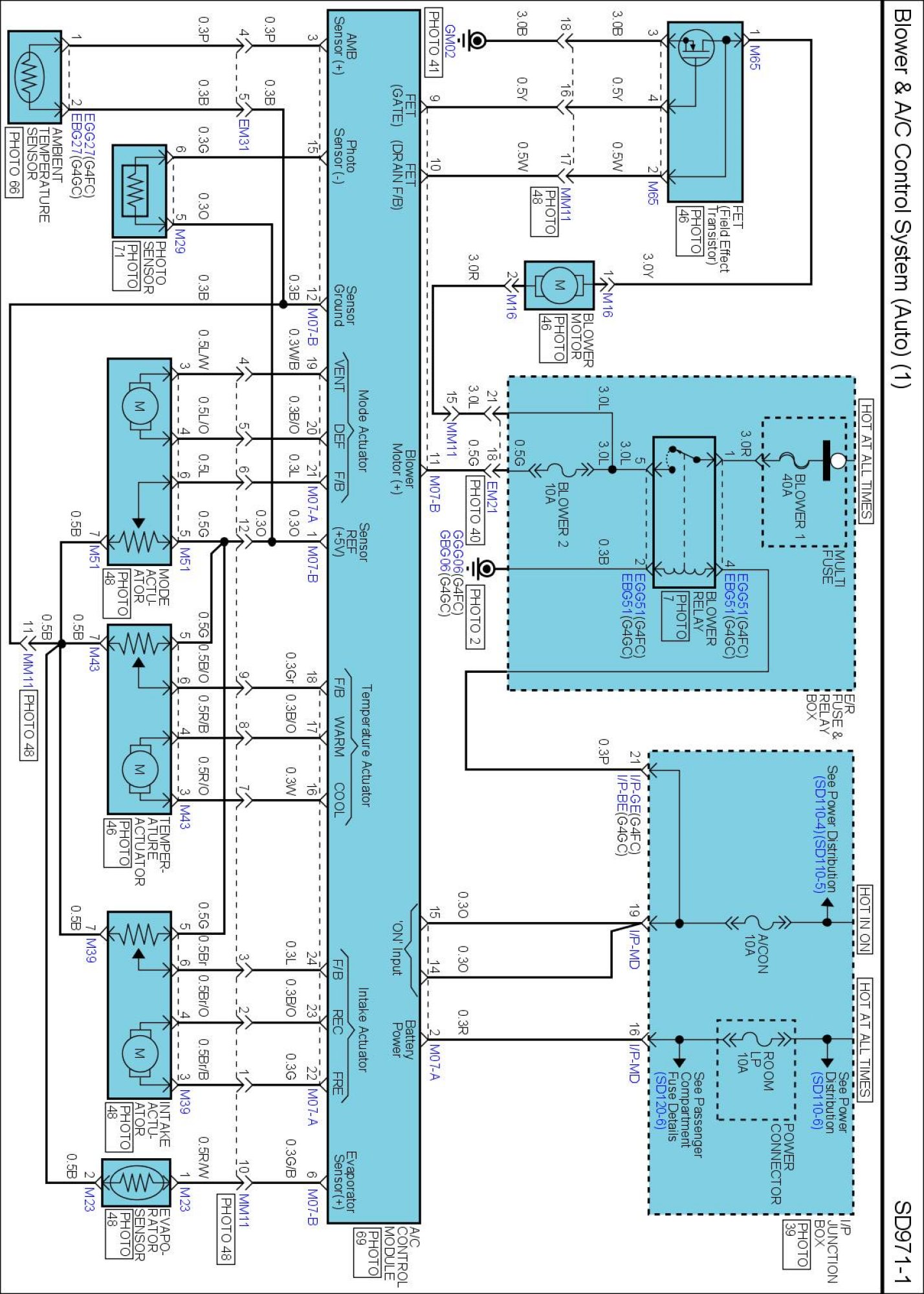

SD971-1 Blower & A/C Control System (Auto) (1):

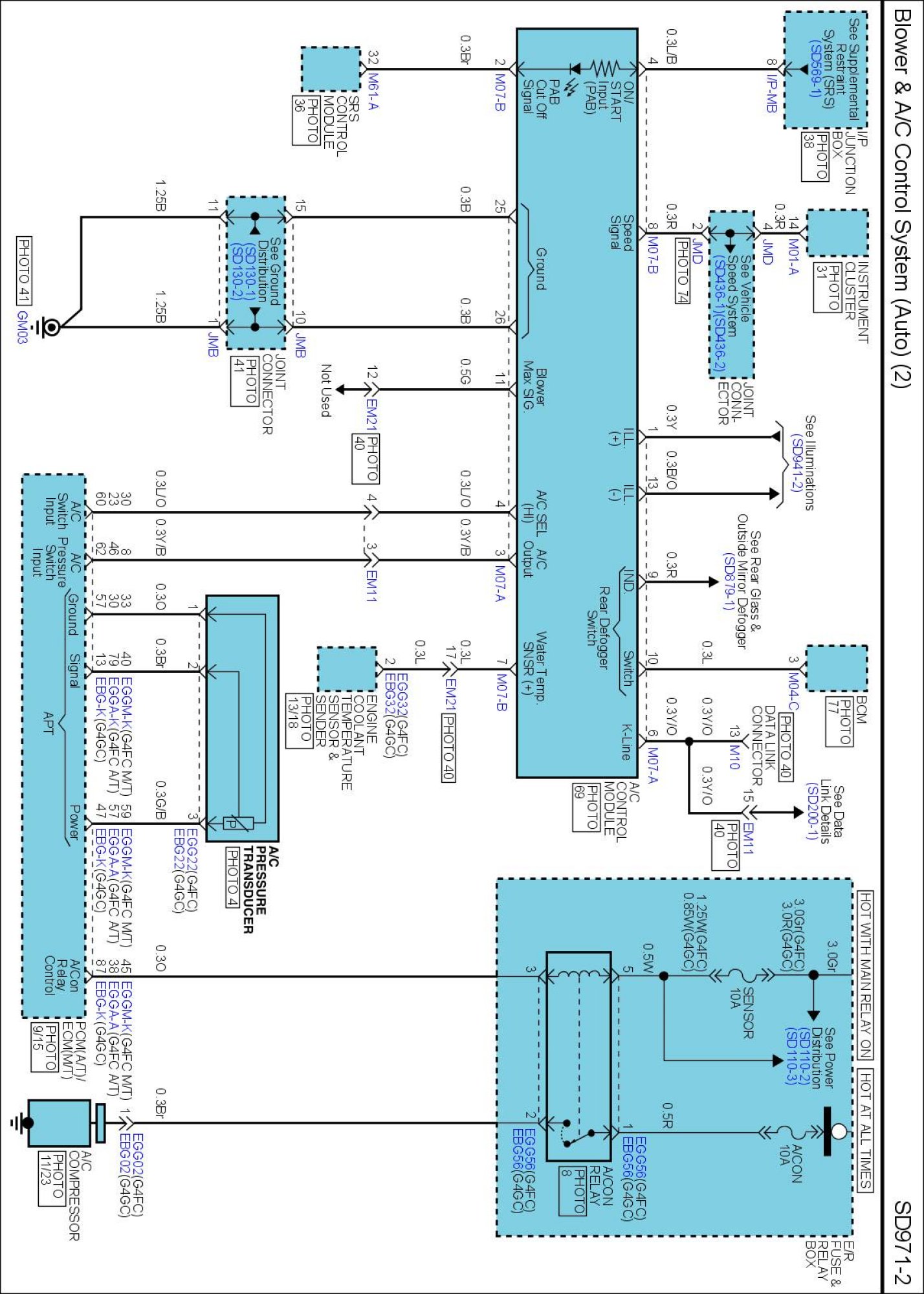

SD971-2 Blower & A/C Control System (Auto) (2):

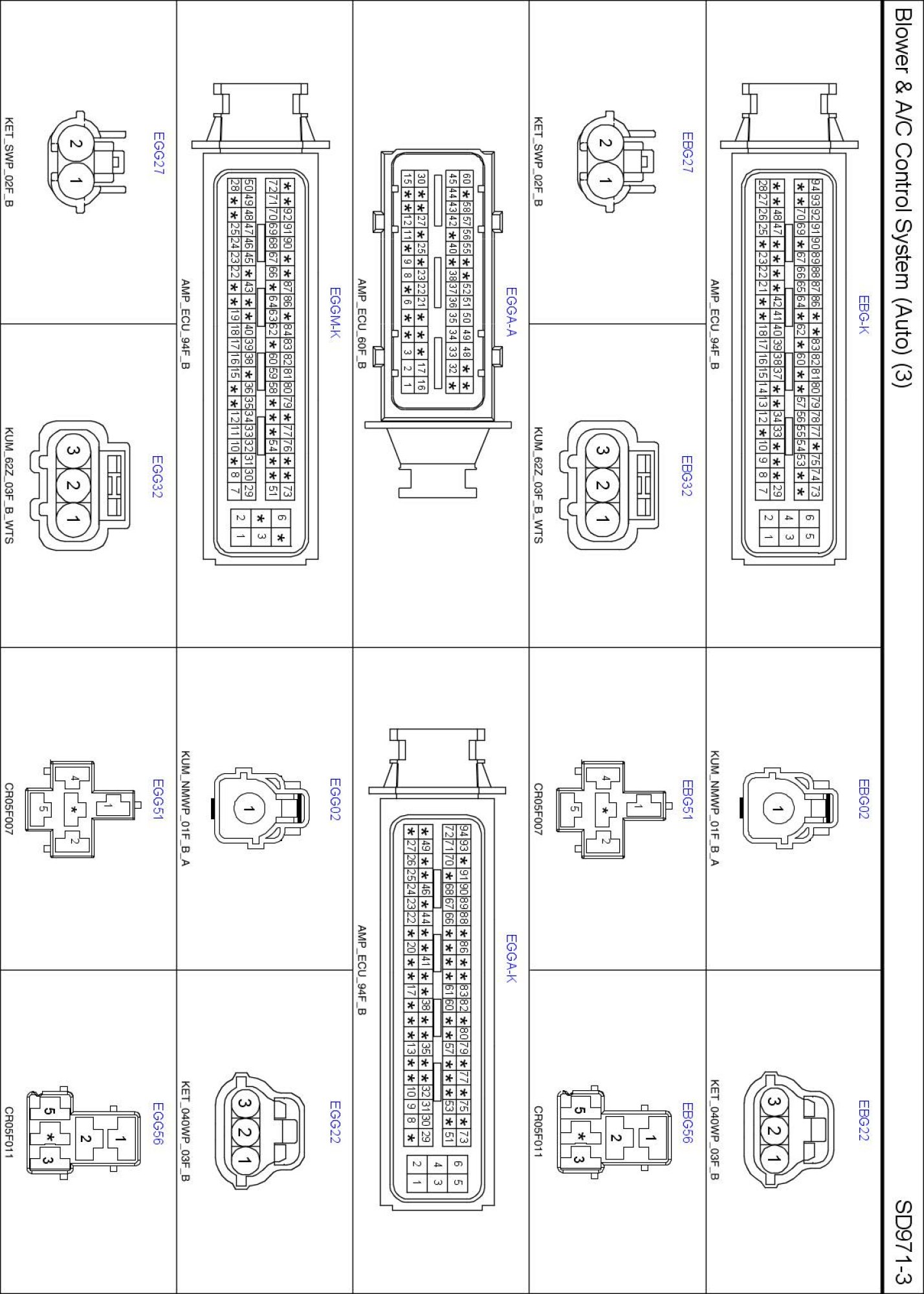

Blower & A/C Control System (Auto) (3) Connector Pin Outs:

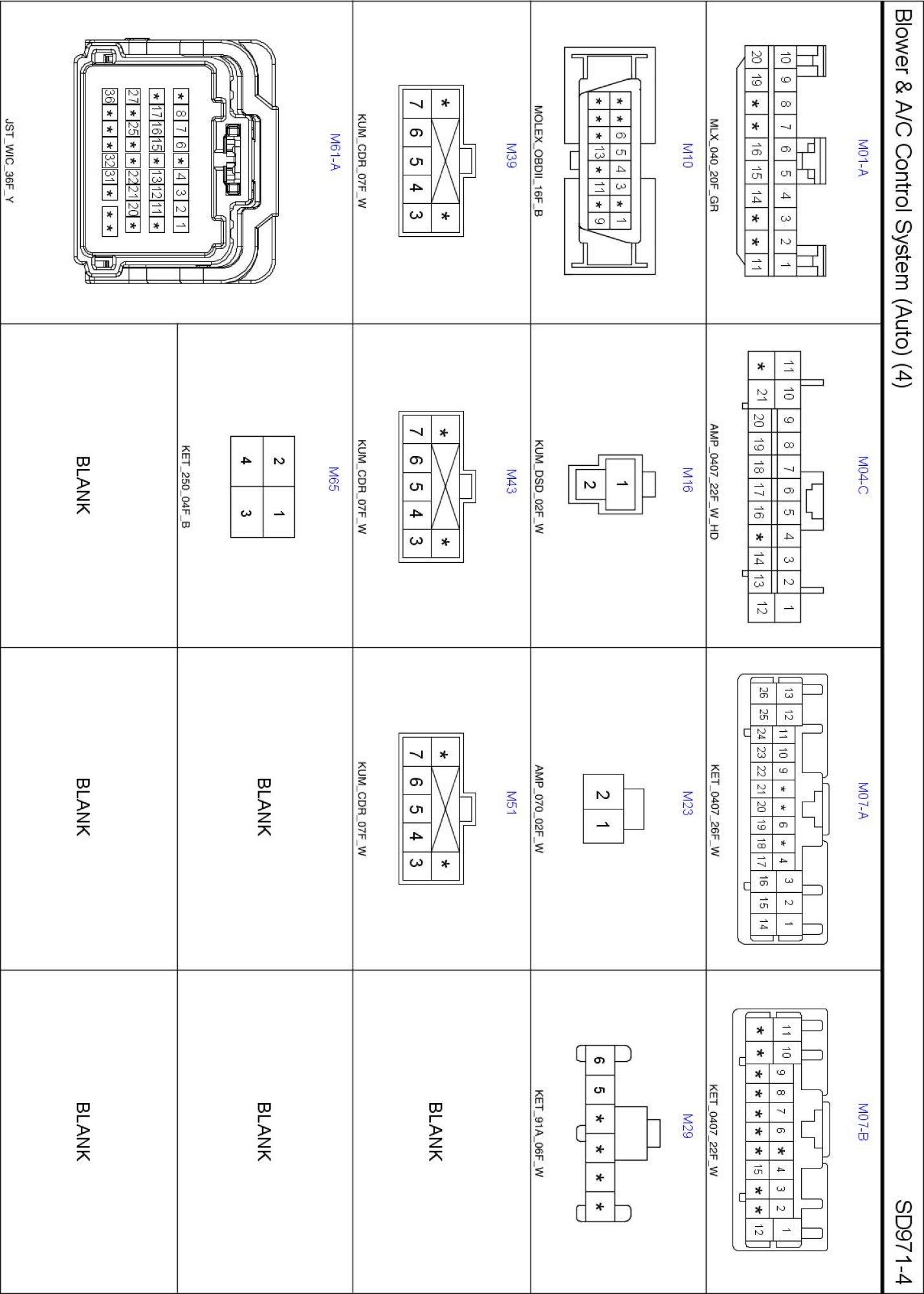

Blower & A/C Control System (Auto) (4) Connector Pin Outs:

Diagrams: Other diagrams referred to by SD number (i.e. SD130-4, etc.) within these diagrams can be found at Diagrams by Number Diagrams By Number

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found via the photo number at the vehicle level under Locations by Photo Number. Locations By Photo Number
