Front Seat

Replacement

Seat assembly replacement

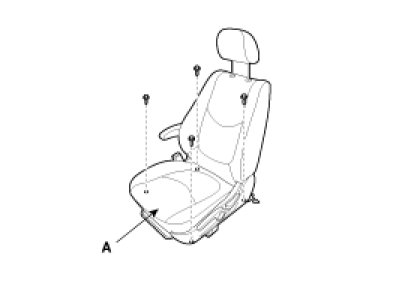

1. After loosening the seat assembly mounting bolts, remove the seat assembly (A).

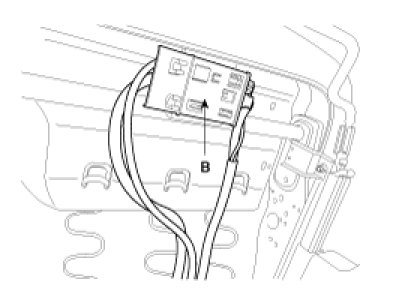

2. Disconnect the connectors (B), and remove the seat assembly.









CAUTION:
SEAT MOUNTING BOLT INSTALLATION PROCEDURE (manual seat only)
- Set the into the most rearward position. check then each slide is locked, and then tighten the front mounting bolt temporarily.
- Set the seat into most forward position. check that each slide is locked, and then tighten the rear mounting bolt completely.
- Set the seat into the most rearward position. check the front mounting bolt completely.
- Check that the seat operates to and fro smoothly and the locking portion locks properly.

Recliner Cover Replacement

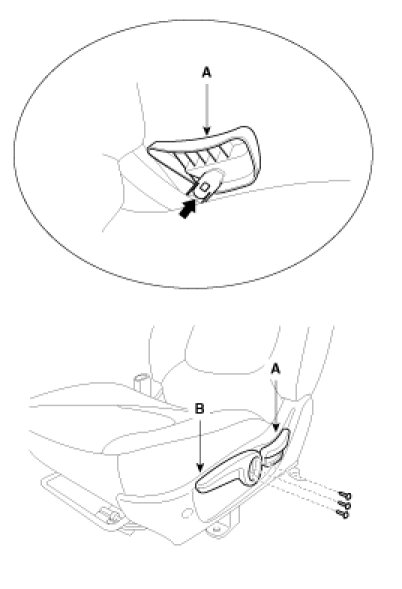

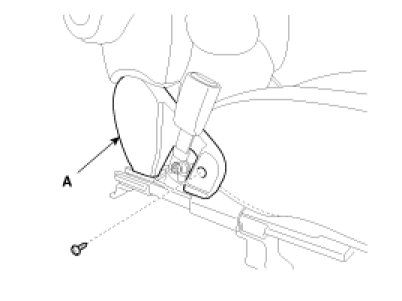

1. Remove the height adjuster knob (B) and recliner (A).

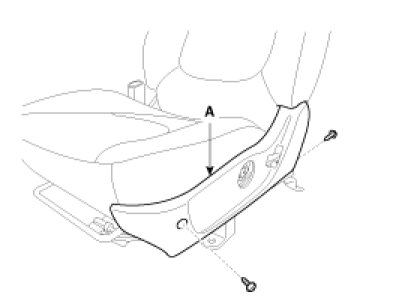

2. Loosen the recliner mounting screw and clip, remove the recliner cover (A).








3. Installation is the reverse of removal.

Seat Back Cover Replacement
1. Remove front seat assembly.
2. Remove the headrest.

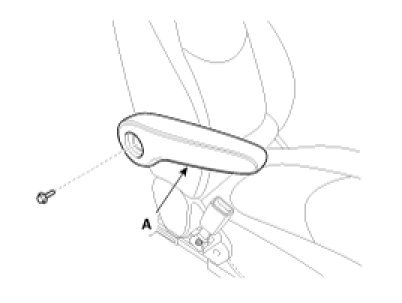

3. Loosen the armrest mounting bolt, remove the armrest (A).

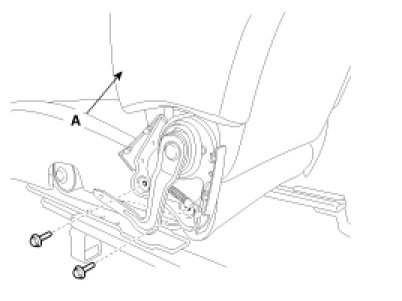

4. Remove the seat back assembly (A).

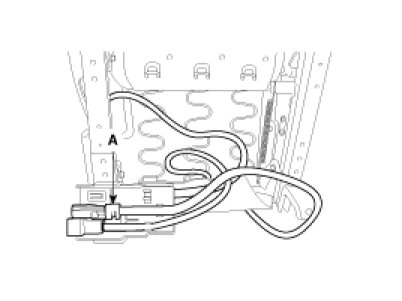

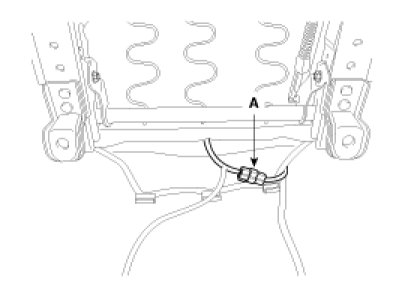

5. Disconnect the connector (A).




6. Disconnect the air bag wiring (A).

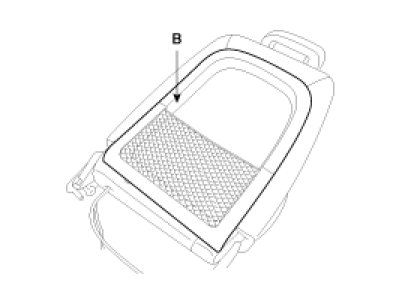

7. Remove the seat back panel (B).




8. Disconnect the protector (A) from the back frame.




9. Remove the headrest and headrest guide (A).

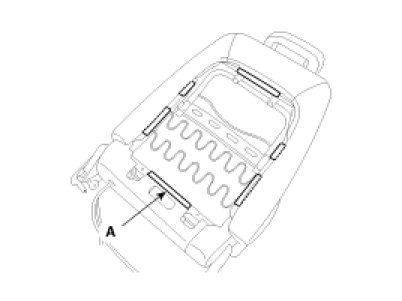

10. After removing the hogring clip on the front of seat back and remove the seat back cover (A).




11. Installation is the reverse of removal.

Seat Cushion Cover Replacement
1. Remove front seat assembly.
2. Remove the recliner cover.

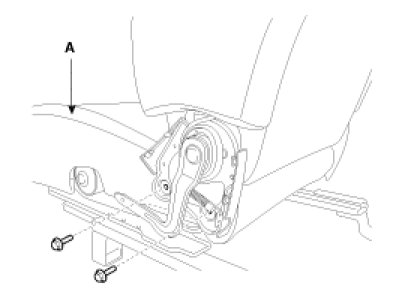

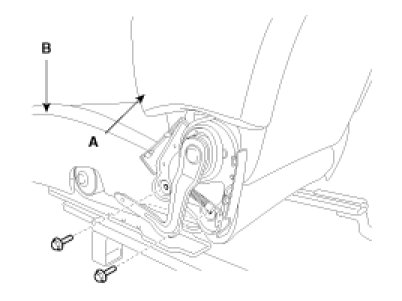

3. Remove the seat cushion assembly (A).

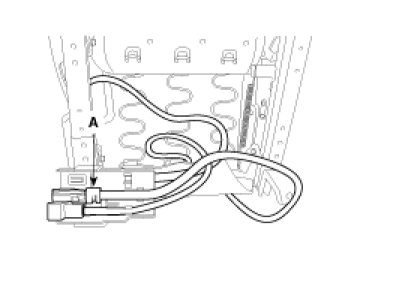

4. Disconnect the heater connector (A).




5. Disconnect the air bag wiring (A).




6. After disconnect the protector (A), then remove the seat cushion (B).

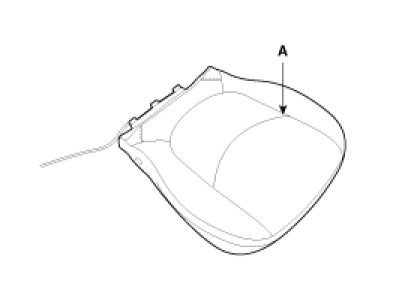

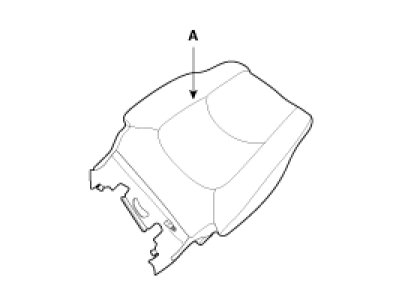

7. After removing the hogring clips on the front of seat cushion and remove the seat cushion cover (A).




8. Installation is the reverse of removal.

Seat Frame Replacement
1. Remove the following items.
A. Recliner cover.
B. Seat back panel.
C. Headrest guide.

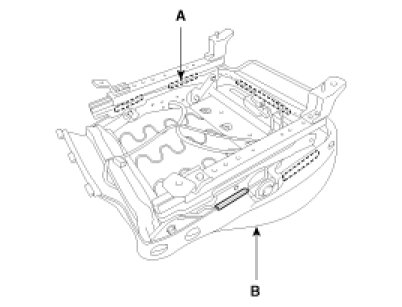

2. After loosening the mounting bolts, then disconnect the seat back frame (A) and seat cushion frame (B).

NOTE:
- Remove the side air bag for replacing side air bag installation seat.
- Be fore service, be fully aware of precautions and service procedure relevant to air bag




3. Remove the seat back cover.
4. Remove the seat cushion cover.
5. Installation is the reverse of removal.

Seat Cushion Heater Replacement
1. Remove the seat cushion cover.

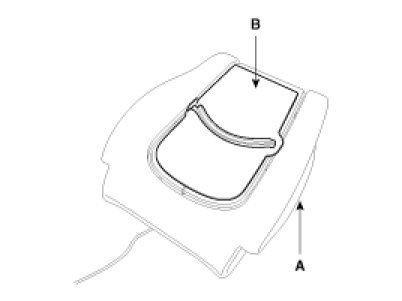

2. Cut the heater (B) attached to the pad (A), as shown in the picture.

CAUTION:
- Take care not to damage the slave pad.sponge.




3. Install the seat cushion cover.
A. Detach the paper from the back of the heater assembly.
B. Attach the heater to the main part of the sponge.

CAUTION:
- Be sure to match the heater with main appearance.

Seat Back Heater Replacement
1. Remove the seat back cover.
2. Cut the heater (B) attached to the pad (A), as shown in the picture.

CAUTION:
- Take care not to damage the slave pad.




3. Install the seat back cover.
A. Detach the paper from the back of the heater assembly.
B. Attach the heater to the main part of the sponge.

CAUTION:
- Be sure to match the heater with main appearance.
