Repair Procedures

Replacement

Front Pillar Trim Replacement

NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

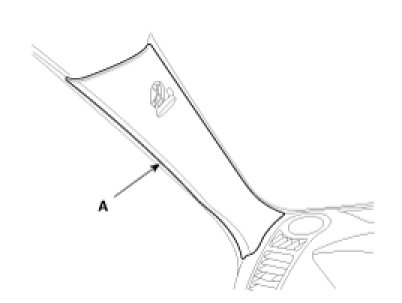

1. After loosening the mounting screw, remove the front pillar trim (A).




2. Installation is the reverse of removal.

NOTE:
- Replace any damage clips.

Door Scuff Trim Replacement

NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

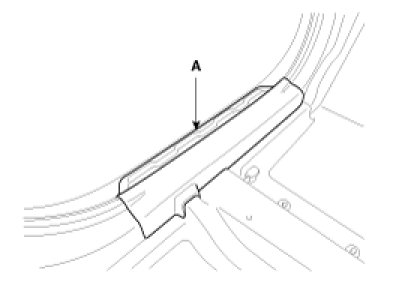

1. Remove the door scuff trim (A).








2. Installation is the reverse of removal.

NOTE:
- Replace any damage clips.

Center Pillar Trim Replacement

NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

1. Remove the front seat belt lower anchor.
2. Remove the front door scuff trim and rear door scuff trim.

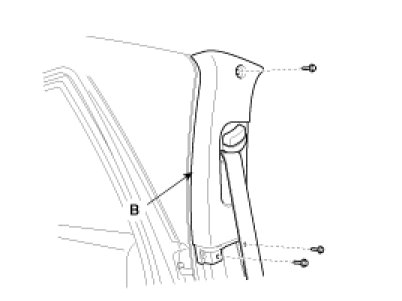

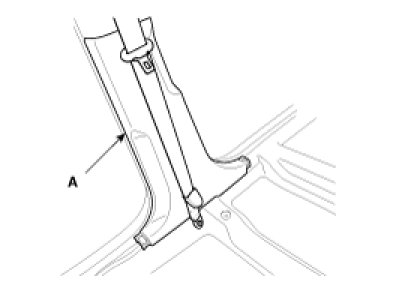

3. Remove the center lower trim (A).




4. Remove the center upper trim (B).




5. Installation is the reverse of removal.

NOTE:
- Replace any damage clips.

Rear Pillar Trim Replacement

NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

1. Remove the rear seat.
2. Remove the rear door scuff trim.

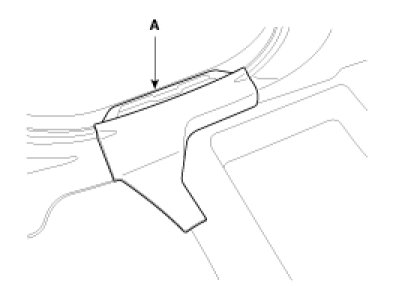

3. Remove the luggage side trim (A).




4. Remove the rear pillar trim (A).




5. Installation is the reverse of removal.

NOTE:
- Replace any damage clips.

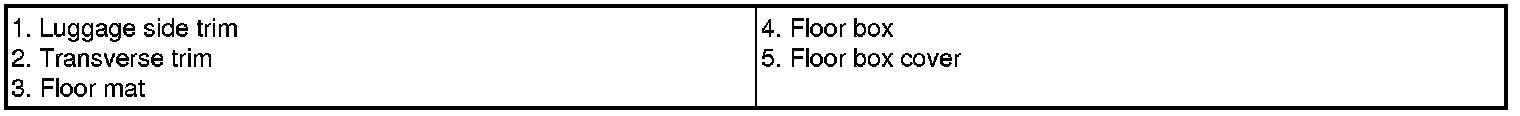

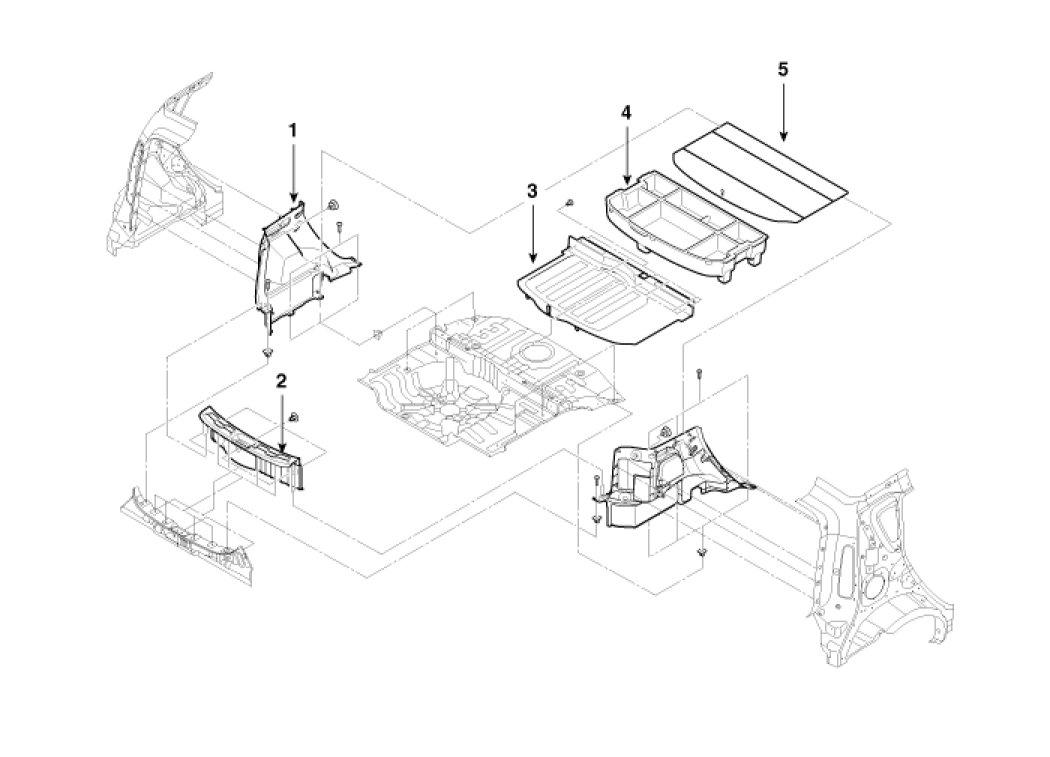

Luggage Side Trim Replacement

NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

1. Remove the rear seat.
2. Remove the rear seat belt lower anchor.

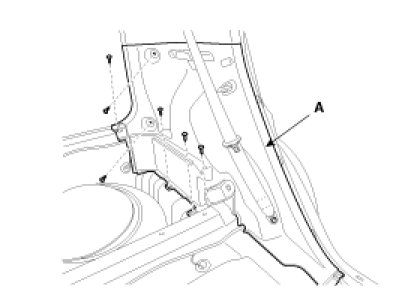

3. After loosening the mounting screws, remove the luggage side trim.
4. Installation is the reverse of removal.
