Repair Procedures

Replacement

Sunvisor Replacement

NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Put on gloves to protect your hands.

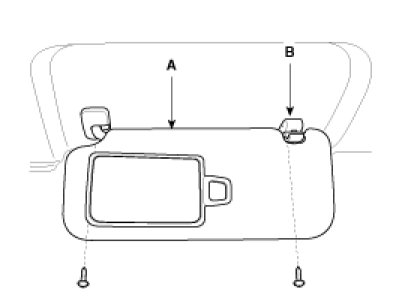

1. Remove the sunvisor
A. Remove the sunvisor (A) and holder (B) from each side.

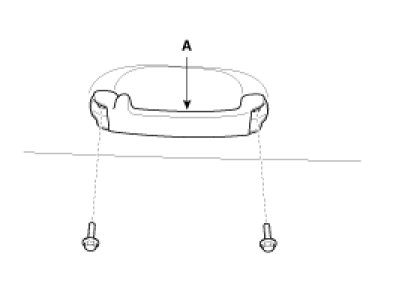

2. Remove the assist handle

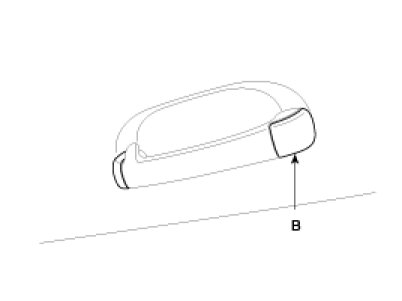

A. Remove the covers (B), and remove the screws, then remove the assist handle (A).

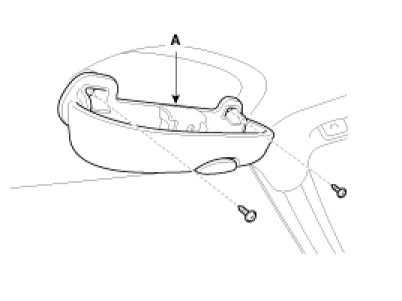

3. Remove the overhead console.

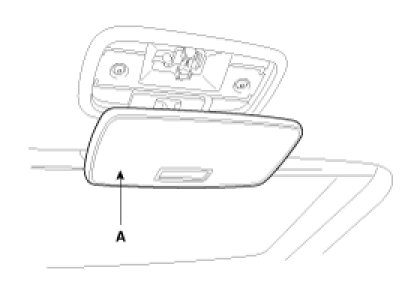

A. Remove the cover (A).




B. After loosening the overhead console mounting screws, remove the overhead console lamp (A).

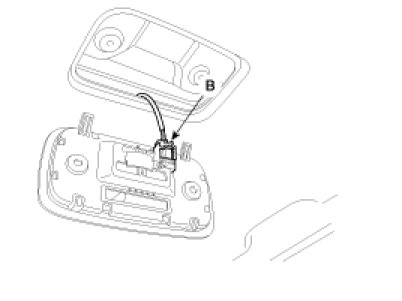

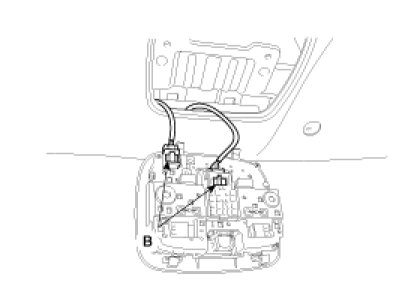

C. Disconnect the connector (B).

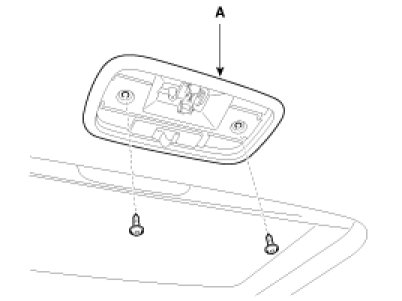

4. Remove the room lamp.
A. Remove the lens (A).




B. Remove the screws.
C. Pull out the room lamp (A).




D. Disconnect the connector (B).




5. After loosening the mounting screws, remove the sunglass case (A).

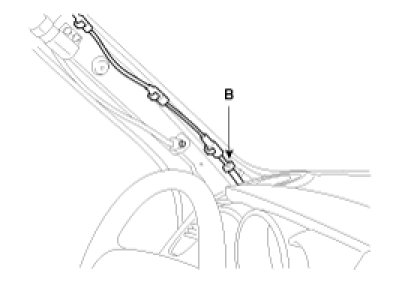

6. Disconnect the connector (B).

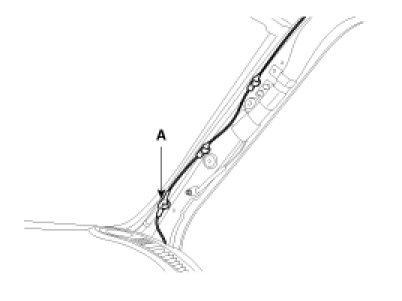

7. Disconnect the connector (A).




8. Disconnect the sunroof motor connector (B).

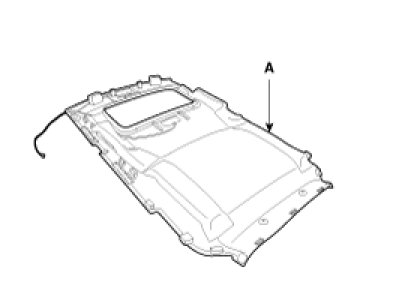

9. Remove the roof trim (A).




10. Installation is the reverse of removal.

NOTE:
- Replace any damage clips.
