Repair Procedures

Replacement

Cluster Fascia Replacement

NOTE:
- When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.

1. Tilt the steering column down.

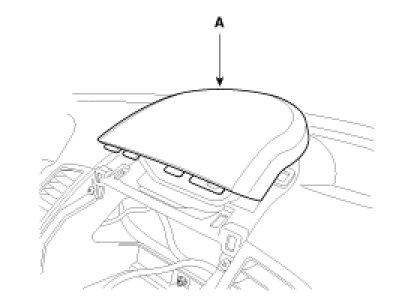

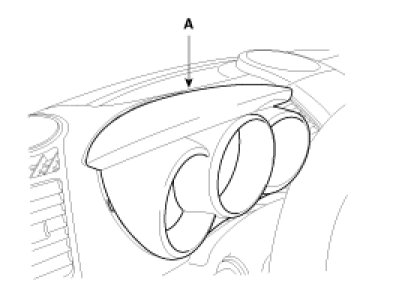

2. Remove the cluster fascia panel (A).

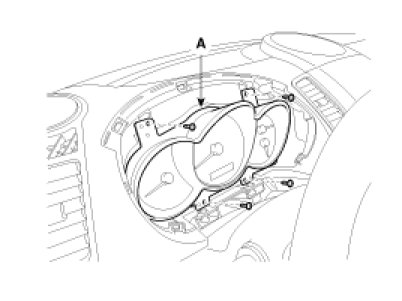

3. After loosening the mounting screws, remove the cluster fascia (A).

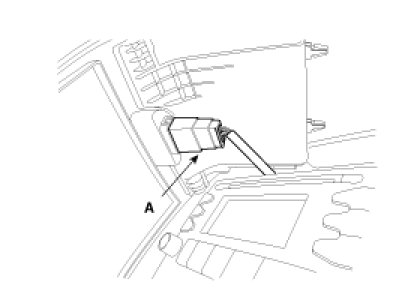

4. Disconnect the connector (A).




5. Installation is the reverse of removal.

NOTE:
- Make sure the connector is plugged in properly.

Center Fascia Panel Replacement

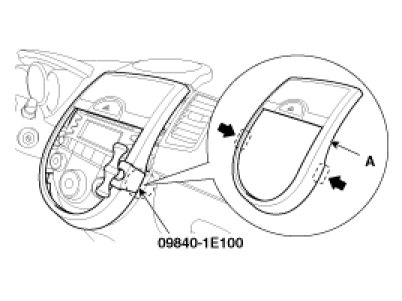

1. Put the SST (09840-1E100) into the space between the center fascia (A) and crash pad.

NOTE:
- Be care not to damage the center facia and crash pad.
- Put the SST into the area as indicated by the arrows.
- To prevent the scratch, apply protective tapes to the center fascia panel and its related parts.

2. Separate the center facia panel (A) from the crash pad by pulling the SST (09840-1E100).




3. Disconnect the connector (A).




4. Installation is the reverse of removal.

Lower Panel Replacement
1. After loosening the crash pad lower panel mounting screws, remove the lower panel (A).




2. Disconnect the connector (A).

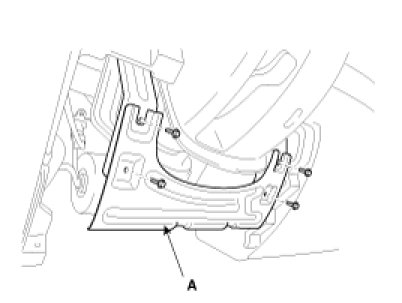

3. After loosening the mounting bolts, then remove the reinforcing panel (A).




4. Installation is the reverse of removal.

Audio Assembly Replacement
1. Remove the center fascia panel.

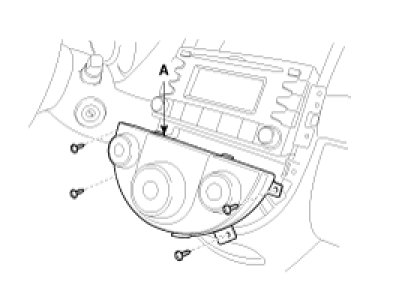

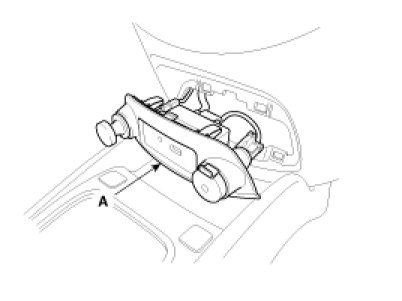

2. After loosening the heater control unit mounting screws, remove the heat control unit (A).




3. Disconnect the heat control unit connector (A).

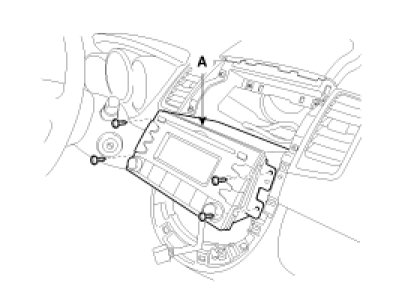

4. After loosening the audio assembly mounting screws, then remove the audio assembly (A).

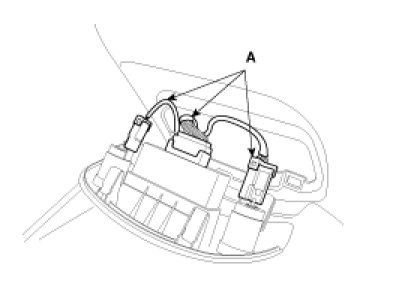

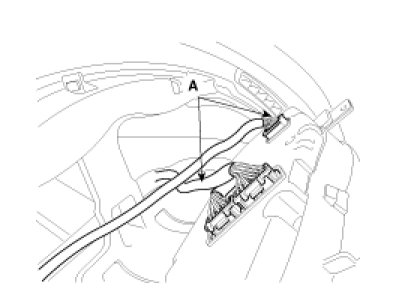

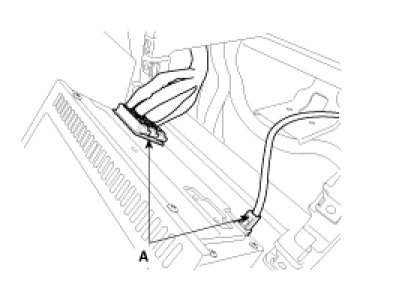

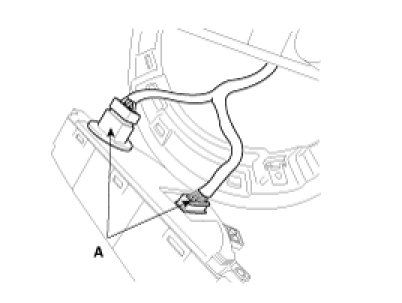

5. Disconnect the audio connectors (A).




6. Installation is the reverse of removal.

NOTE:
- Make sure the connector is plugged in properly.

Center Speaker Replacement

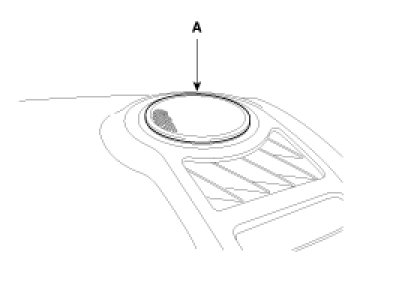

1. Remove the grill (A).

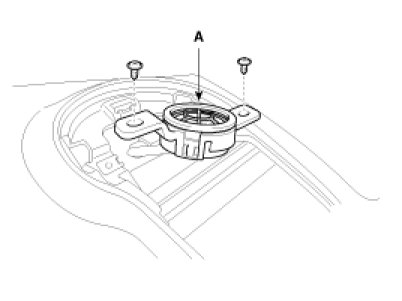

2. After loosening the mounting screws, remove the speaker (A).

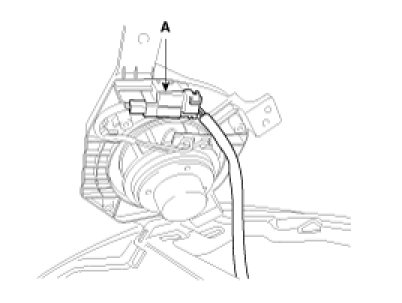

3. Disconnect the speaker connector (A).




4. Installation is the reverse of removal.

Speaker Replacement
1. Remove the grill (A).




2. Loosen the mounting screw.

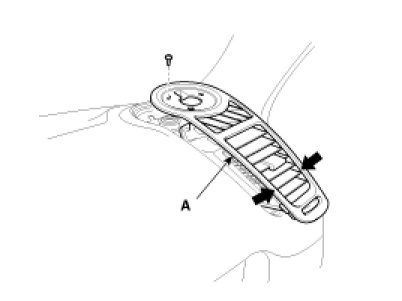

3. Insert the air vent remover (09840-1M000) into the air vent hole and pull the air vent (A) remover.





CAUTION:
- To prevent the damage of air vent, air vent remover should be aligned and hanged with the end of air vent.

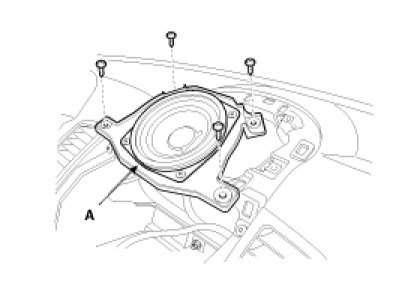

4. After loosening the mounting screws, remove the speaker (A).




5. Disconnect the speaker connector (A).




6. Installation is the reverse of removal.

Glove Box Replacement
1. Open the glove box.

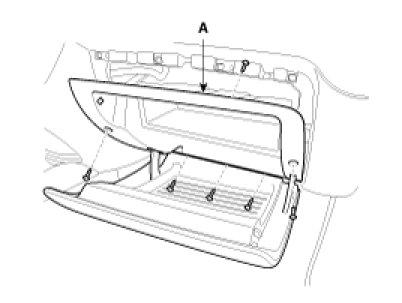

2. After loosening the mounting screws, remove the glove (A).




3. Installation is the reverse of removal.

Lower Tray Replacement
1. Remove the lower tray (A).




2. Disconnect the connector (A).




3. Installation is the reverse of removal.

Shroud Replacement

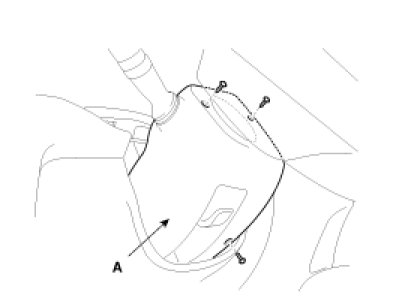

1. After loosening the mounting screws, remove the shroud (A).




2. Installation is the reverse of removal.

Crash Pad Replacement

NOTE:
- When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.

1. Remove the following items.
A. Front seat
B. Cluster fascia panel, cluster
C. Audio assembly
D. Glove box
E. Crash pad side cover
F. Front pillar trim
G. Cowl side trim

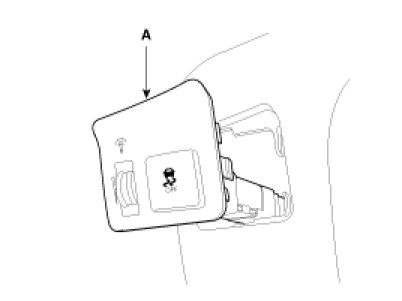

2. Remove the switch assembly (A).

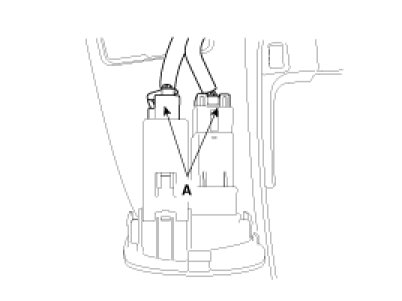

3. Disconnect the connector (A).

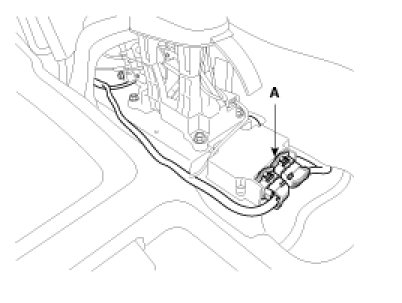

4. Disconnect the passenger`s air bag connector (A).

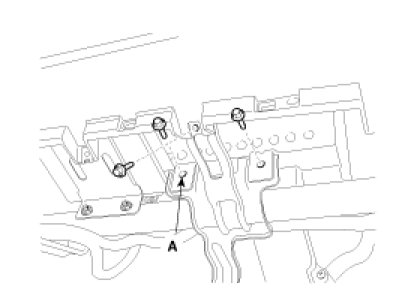

5. Remove the passenger's air bag mounting bolt (A).




6. Disconnect the connector (A).

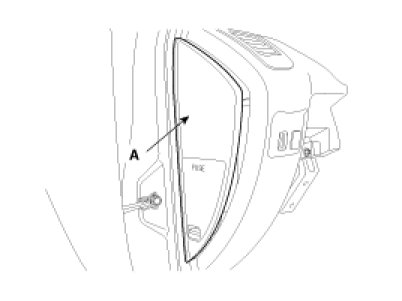

7. Remove the crash pad side pad (A).

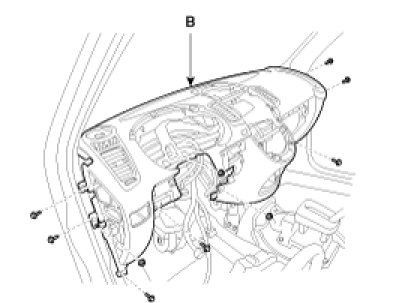

8. Loosen the bolts and nuts, then remove the crash pad (B).




9. Installation is the reverse of removal.

NOTE:
- Make sure the crash pad fits onto the guide pins correctly.
- Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
- Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
- Enter the anti- theft code for the radio, then enter the customer`s radio station presets.

Cowl Cross Bar Replacement
1. Remove the front seat.
2. Remove the floor console.
3. Remove the crash pad.
4. Remove the cowl top cover.
5. Remove the steering column.
6. Disconnect the driver's connectors.

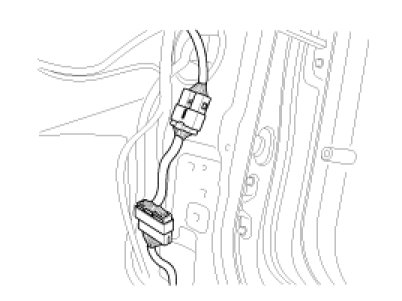

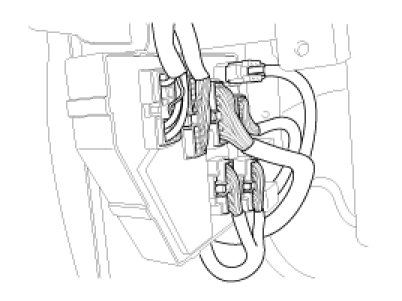

7. Disconnect the passenger's connectors.

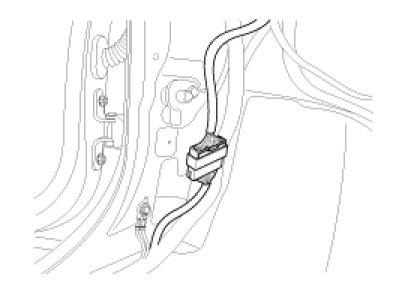

8. Disconnect the connectors.

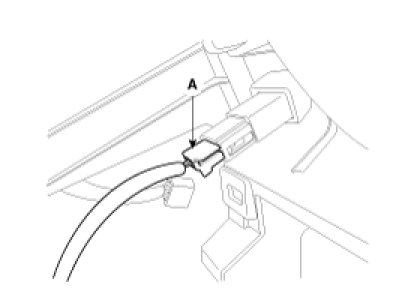

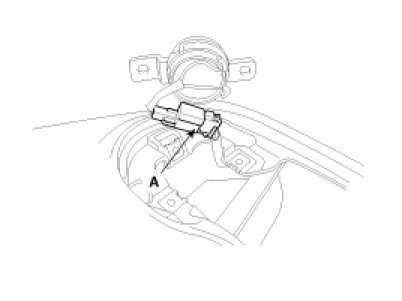

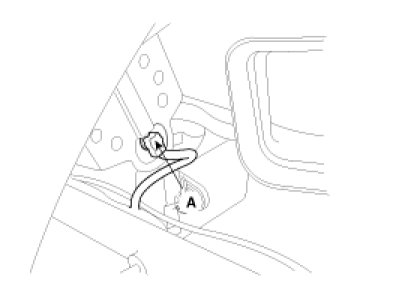

9. Disconnect the air bag connector (A).

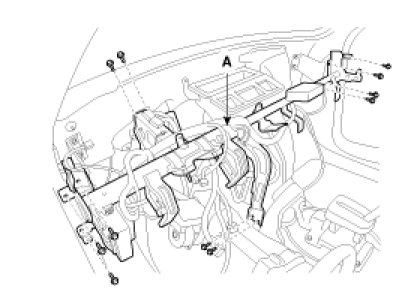

10. After loosening the mounting bolts, remove the cowl cross bar (A).




11. Installation is the reverse of removal.
