Repair Procedures

Removal

Front Speaker
1. Remove the front door trim.

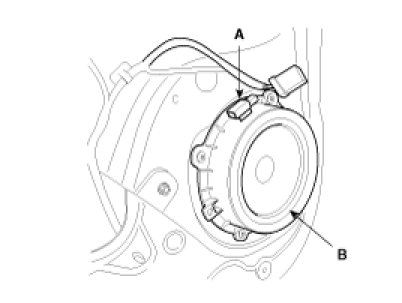

2. Remove the front speaker (B) after removing 4 rivets and connector (A).





Rear Speaker
1. Remove the rear door trim.

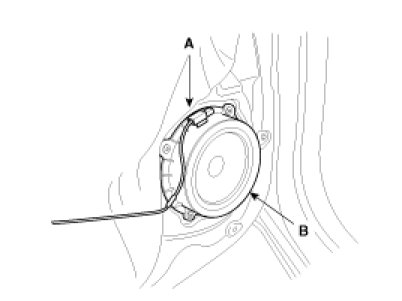

2. Remove the rear speaker (B) after removing 4 rivets and connector (A).





Tweeter Speaker

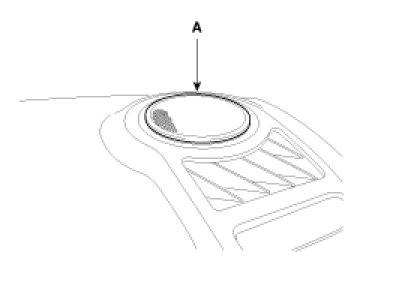

1. Remove the speaker grill (A) and screw (1EA).

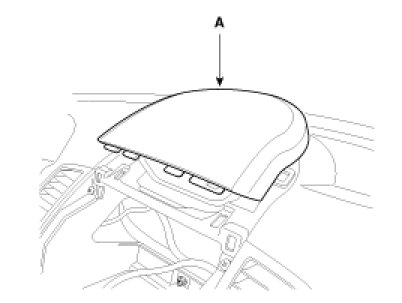

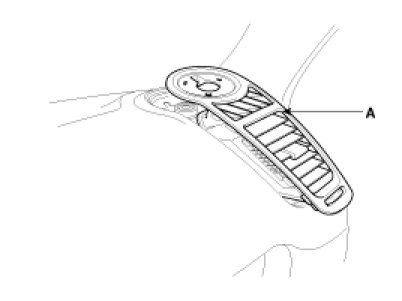

2. Remove the tweeter speaker cover (A).





NOTE:
- To prevent the damage to the air vent, the 09840-1M100 Air Vent Remover should be used to grab the sides of the air vent.

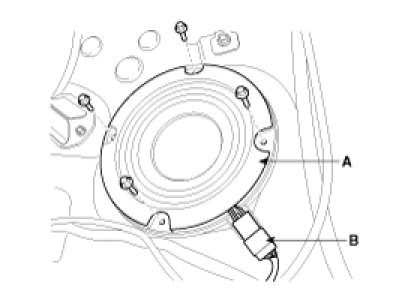

3. Remove the tweeter speaker (A) after removing the screw (2EA) and connector (B).









Center Speaker
1. Disconnect the negative (-) battery terminal.

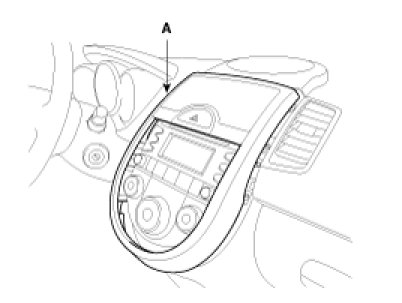

2. Remove the crash pad center facia panel (A).





3. Remove the center speaker grill (A).

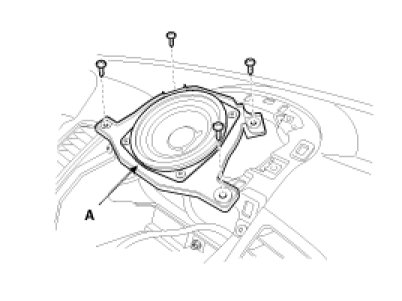

4. Remove the center speaker (A) after removing the screws (4EA) and connector (B).









Woofer Speaker
1. Remove the right luggage side trim and disconnecting the connector.

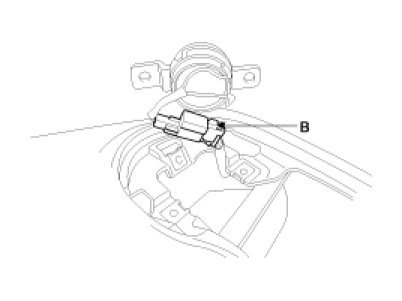

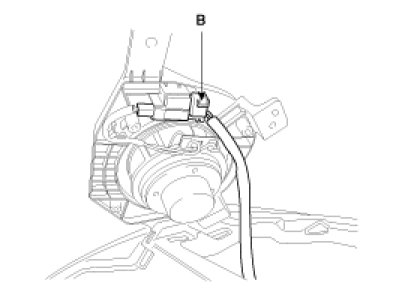

2. Remove the woofer speaker (A) after removing the screws (4EA) and connector (B).






Installation

Front Speaker
1. Install the front speaker.
2. Install the front door trim.

Rear Speaker
1. Install the rear speaker.
2. Install the rear door trim.

Tweeter Speaker
1. Install the tweeter speaker after connecting the tweeter speaker connector.
2. Install the tweeter speaker cover and grill.

Center Speaker
1. Install the center speaker and grill.
2. Install the crash pad center facia panel.
3. Connect the negative (-) battery terminal.

Woofer Speaker
1. Install the woofer speaker.
2. Install the right side trunk trim.

Inspection

Speaker
1. Troubleshooting for Speaker
(1) Basic inspection of speaker
Inspect the sound from speaker. Make sure the electrical connector is connected and the speaker mounting screws are tight to remove vibration.

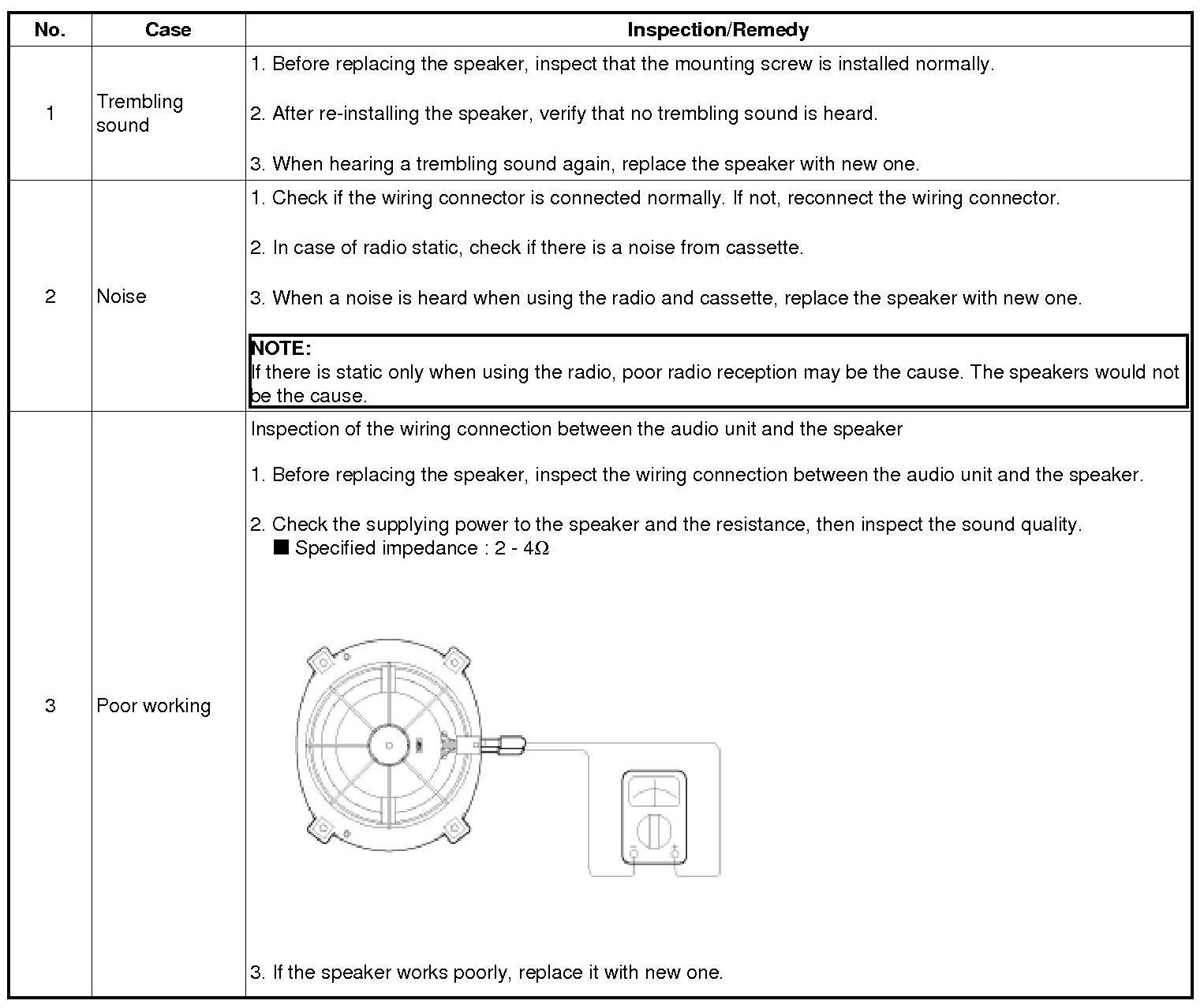

(2) Case Troubleshooting






CAUTION:
- Use care when dealing with speakers.
- Speakers can be damaged by: Impact by droping or hitting the speaker.
- Keep liquids away from the speaker
- Use caution - diaphragm is paper which is easy torn by impact and external force.
- Speakers are not covered by the manufacturer's warranty if the audio system is modified in any way.

Mood lamp switch

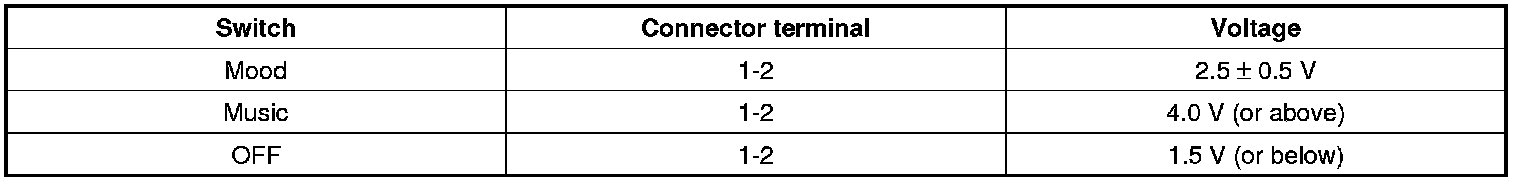

1. Check the mood lamp switch (A) for voltage between connector terminals in each switch position.









2. Check for continuity between the terminals.
