W/Harness Inspection

P0765 Shift Control Solenoid Valve \'D\' (Over Drive Clutch Solenoid)

Inspection/Repair - W/Harness Inspection

Terminal and Connector Inspection

1. Many malfunctions in the electrical system are caused by poor harness and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
3. Has a problem been found?






Power Circuit Inspection

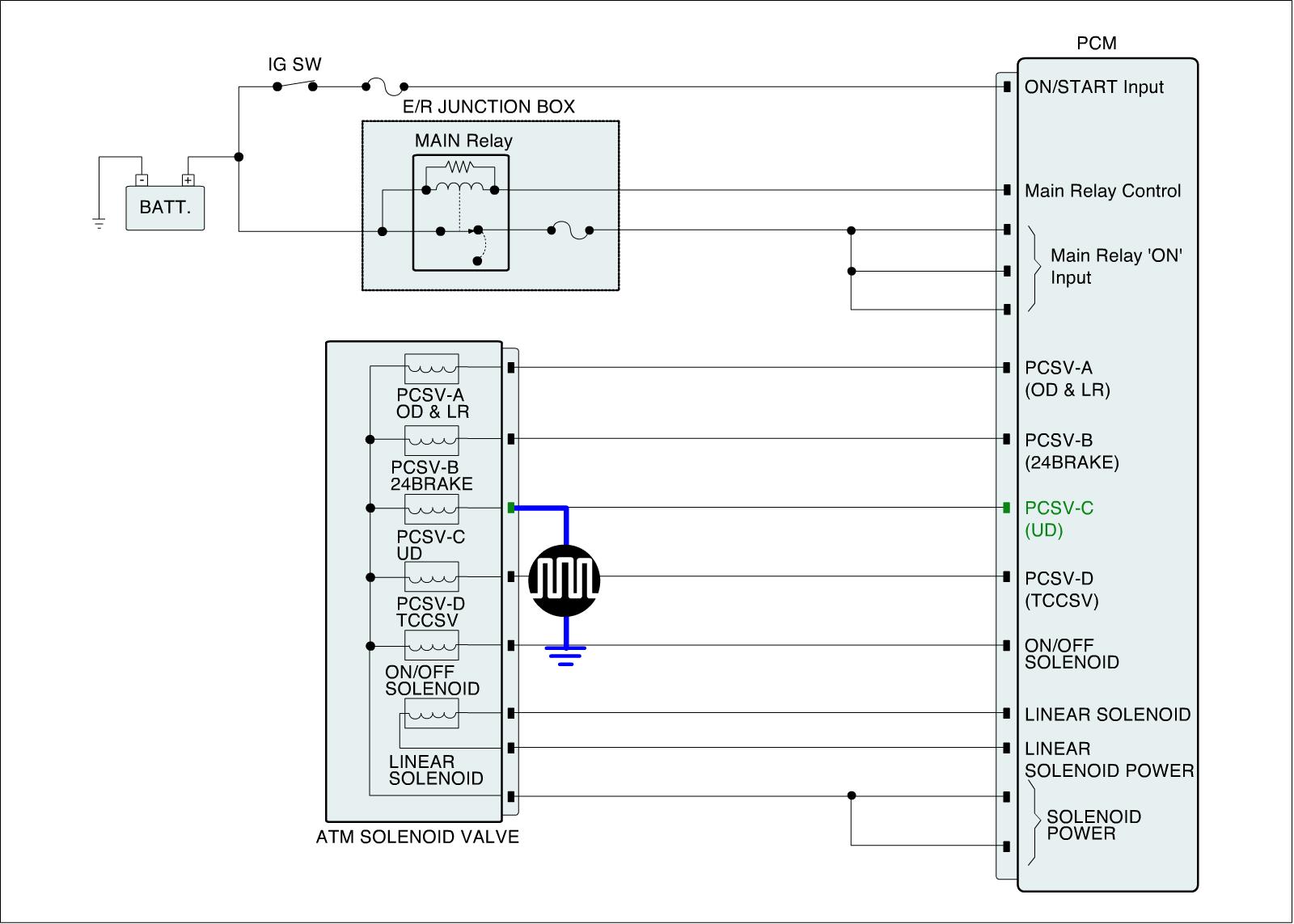

1. Connect "A/T SOLENOID VALVE" connector and install device for measuring wave form
2. Turn on the Engine and operate Damper clutch

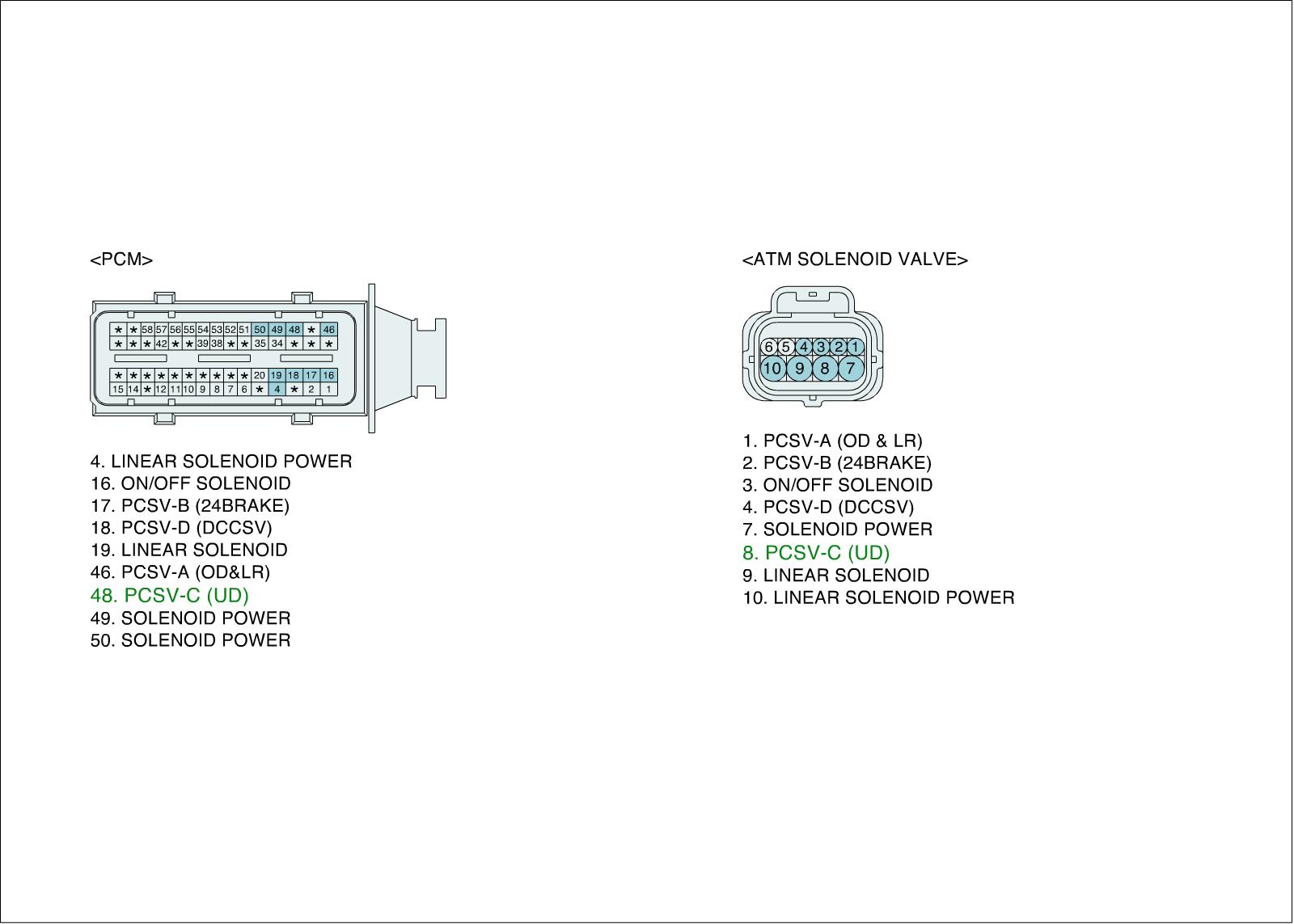

3. Measure wave form between "PCSV-C (UD)" terminal of the sensor harness connector and chassis ground.

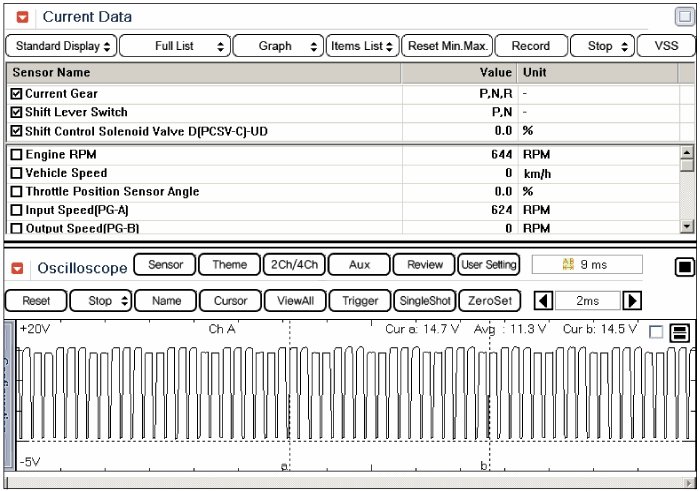

Wave form of UD SOLENOID




4. Is measured normally operating wave form?






Signal Circuit Inspection

1. Check signal circuit open inspection
(1) Ignition "OFF".
(2) Disconnect "A/T SOLENOID VALVE" connector and "PCM/TCM" connector
(3) Measure resistance between "PCSV-C (UD)" terminal of the ATM SOLENOID VALVE harness connector and "PCSV-C (UD)" terminal of the PCM/TCM harness connector

Specification: approx. 0 Ohms








(4) Is resistance within specifications?





2. Check signal circuit short inspection
(1) Ignition "OFF"".
(2) Disconnect "A/T SOLENOID VALVE" connector and "PCM/TCM" connector

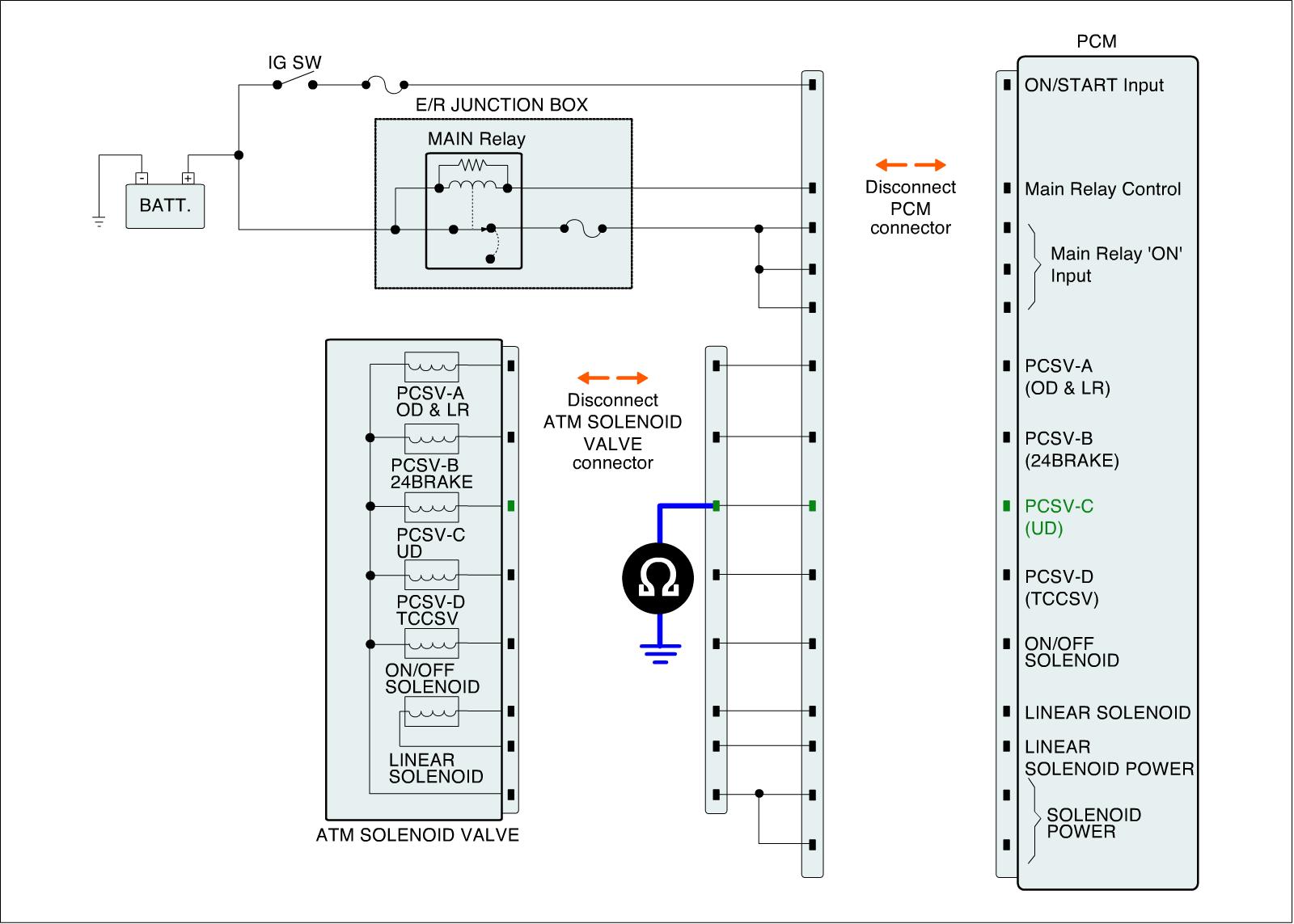

(3) Measure resistance between "PCSV-C (UD)" terminal of the ATM SOLENOID VALVE harness and chassis ground.

Specification: Infinite








(4) Is resistance within specifications?
