Scantool Diagnostics

P0760 Shift Control Solenoid Valve \'C\' (2nd Brake Solenoid)

Scantool Diagnostics - Monitor Scantool Data

Monitor GDS Data

1. Connect GDS to data link connector (DLC)
2. Engine "ON".
3. Monitor the "PCSV-B (2-4SOLENOID VALVE)" parameter on the GDS
4. Shift gear at each position.

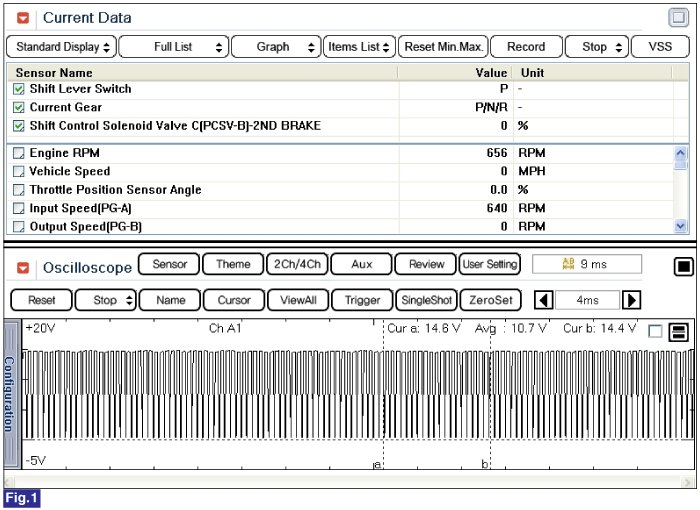

Fig 1) "P, N"
Fig 2) "R"

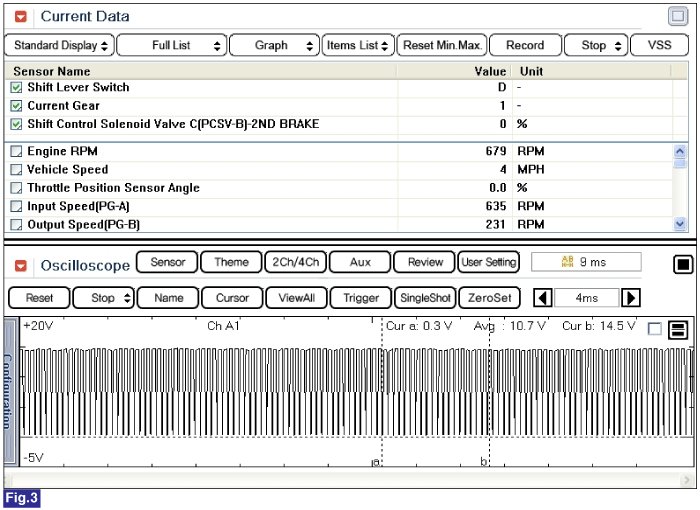

Fig 3) "D Range 1st" gear

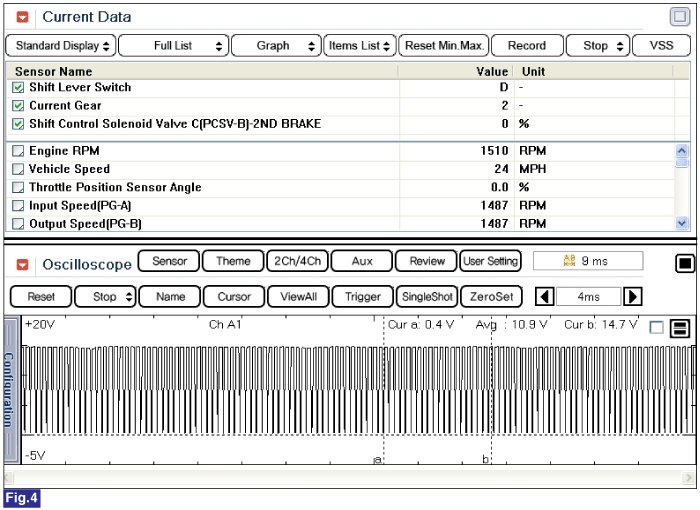

Fig 4) "2nd" gear

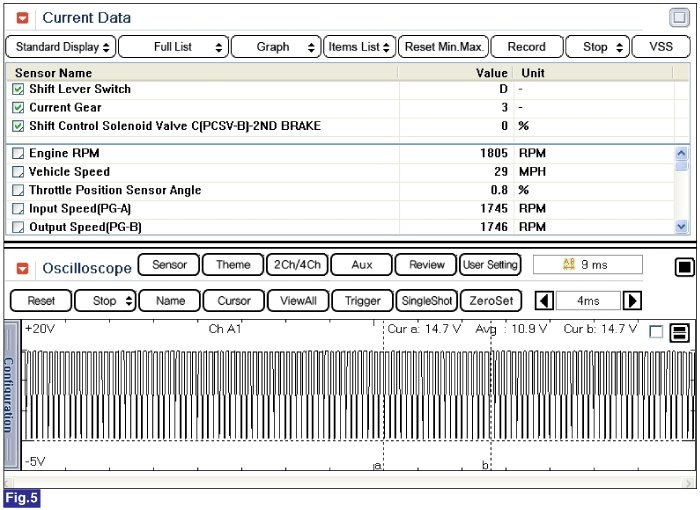

Fig 5) D Range"3rd" gear

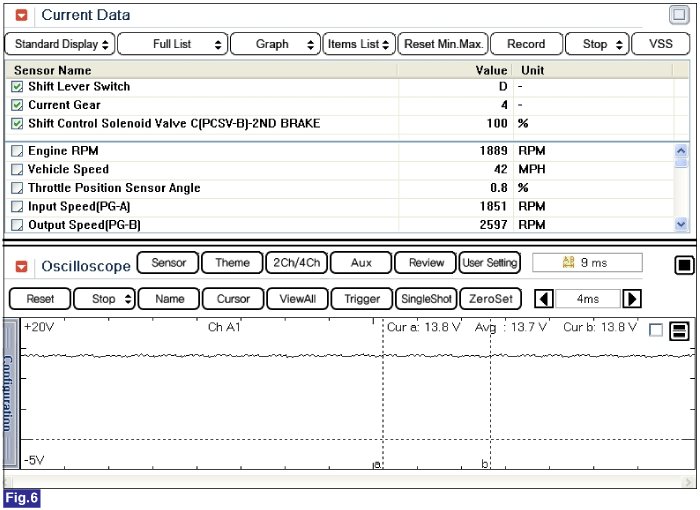

Fig 6) "D Range 4th" gear

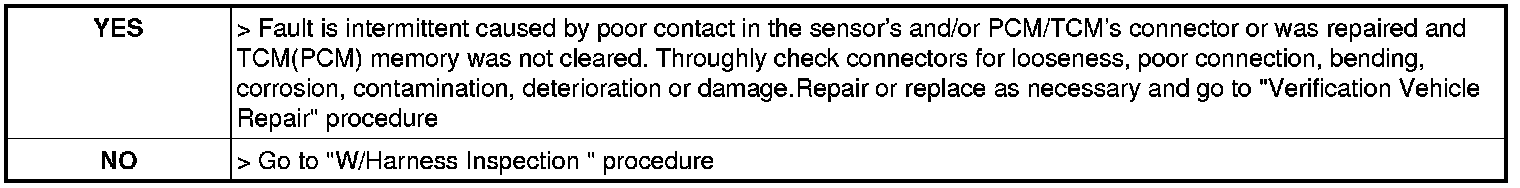

5. Does "PCSV-B (2-4SOLENOID VALVE)" follow the referance data?
