Scantool Diagnostics

P0748 Pressure Control Solenoid Valve (VFS) \'A\' Electrical

Scantool Diagnostics - Monitor Scantool Data

Monitor GDS Data

1. Connect scantool to data link connector (DLC)
2. Engine "ON".
3. Monitor the "VF SOL. VALVE" parameter on the GDS.
4. Shift gear at each position.

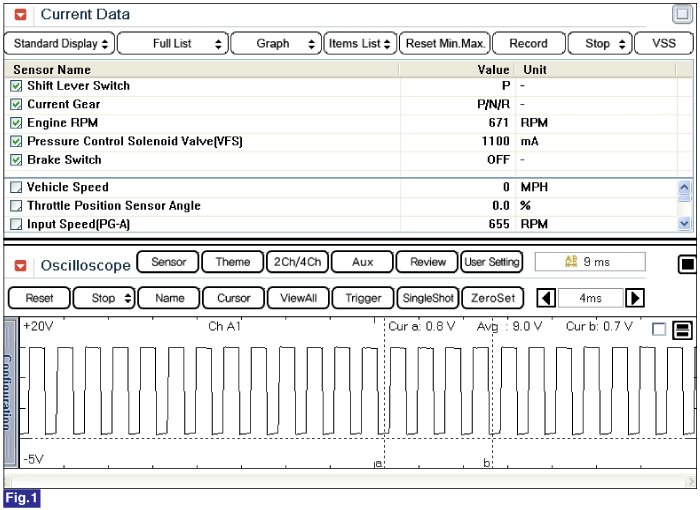

Fig 1) P, N Range
Fig 2) ""R" Range

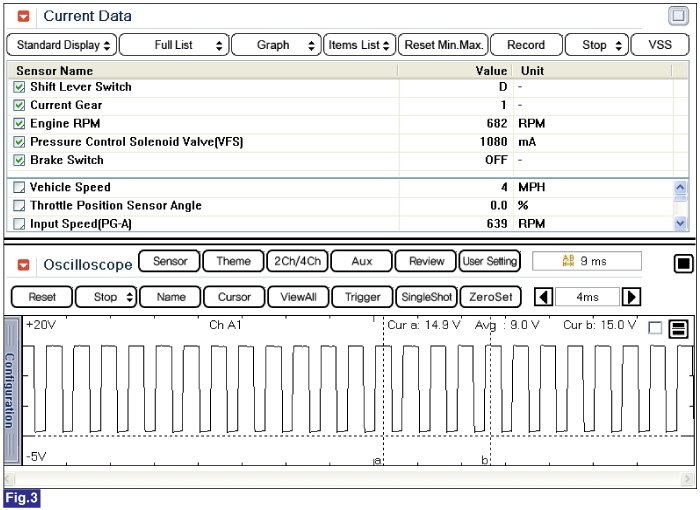

Fig 3) "D"1 Range Brake "OFF"

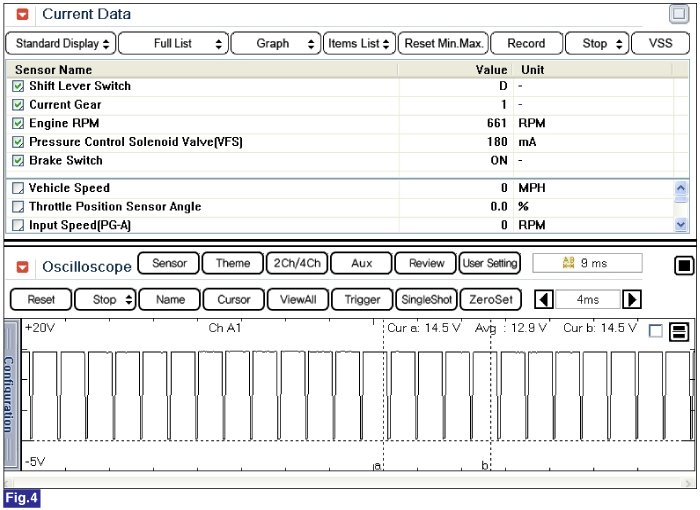

Fig 4) "D"1 Range Brake "ON"

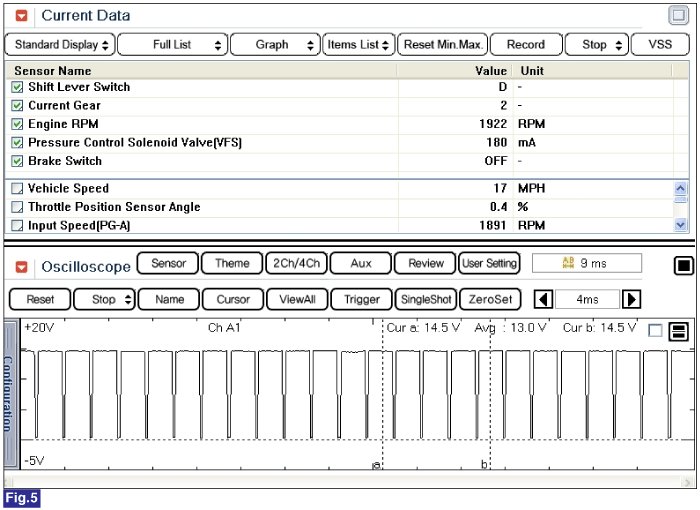

Fig 5) "D"2 Range

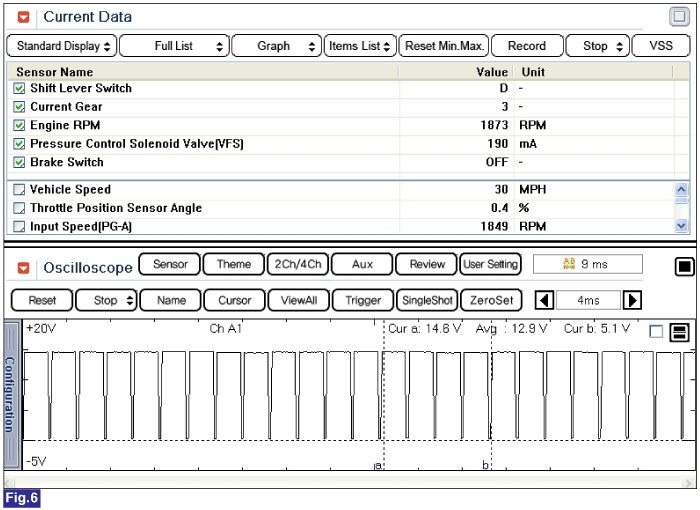

Fig 6) "D"3 Range
Fig 7)"D"4 Range
5. Does "VF SOL DUTY " follow the referance data?
