P0743 Torque Converter Clutch Circuit Electrical

Scantool Diagnostics - Monitor Scantool Data

Monitor GDS Data

1. Connect scantool to data link connector (DLC)
2. Engine "ON".
3. Select "D RANGE" and drive vehicle.
4. Monitor the "TORQUE CONVERTER (DAMPER) CLUTCH" parameter on the GDS.

Specification : TCC SOL. DUTY > 30% In that condition TCC SLIP<100 RPM

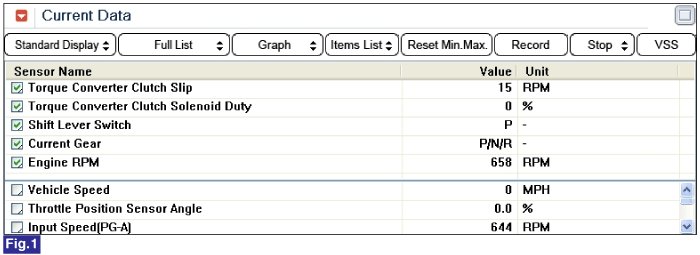

Fig 1) P, N Range

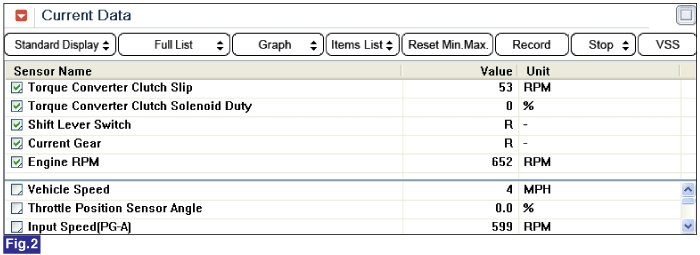

Fig 2) "R" Range

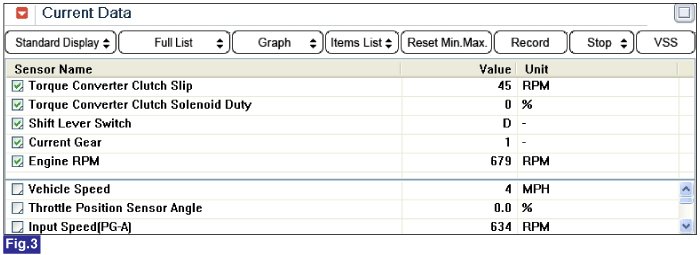

Fig 3) "D"1 Range
Fig 4) "D"2 Range

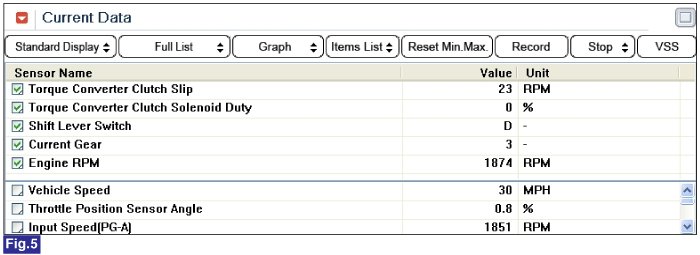

Fig 5) "D"3 Range
Fig 6) "D"4 Range
5. Are "TCC SOLENOID DUTY and TCC SLIP" within specifications?
