Scantool Diagnostics

P0722 Output Speed Sensor Circuit No Signal

Scantool Diagnostics - Monitor Scantool Data

Monitor GDS Data

1. Connect GDS to data link connector (DLC)
2. Engine "ON".
3. Monitor the "OUTPUT SPEED SENSOR" parameter on the GDS.
4. Drive the vehicle.

Specification : Increasing Gradually

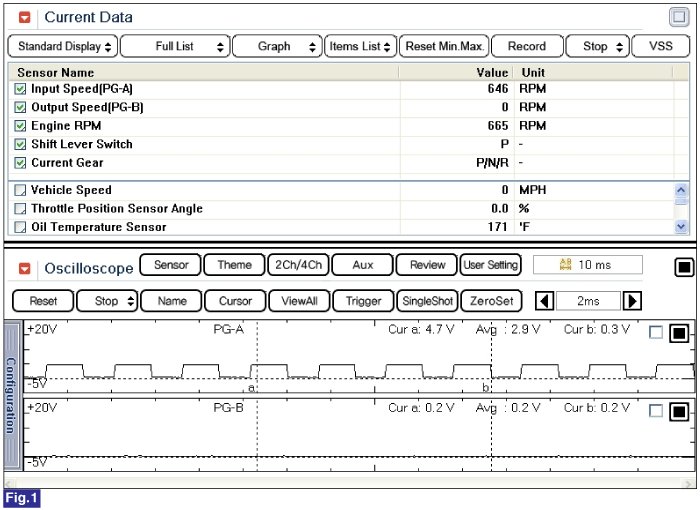

Fig 1) P, N Range

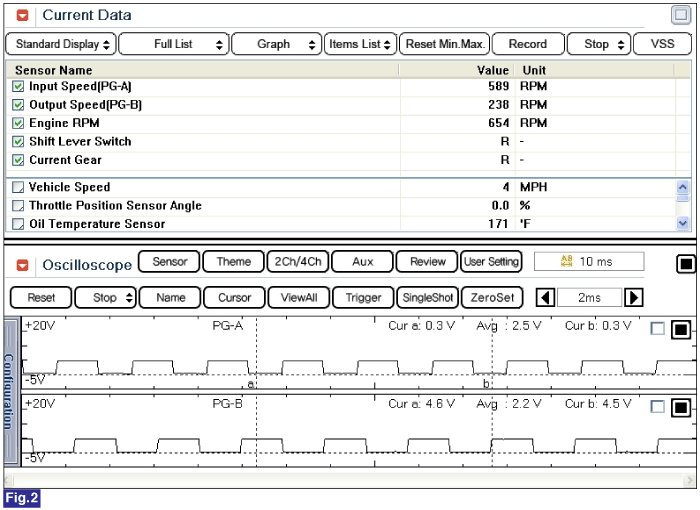

Fig 2) "R" Range
Fig 3) "D"1 Range

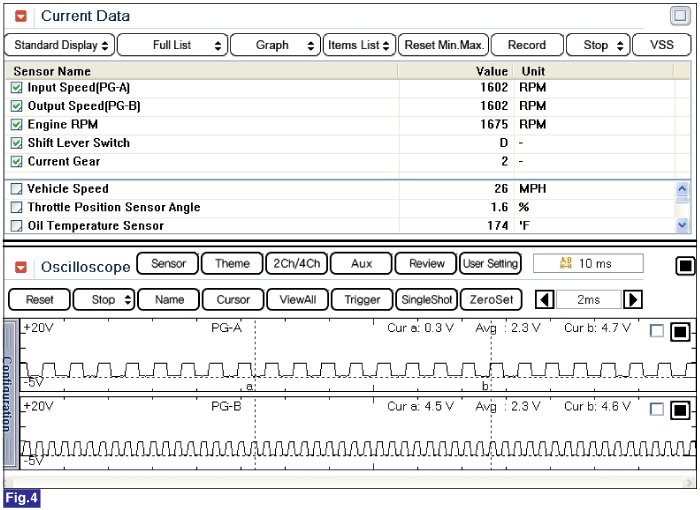

Fig 4) "D"2 Range
Fig 5) "D"3 Range

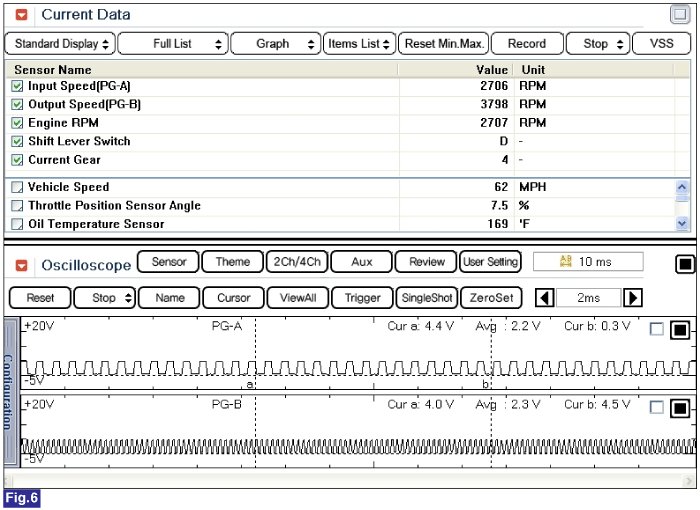

Fig 6) "D"4 Range
5. Does "Output Speed Sensor " follow the referance data?
