Scantool Diagnostics

P0717 Input/Turbine Speed Sensor \'A\' Circuit No Signal

Scantool Diagnostics - Monitor Scantool Data

Monitor GDS Data

1. Connect GDS to data link connector (DLC)
2. Engine "ON".
3. Monitor the "INPUT SPEED SENSOR" parameter on the GDS.
4. Drive the vehicle.

Specification : Increasing Gradually
























Fig 1) P, N Range
Fig 2) "R" Range
Fig 3) "D"1 Range
Fig 4) "D"2 Range
Fig 5) "D"3 Range
Fig 6) "D"4 Range

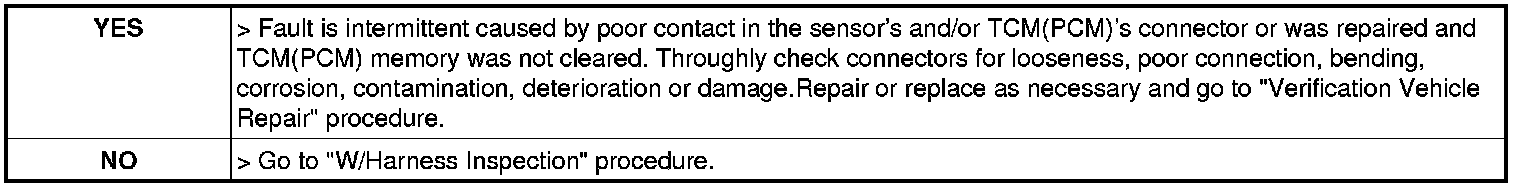

5. Does "Input Speed Sensor" follow the referance data?
