P0708 Transmission Range Sensor Circuit High Input

General Information

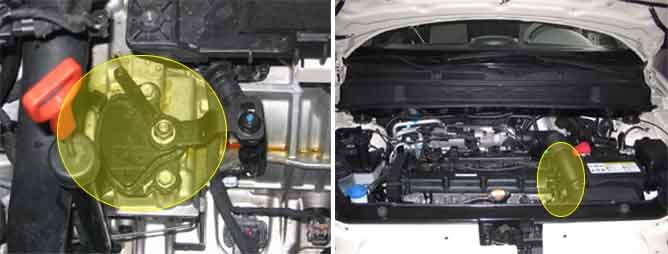

Component Location





General Description

The Transaxle Range Switch sends the shift lever position information to the TCM using a 12 V (battery voltage) signal. When the shift lever is in the D (Drive) position the output signal of Transaxle Range Switch is 12 V and in all other positions the voltage is 0 V. The TCM judges the shift lever position by reading all signals, for the Transaxle Range Switch, simultaneously.

DTC Description

The TCM sets this code when the Transaxle Range Switch outputs multiple signals for more than 10 seconds.

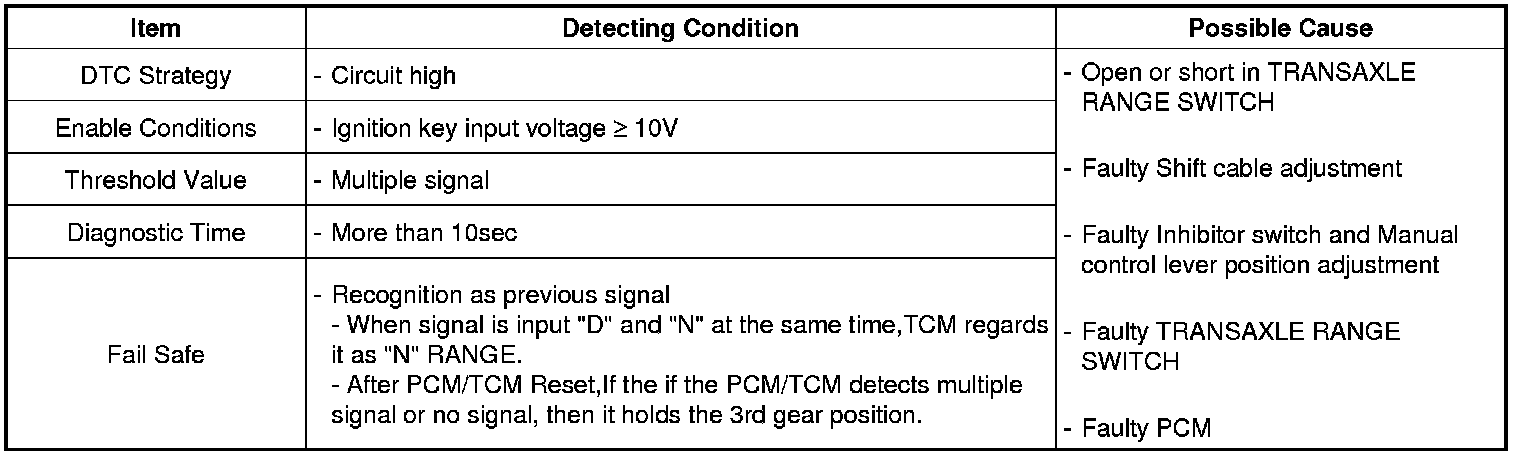

DTC Detecting Condition

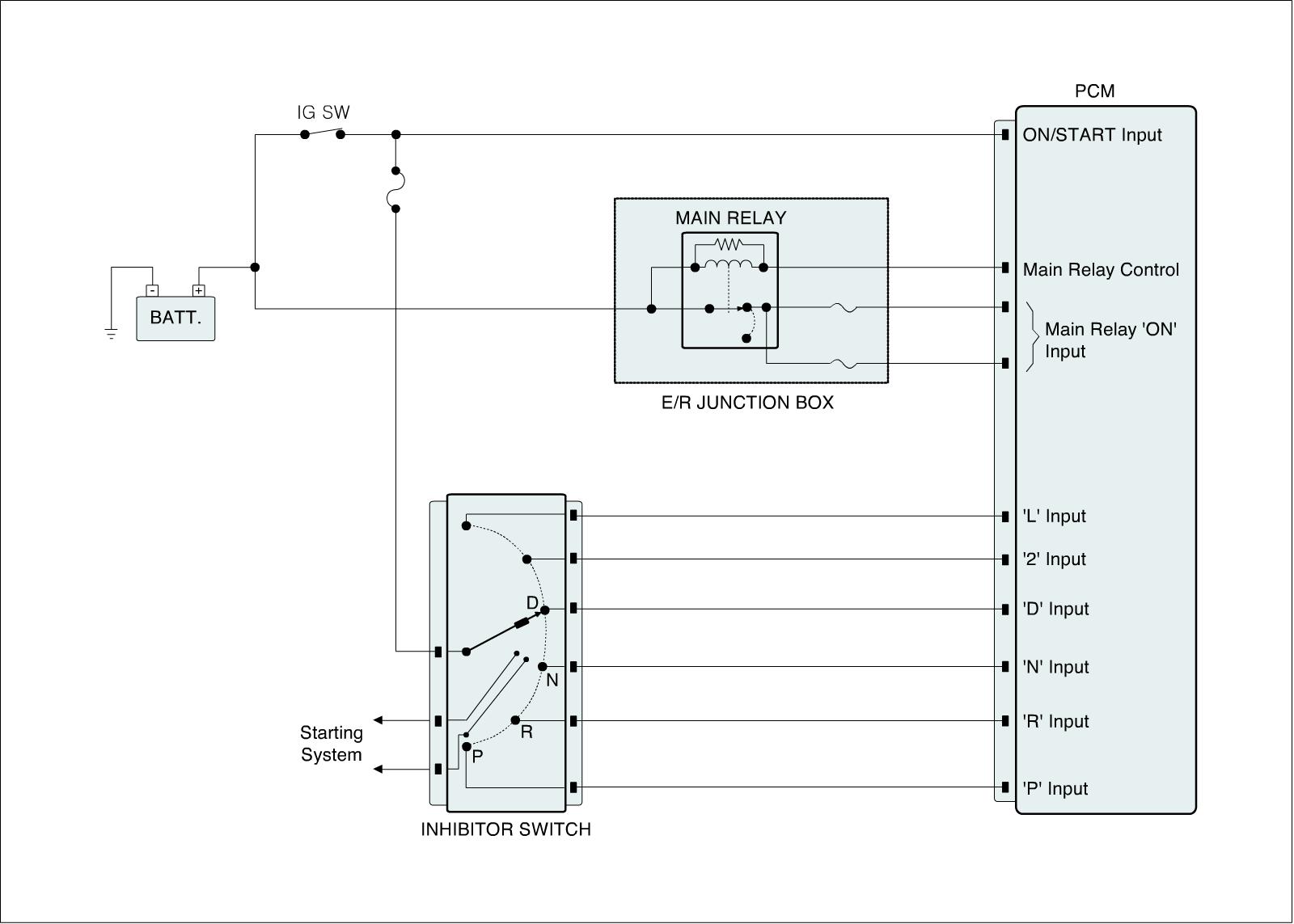

Diagnostic Circuit Diagram

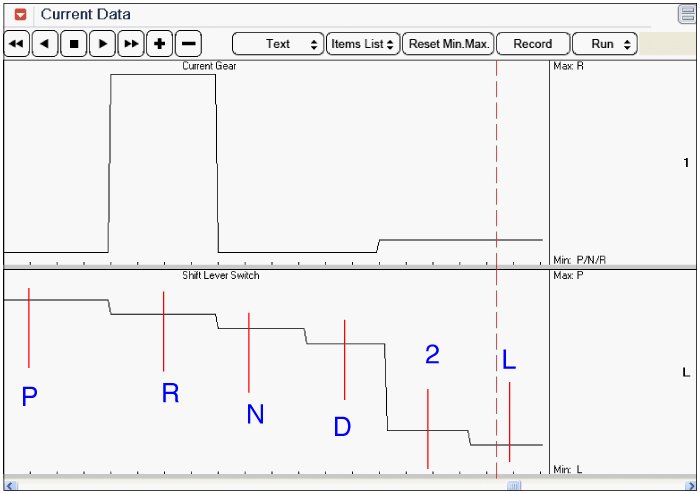

Signal Waveform & Data
