Scantool Diagnostics

P0707 Transmission Range Sensor Circuit Low Input

Scantool Diagnostics - Monitor Scantool Data

Monitor GDS Data

1. Connect scantool to data link connector (DLC)
2. Ignition "ON" & Engine "OFF".
3. Monitor the "Shift Lever Switch" parameter on the scantool.
4. Move selector lever from "P" range to "L" range.




















Fig 1) P, N Range
Fig 2) "R" Range
Fig 3) "D" Range
Fig 4) "2" Range
Fig 5) "L" Range

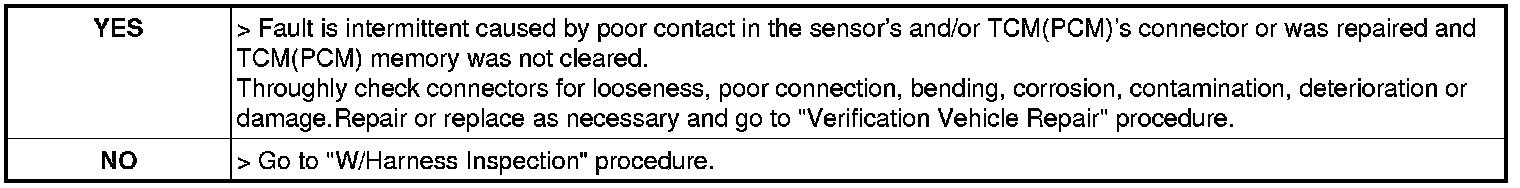

5. Does "Shift Lever Switch" follow the referance data?





** Most of fault that happen about inhibitor switch, result from faulty shift cable adjustment or incorrect location of manual control lever and inhibitor switch.
So, when DTC which related Inhibitor switch or engine start defectiveness at "P" range happen, After check the shift cable adjustment or location of manual control lever and inhibitor switch, repair or replace as necessary.
