P0507 Idle Air Control System-RPM Higher than Expected

General Information

Component Location





General Description

When the TP sensor's signal indicates closed throttle position and the engine is idling, the PCM adjusts the idle speed control actuator so that the engine runs at the correct idling speed, regardless of coolant temperature, load and etc. When the additional load applied in the engine, the air flow through the idle speed control actuator is increased momentarily to raise the idling speed.

DTC Description

The PCM monitors engine speed deviation from the target idle engine speed when the vehicle is stopped and the throttle valve opening is stable. The PCM sets DTC P0507 if the difference to the target idle engine speed is higher than the predetermined threshold.

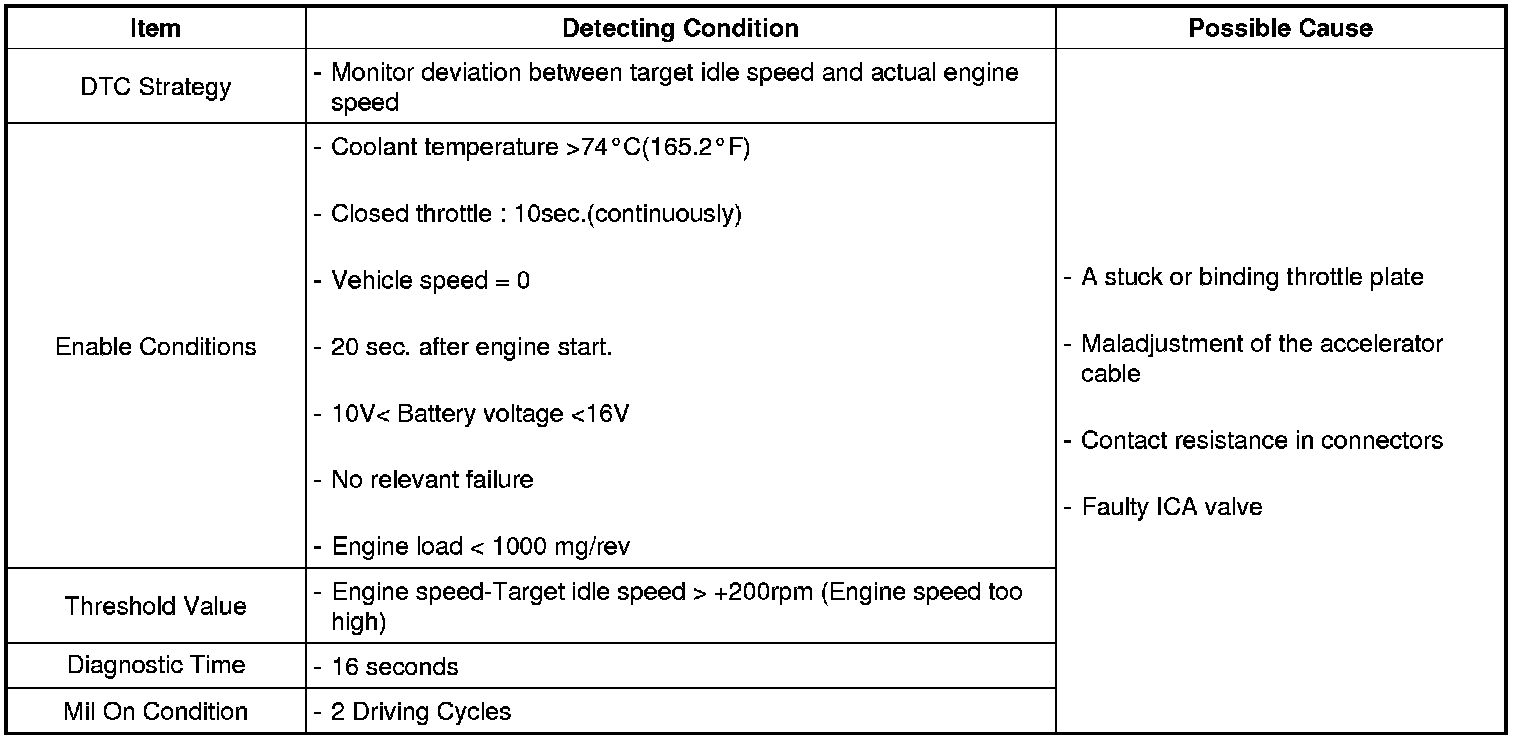

DTC Detecting Condition





Signal Waveform & Data




Fig.1) The above waveforms are the voltage signals generated when the ISCA operates. This ISCA is a duty type and the time opened determines the duty amount. The left side is the waveform of the ISCA Opening coil during idle.
The right side is the waveform of the ISCA Closing coil during idle.
