Component Inspection





P0447 Evaporative Emission System-Vent Control Circuit Open

Inspection/Repair - Component Inspection

Component Inspection

1. Ignition "OFF"
2. Disconnect CCV connector
3. Measure resistance between Power terminal and Control terminal of the CCV connector (Component side)

Specification : Approx. 17±1.5 at 20 °C (68 °F)

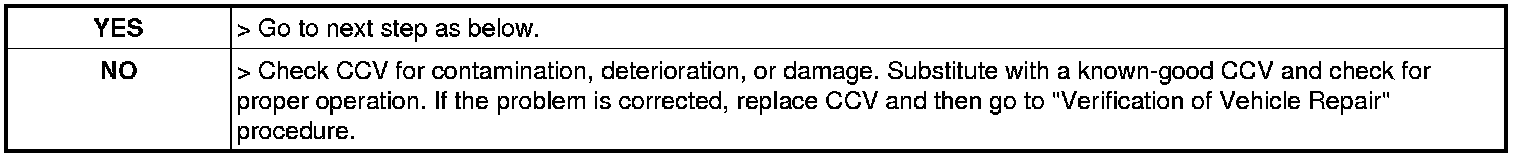

4. Is resistance within the specification?
