Component Inspection





P0197 Engine Oil Temperature Sensor Low Input

Inspection/Repair - Component Inspection

Component Inspection

1. Measure resistance between terminals 1 and 2 of OTS connector. (Component side)

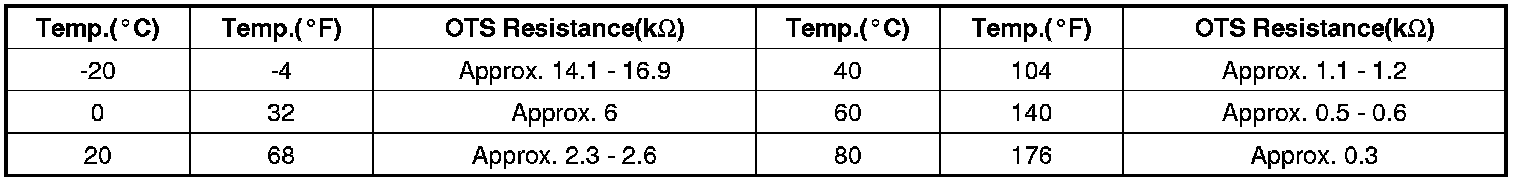

Specification :





2. Is resistance within the specification?
