Component Inspection





P0112 Intake Air Temperature Sensor 1 Circuit Low Input

Inspection/Repair - Component Inspection

Component Inspection

1. Ignition "OFF".
2. Disconnect IATS connector.
3. Measure resistance between terminals 3and 4 of the sensor connector. (Component side)

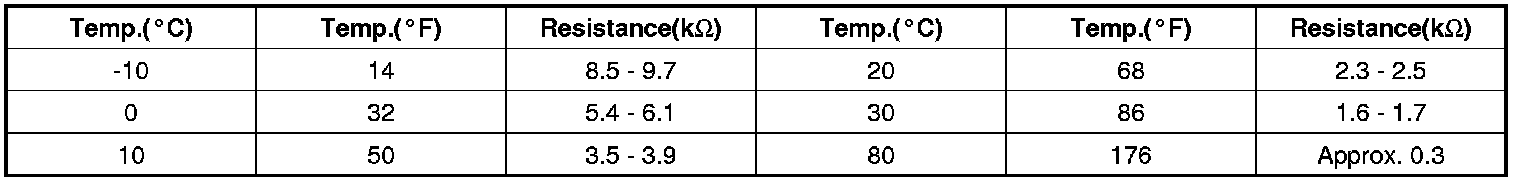

Specification :

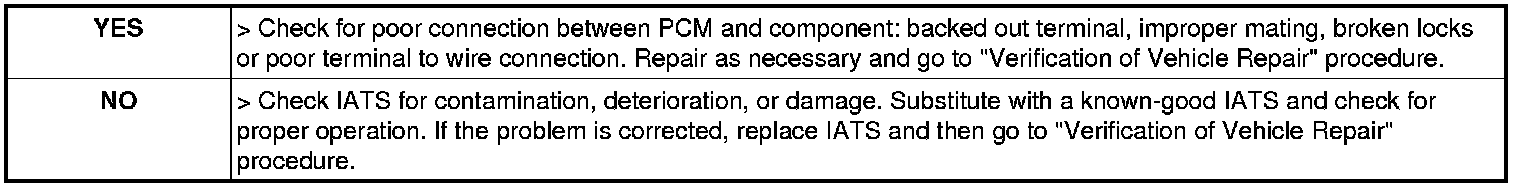

4. Is resistance within the specification?
