Component Inspection

C1322 Sensor 1 Over Temperature

Inspection/Repair - Component Inspection

Component Inspection

[Check wheel / tire]
1. Cool the heat of the Sensor 1's wheel / tire.
2. IG OFF & IG ON. And Wait for 1 minute.
3. Monitor the parameter related to 'Sensor 1 Temperature' on the GDS.

Specification : Below 239 °F (115 °C)

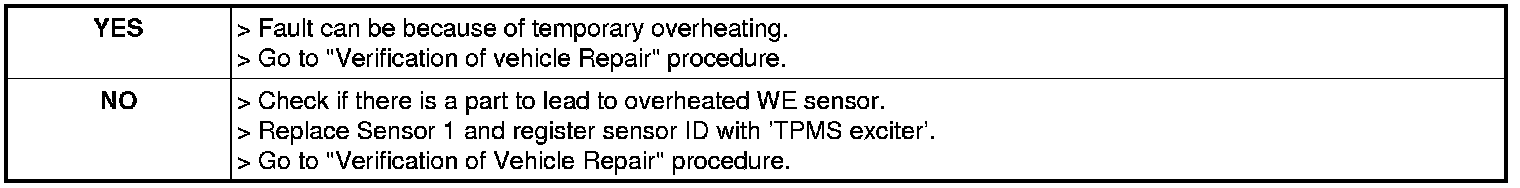

4. Is parameter within specifications?
