Scantool Diagnostics

B1388 STPS (Seat Track Position Sensor) - Driver Open or Short to Battery

Scantool Diagnostics

Monitor Scantool Data

1. Ignition "OFF", connect scantool.
2. Ignition "ON" & Engine "OFF", select "Current Data" mode.
3. Monitor the "STPS-Driver status" parameter on the Scantool.

Specification : STPS-Driver the front : Forward, STPS-Driver the rear : Rearward

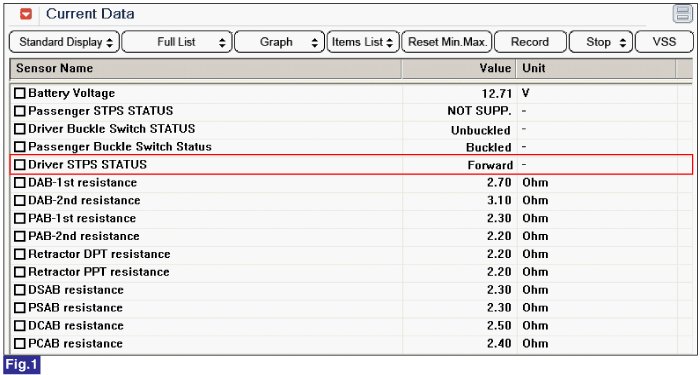

Fig 1) STPS-Driver Data

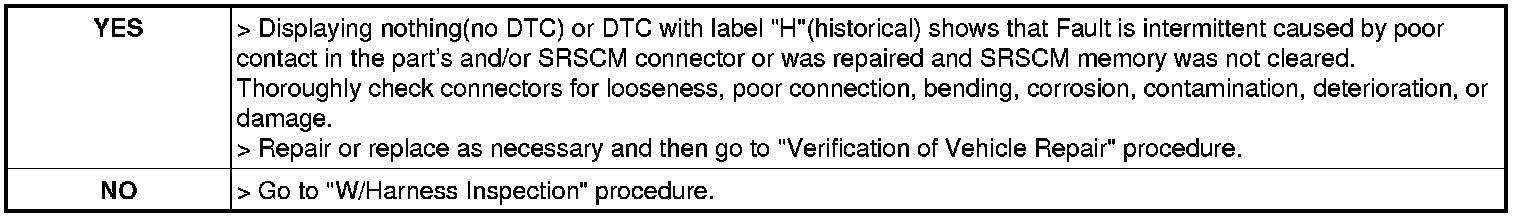

4. Is DTC present problem?
