B1380 Side Airbag Front-Driver Resistance Circuit Short to Ground

Scantool Diagnostics

Monitor Scantool Data

1. Ignition "OFF", connect scantool.
2. Ignition "ON" & Engine "OFF", select "Current Data" mode.
3. Monitor the "Side airbag front-Driver resistance" parameter on the Scantool.

Specification : 1.6 Ohms < Resistance of Side airbag front-Driver < 6.0 Ohms

Reference :In a case of an open in the Side airbag front-Driver circuit : FAIL
In a case of a short to battery in the Side airbag front-Driver circuit: FAIL
In a case of a short to ground in the Side airbag front-Driver circuit : FAIL

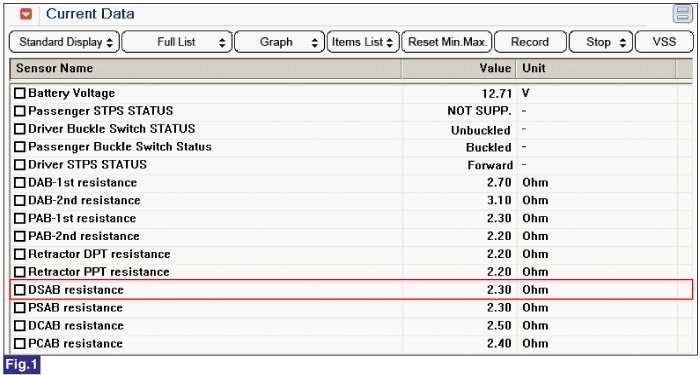

Fig.1) Normal Data
4. Is parameter displayed within specifications?
