B1362 Pretensioner Front-Driver Resistance too Low
Scantool Diagnostics
Monitor Scantool Data
1. Ignition "OFF", connect scantool.
2. Ignition "ON" & Engine "OFF", select "Current Data" mode.
3. Monitor the "Pretensioner front-Driver resistance" parameter on the Scantool.
Specification : 1.6 Ohms < Resistance of Pretensioner front-Driver < 6.0 Ohms
Reference :In a case of an open in the Pretensioner front-Driver circuit : FAIL
In a case of a short to battery in the Pretensioner front-Driver circuit : FAIL
In a case of a short to ground in the Pretensioner front-Driver circuit : FAIL

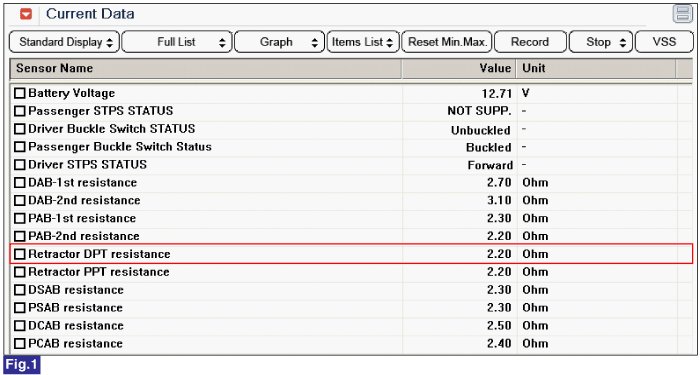

Fig.1) Normal Data
4. Is parameter displayed within specifications?
