System Specifications

Specifications

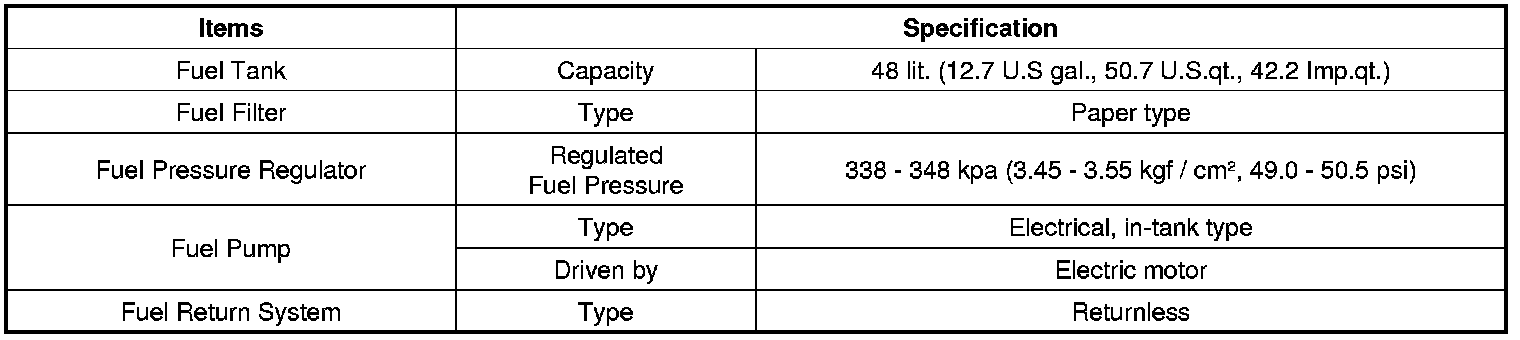

Fuel Delivery System






Sensors

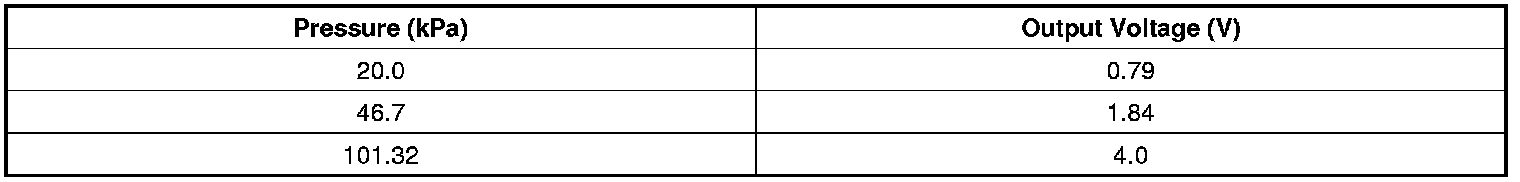

Manifold Absolute Pressure Sensor (MAPS)
- Type: Piezo-resistive pressure sensor type
- Specification

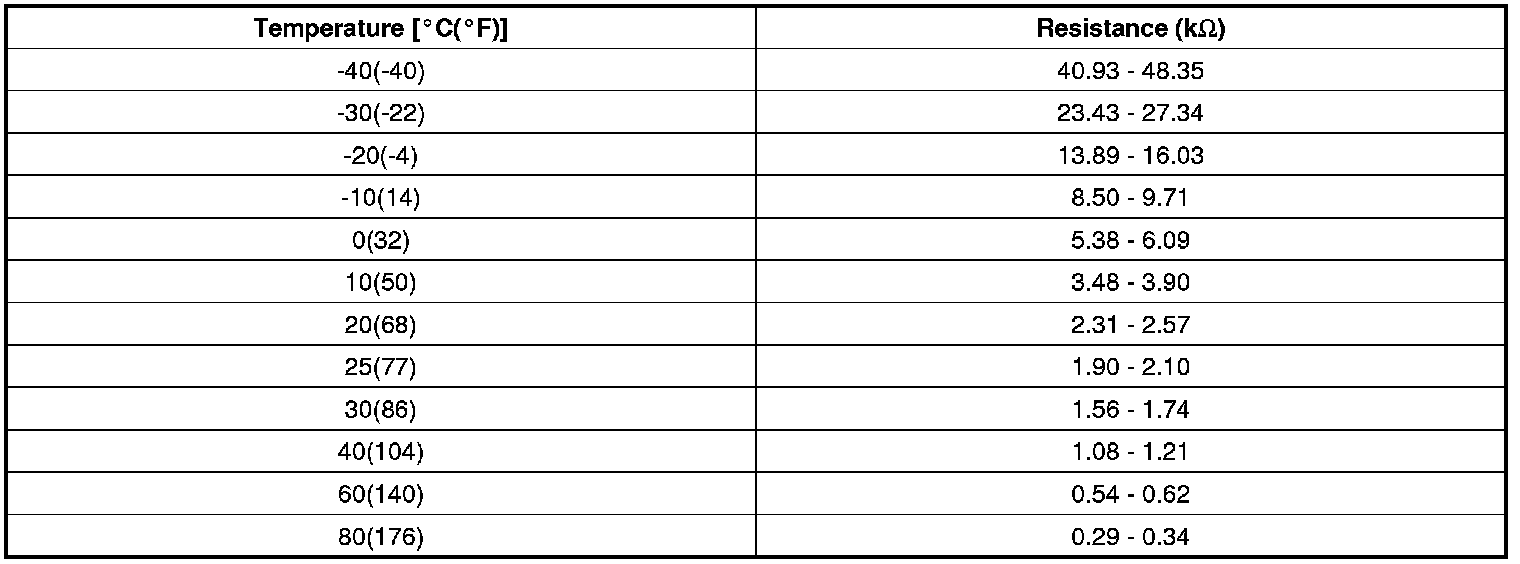

Intake Air Temperature Sensor (IATS)
- Type: Thermistor type
- Specification

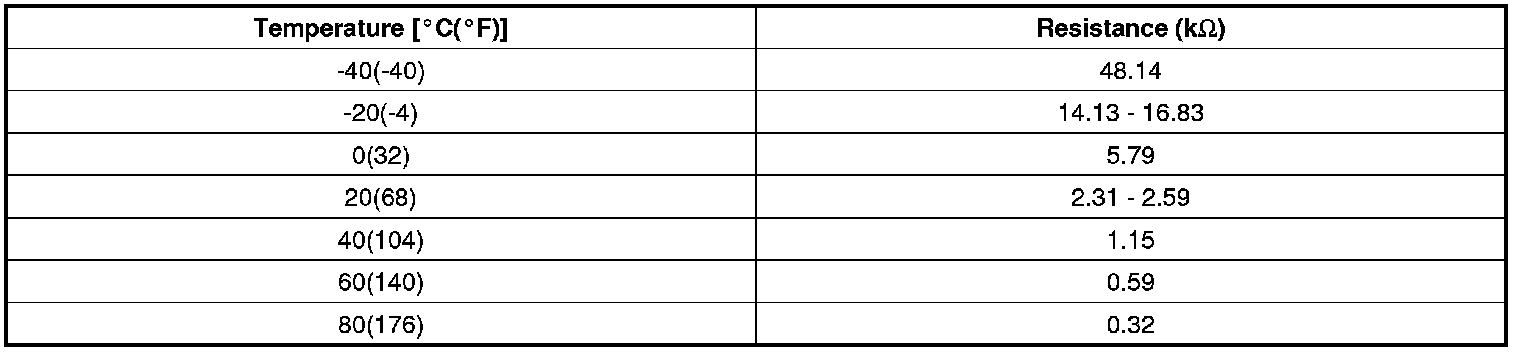

Engine Coolant Temperature Sensor (ECTS)
- Type: Thermistor type
- Specification

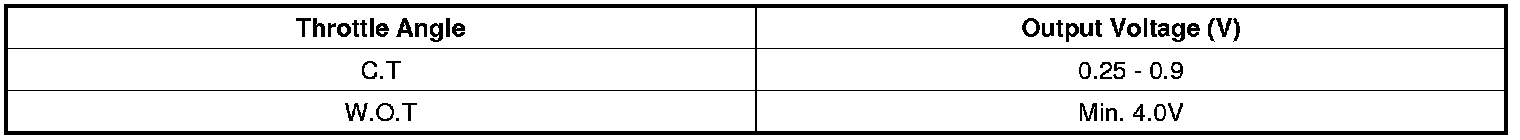

Throttle Position Sensor (TPS)
- Type: Variable resistor type
- Specification

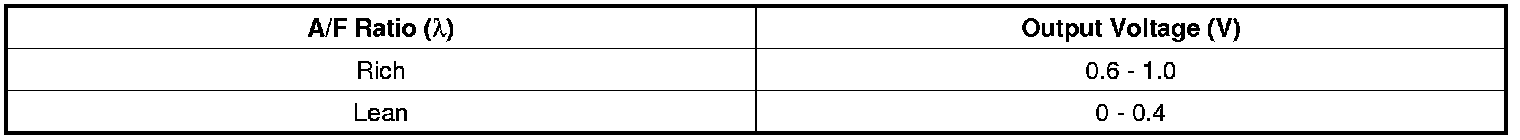

Heated Oxygen Sensor (HO2S)
- Type: Zirconia (ZrO2) type
- Specification











Camshaft Position Sensor (CMPS)
- Type: Hall effect type

Crankshaft Position Sensor (CKPS)
- Type: Magnetic field sensitive Type

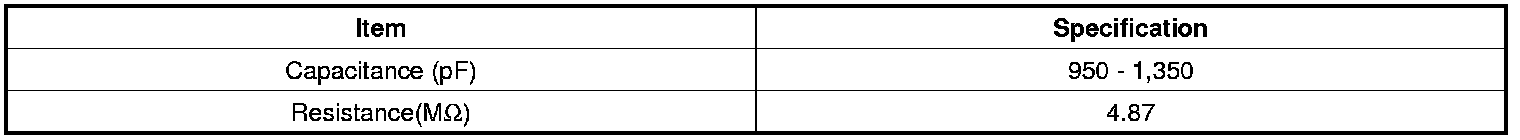

Knock Sensor (KS)
- Type: Piezo-electricity type
- Specification

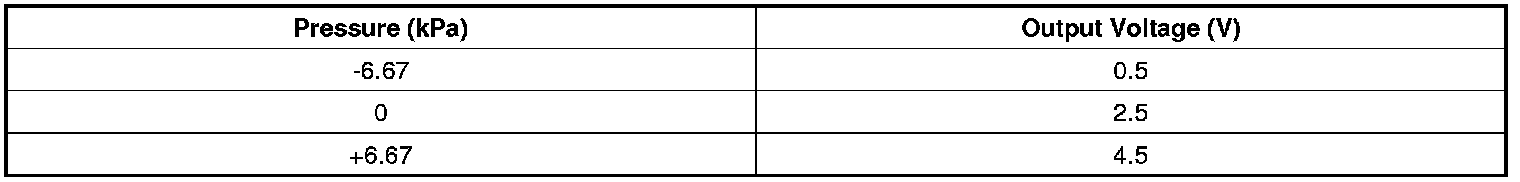

Fuel Tank Pressure Sensor (FTPS)
- Type: Piezo-Resistive Pressure Sensor
- Specification






Actuators
Injector
- Number: 4
- Specification

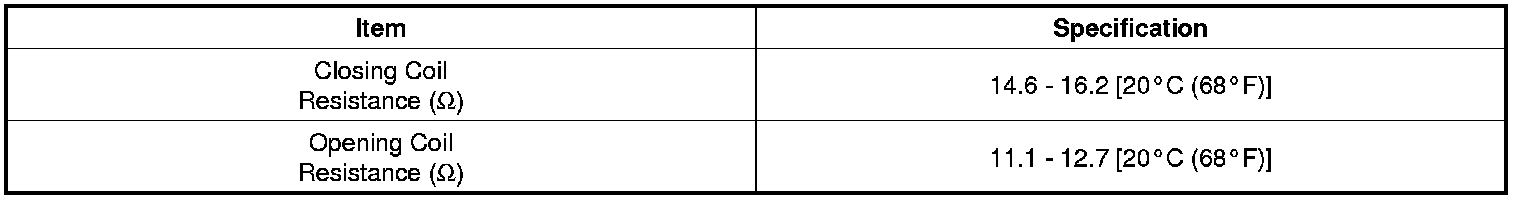

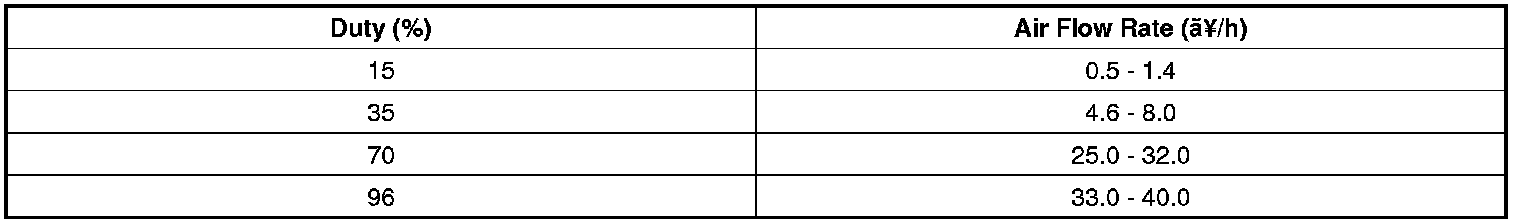

Idle Speed Control Actuator (ISCA)
- Type: Double coil type
- Specification











Purge Control Solenoid Valve (PCSV)
- Specification






CVVT Oil Control Valve (OCV)
- Specification






Canister Close Valve (CCV)
- Specification

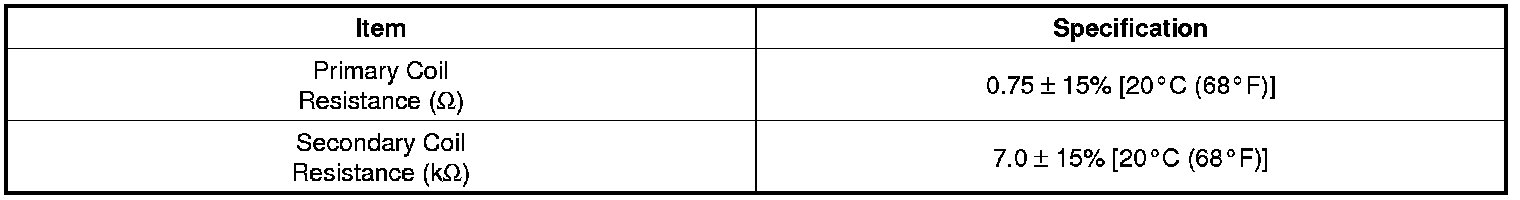

Ignition Coil
- Type: Stick type
- Specification






Service Standard

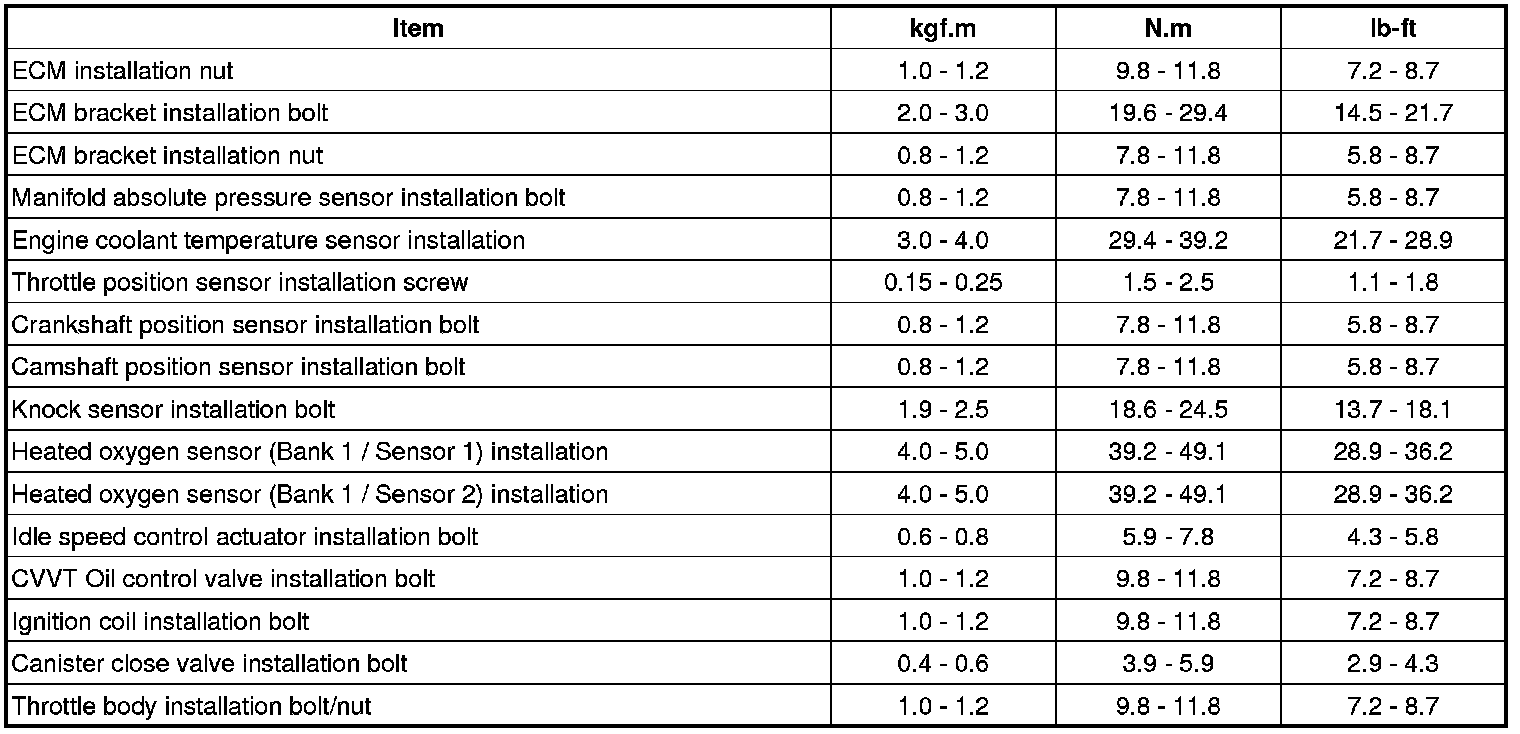

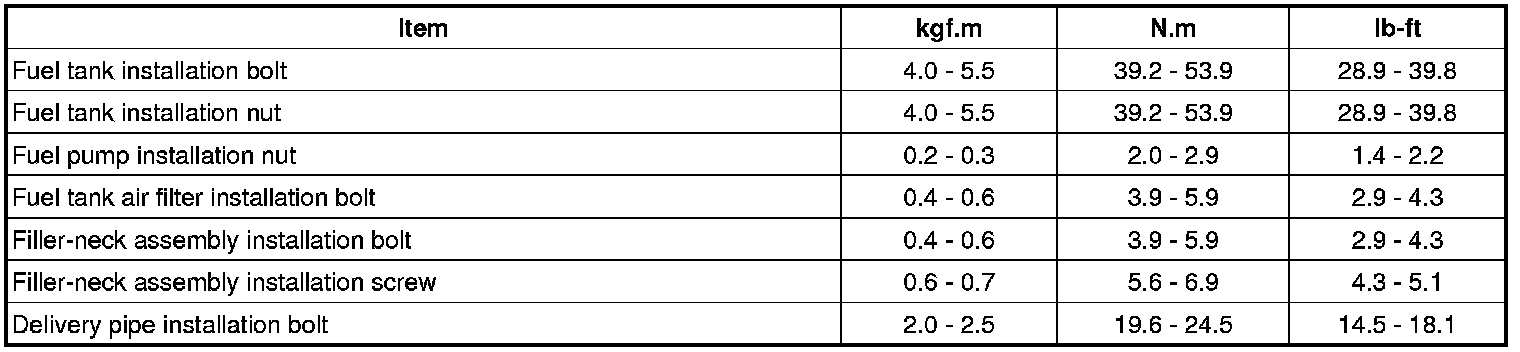

Tightening Torques

Engine Control System





Fuel Delivery System
