Cylinder Head

Cylinder Head

Install the cylinder head bolts with washers.
Tighten the 10 cylinder head bolts, in several passes, in the sequence shown.

Tightening torque :
1st step 17.7 - 21.6 N.m (1.8 - 2.2 kgf.m, 13.0 - 15.9 lb-ft)
2nd step 90°~95°
3rd step 100°~105°







CAUTION: Always use new cylinder head bolts.

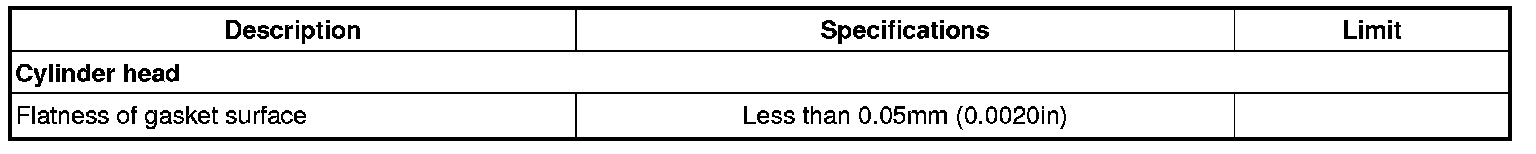

SURFACE VARIATION - WARPAGE
