Power Distribution (4)

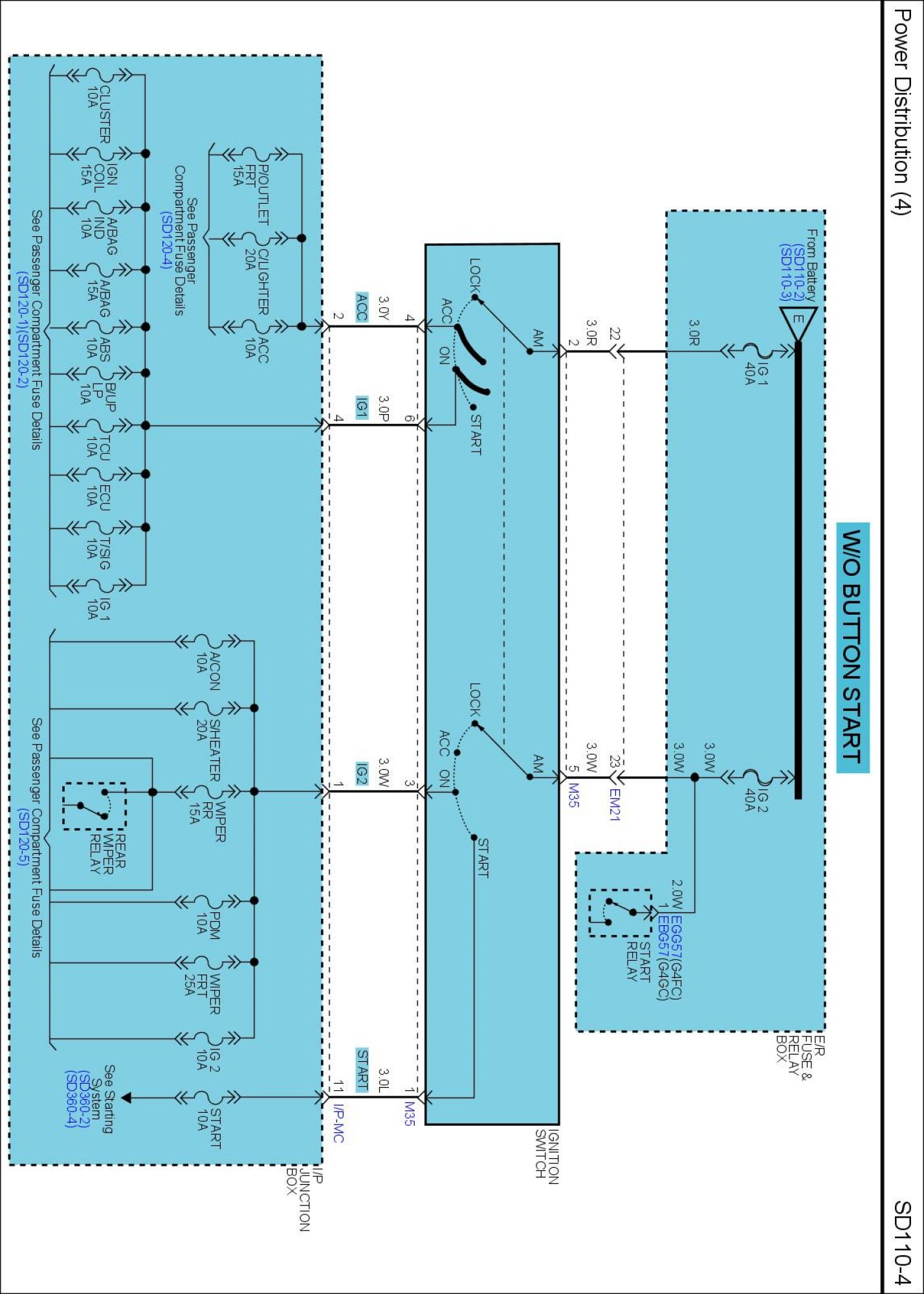

SD110-4 Power Distribution (4):

Next Diagram: Power Distribution (5)

Previous Diagram: Power Distribution (2)

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found via the photo number at the vehicle level under Locations by Photo Number. Locations By Photo Number
