Home >> Kia >> 2011 >> Soul L4-1.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Circuit Diagram

Circuit Diagram





Circuit Diagram - ESC(1)





Circuit Diagram - ESC(2)





Circuit Diagram - ESC(3)

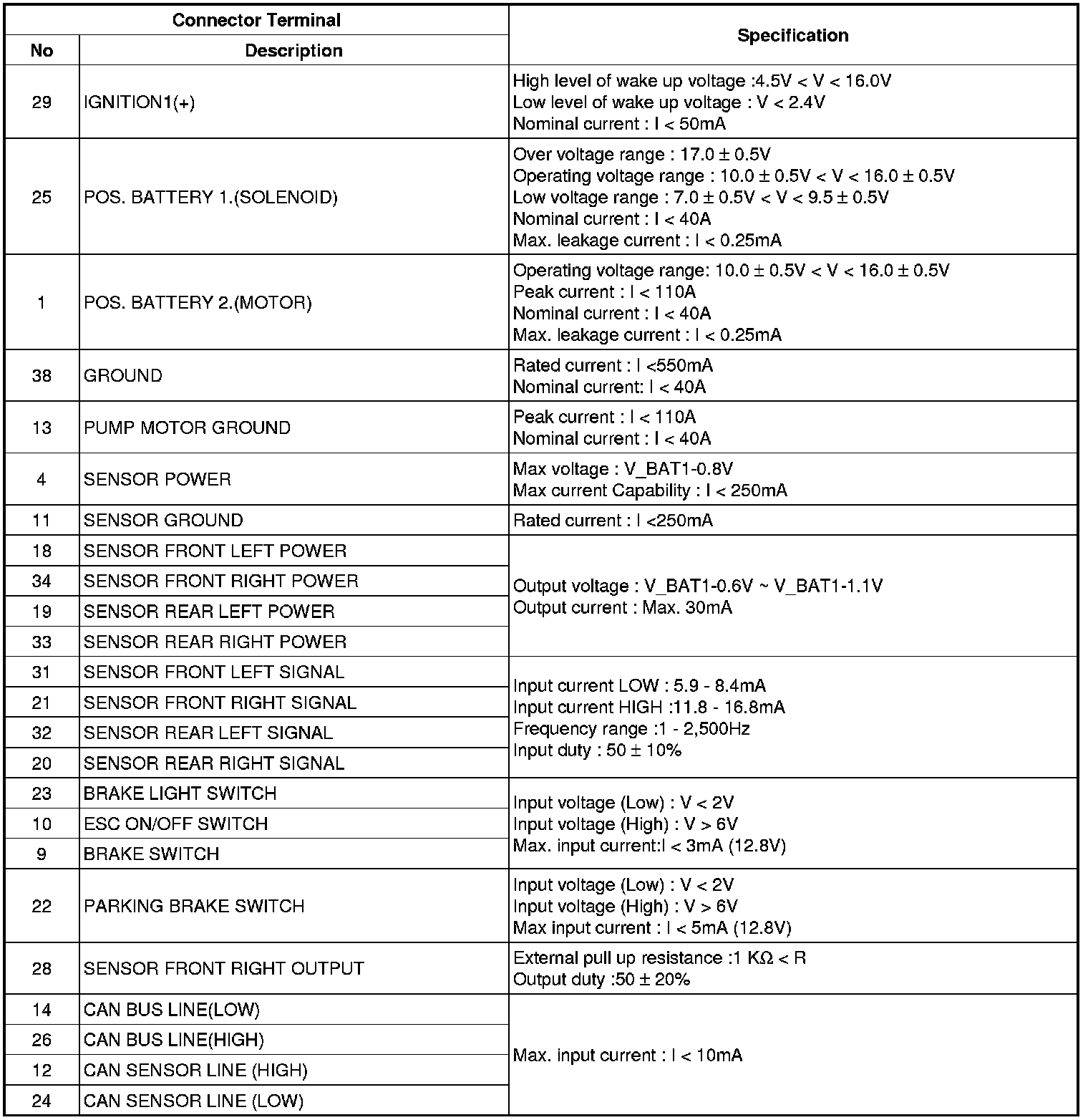

ESC Connector Input/Output
