Trunk / Liftgate: Service and Repair

Replacement

Tailgate Trim Replacement

NOTE:
- When prying with a flat-tipped screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.

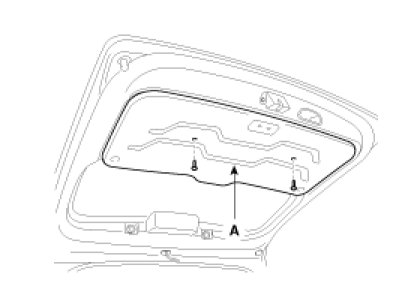

1. After loosening the mounting screws,remove the tailgate trim (A).




2. Installation is the reverse of removal.

NOTE:
- Replace and damaged clips.

Latch Assembly Replacement
1. Remove the tailgate trim.

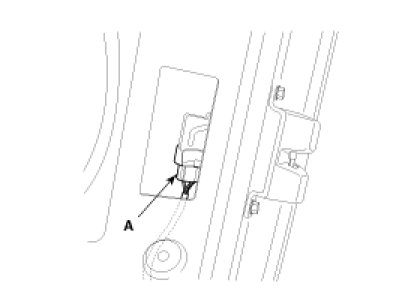

2. Disconnect the latch connector (A).

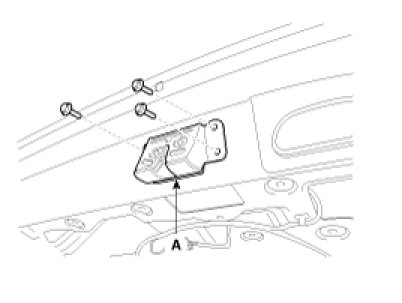

3. After loosening the mounting screws, then remove the latch assembly (A).




4. Installation is the reverse of removal.

NOTE:
- Make sure the connector is connected properly and the connecting rod is connected properly.
- Make sure the tailgate opens properly and locks securely.

Tailgate Lifter Replacement

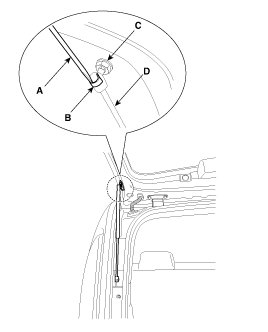

1. Using a screwdriver (A), lift up slightly the socket clips (B) of both ends on the lifer (D), and then remove the lifter from the bracket (C).




2. Push the socket of the lifter into the bracket for installation.

Adjustment

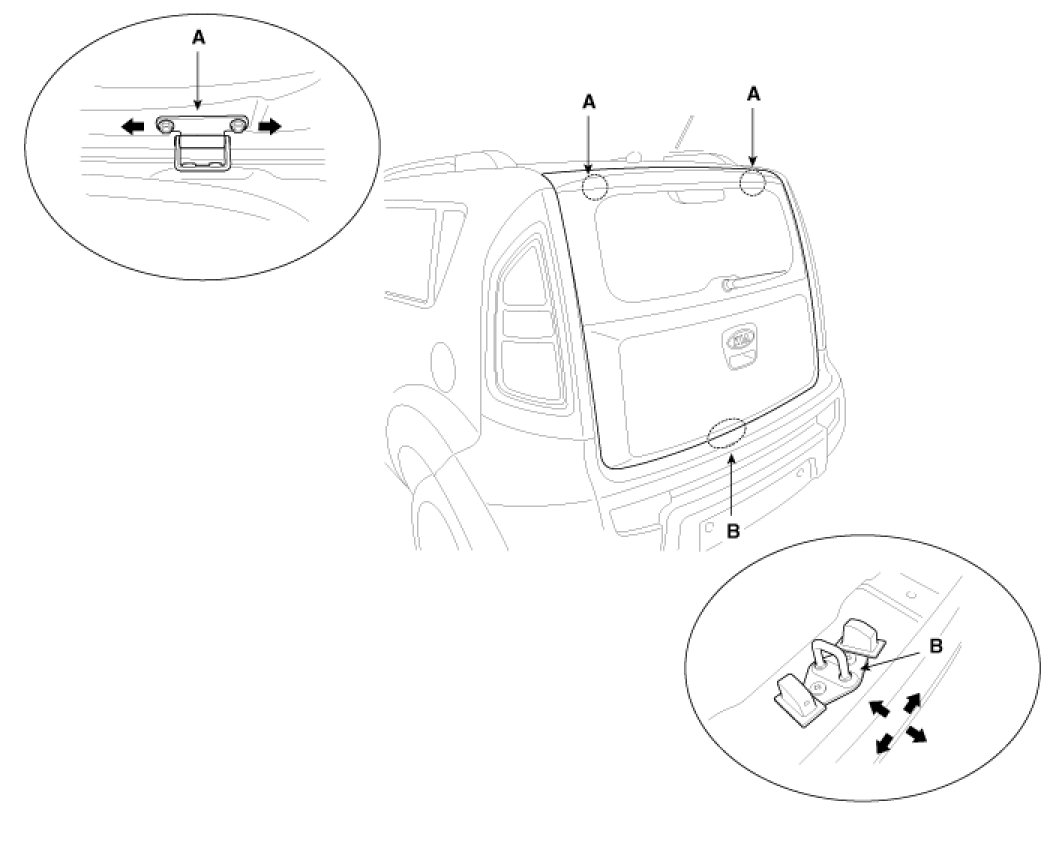

1. After loosening the tailgate hinge (A) mounting bolt, adjust the tailgate by moving it up or down, or right or left.
2. Adjust the tailgate fit by turning the tailgate over slam bumper and side bumper.
3. Adjust the striker (B) by moving it up or down, or right or left.
