Hood: Service and Repair

Replacement

Hood Assembly Replacement

NOTE:
- When removing and installing the hood, an assistant is necessary.
- Be careful not to damage the hood and body.
- When removing the clips, use a clip remover.

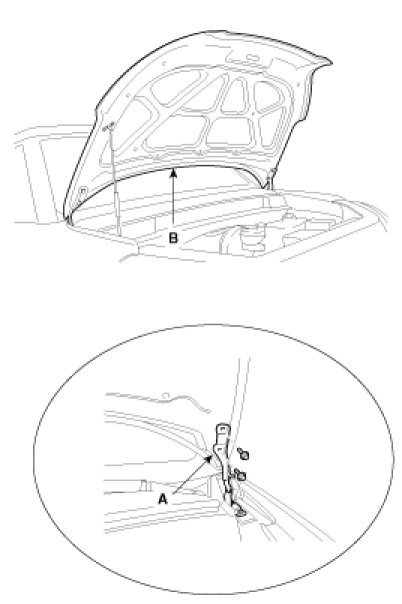

1. After loosening the hood hinge (A) mounting bolts, remove the hood (B).




2. Installation is the reverse of removal.

NOTE:
- Make sure the hood opens properly and locks securely.
- Adjust the hood alignment.

Hood Weatherstrip Replacement
1. Remove the hood weatherstrip (B).




2. Installation is the reverse of removal.

Hood Release Handle Replacement

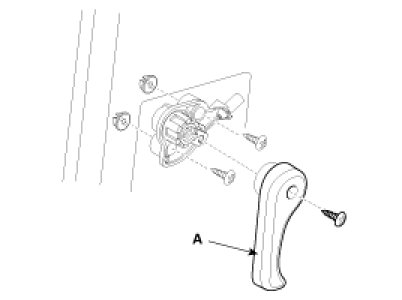

1. After loosening the mounting screw, then remove the hood release handle (A).




2. Installation is the reverse of removal.

NOTE:
- Make sure the hood latch cable is connected properly.
- Make sure the hood locks securely.

Hood Latch Replacement

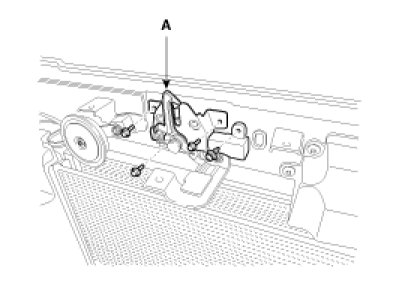

1. Remove the hood latch (A) mounting bolts.
2. Disconnect the hood latch cable and remove the latch.

Tightening torque :
6.9 - 10.8N.m (0.7 - 1.1kgf.m, 5.1 - 8.0 lb-ft)




3. Installation is the reverse of removal.

NOTE:
- Make sure the hood latch cable is connected properly.
- Make sure the hood locks securely.

Adjustment

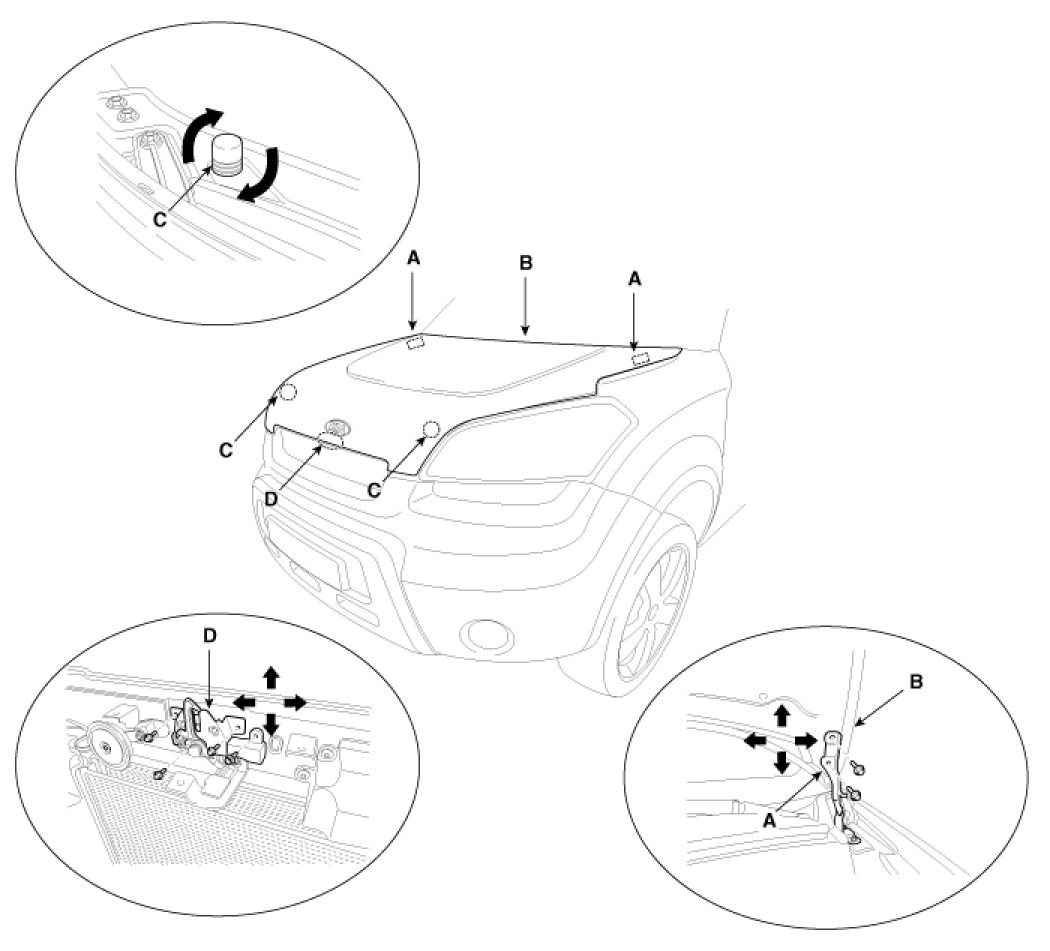

1. After loosening the hinge (A) mounting bolt, adjust the hood (B) by moving it up or down, or right or left.
2. Adjust the hood height by turning the hood overslam bumpers (C).
3. After loosening the hood latch (D) mounting bolts, adjust the latch by moving it up or down, or right or left.
