General Information

P1560 Knock Control Serial Port Interface check (Bank 1)

General Information

Component Location





General Description

Knocking is a phenomenon characterized by undesirable vibration and noise that can cause engine damage. A knock sensor (KS) is mounted on the cylinder block and senses engine knocking. A knocking vibration from the cylinder block is applied as pressure to the piezoelectric element. A knock sensor (KS) detects vibration when RPM rises or drops and generates voltages based on this vibration. The ECM controls the ignition timing based on the amplitude and frequency of the knock sensor signal. For example, if engine knocking occurs, the ignition timing is retarded to prevent it.

DTC Description

Knock sensor signal is inputted to CPU through SPI (Serial Port Interface). By the way, if there is malfunction between SPI and CPU, ECM sets DTC P1560.

DTC Detecting Condition





SPI : Serial Port Interface

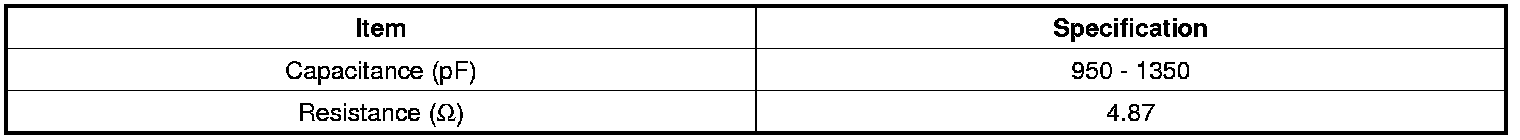

Specification





Diagnostic Circuit Diagram
