Scantool Diagnostics

P1550 Knock Sensor Evaluation IC

Scantool Diagnostics

Monitor GDS Data

1. Connect GDS to Data Link Connector (DLC).
2. Warm up the engine to normal operating temperature.

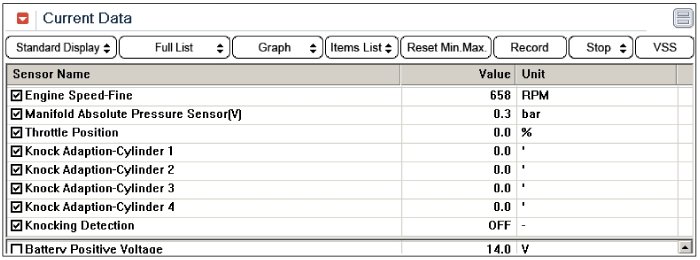

3. Monitor the "Knock sensor" parameters on the GDS.

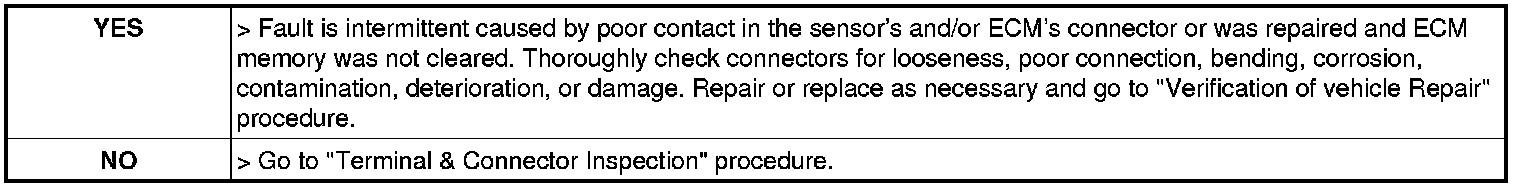

4. Are the parameters displayed correctly?
