Scantool Diagnostics

P0765 Shift Control Solenoid Valve \'D\' (Over Drive Clutch Solenoid)

Scantool Diagnostics - Monitor Scantool Data

Monitor GDS Data

1. Connect GDS to data link connector (DLC)
2. Engine "ON".
3. Monitor the "PCSV-C (UD) SOLENOID VALVE" parameter on the GDS
4. Shift gear at each position.

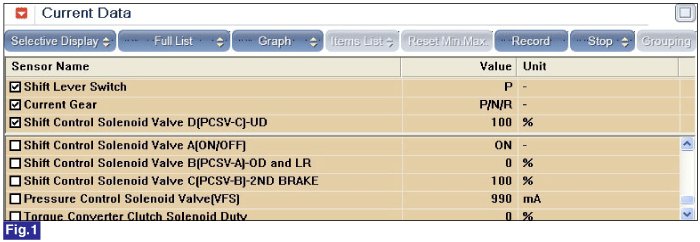

Fig 1) "P, N" Range
Fig 2) "R" Range

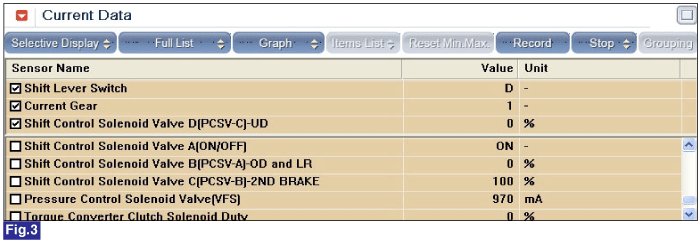

Fig 3) "D Range 1st" gear

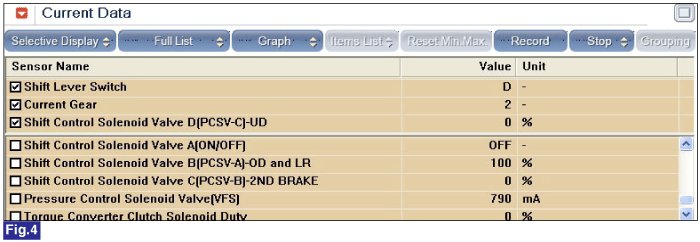

Fig 4) "D Range 2nd" gear

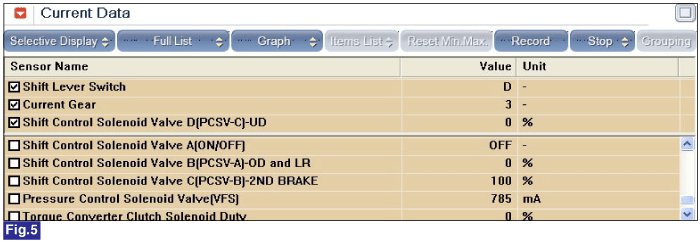

Fig 5) "D Range 3rd" gear
Fig 6) "D Range 4th" gear
5. Does " PCSV-C (UD) SOLENOID VALVE" follow the reference data?
