Component Inspection

P0760 Shift Control Solenoid Valve \'C\' (2nd Brake Solenoid)

Inspection/Repair - Component Inspection

Component Inspection

1. CHECK SOLENOID VALVE
(1) Ignition "OFF".
(2) Disconnect "A/T SOLENOID VALVE" connector

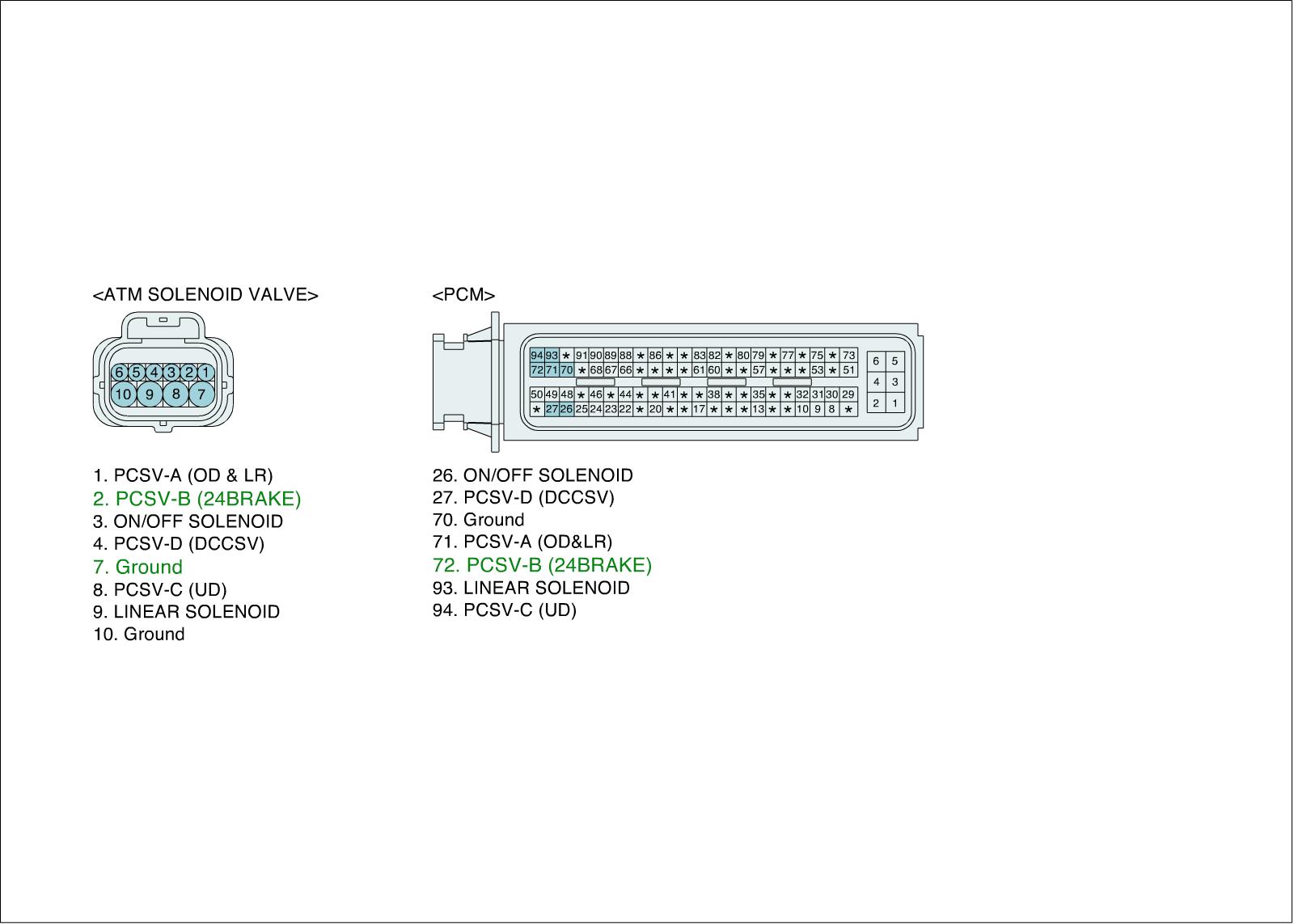

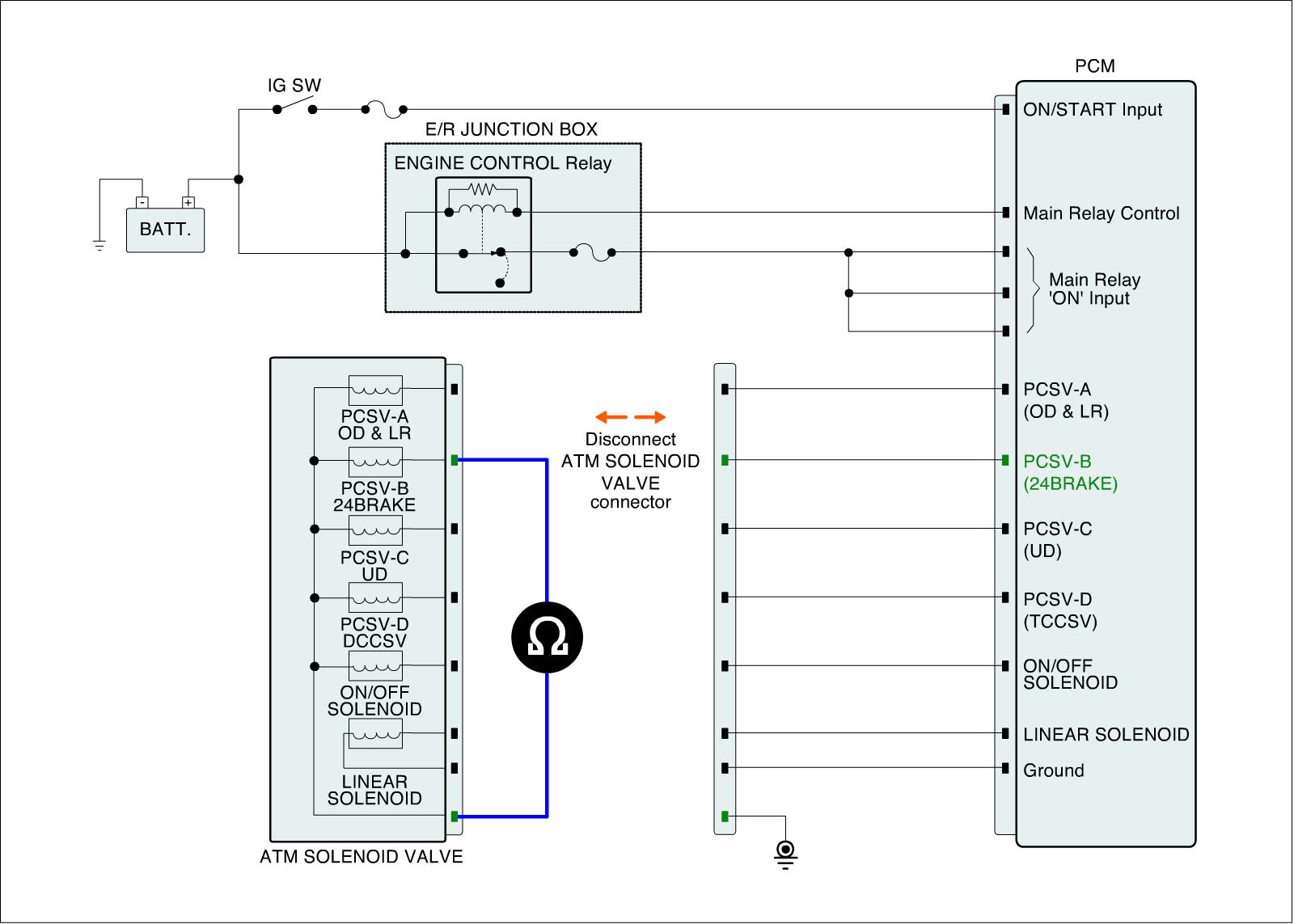

(3) Measure resistance between "PCSV-B (2-4 BRAKE)" terminal and "Ground" terminal of the ATM SOLENOID VALVE harness connector

Specification: Approximately 3.5 ± 0.2 Ohms (25 °C)








(4) Is resistance within specifications?





2. CHECK TCM (PCM)
(1) Connect GDS to data link connector (DLC)
(2) Ignition "ON" & Engine "OFF".

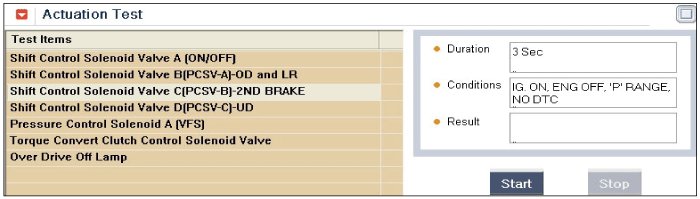

(3) Select A/T Solenoid valve Actuator test and Operate Actuator test.
(4) Is Actuator Testing performed normally?









ACTUATOR TEST CONDITION
1. IG SWITCH ON
2. TRANSAXLE RANGE SWITCH is normal
3. P RANGE
4. Vehicle Speed 0 km/h
5. Throttle position sensor< 1 V
6. IDLE SWITCH ON
7. ENGINE RPM 0
