Scantool Diagnostics

P0750 Shift Control Solenoid Valve \'A\' (Low & Reverse Brake Solenoid)

Scantool Diagnostics - Monitor Scantool Data

Monitor GDS Data

1. Connect GDS to data link connector (DLC)
2. Engine "ON".
3. Monitor the "ON/OFF (SCSV-A) SOLENOID VALVE" parameter on the GDS.
4. Shift gear at each position.

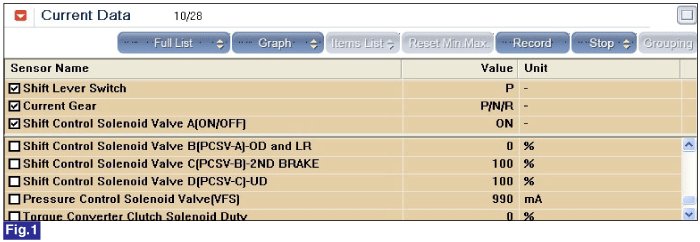

Fig 1) "P, N" Range

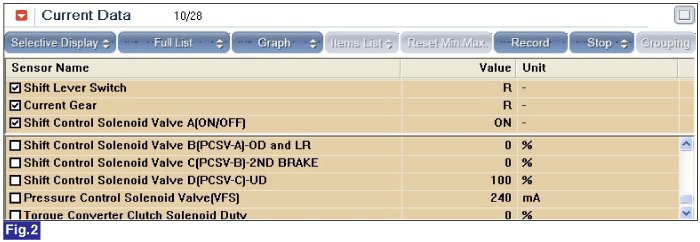

Fig 2) "R" Range
Fig 3) "D Range 1st" gear
Fig 4) "D Range 2nd" gear
Fig 5) "D Range 3rd" gear

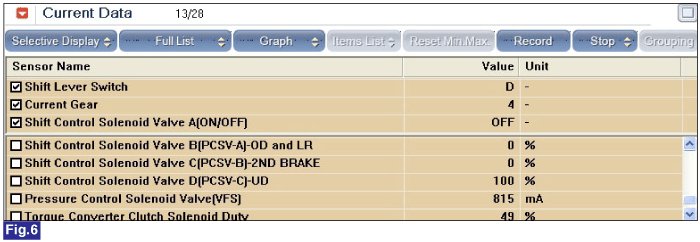

Fig 6) "D Range 4th" gear
5. Does "ON/OFF SOLENOID VALVE" follow the reference data?
