Scantool Diagnostics

P0748 Pressure Control Solenoid Valve (VFS) \'A\' Electrical

Scantool Diagnostics - Monitor Scantool Data

Monitor GDS Data

1. Connect GDS to data link connector (DLC)
2. Engine "ON".
3. Monitor the "VF SOL. VALVE" parameter on the GDS.
4. Shift gear at each position.

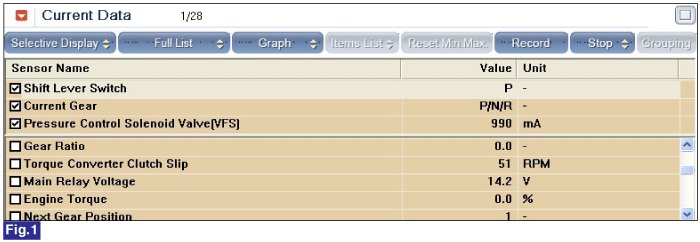

Fig 1) "P, N" Range

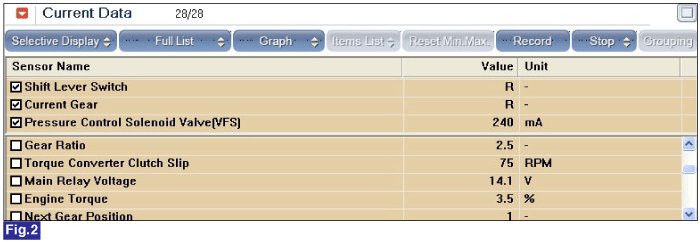

Fig 2) "R" Range

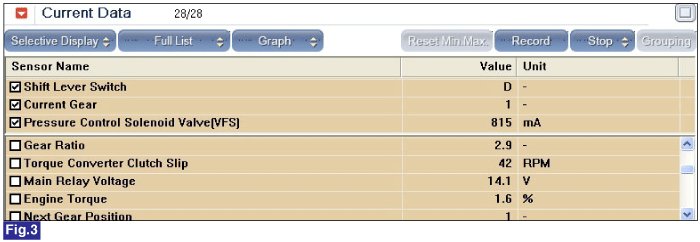

Fig 3) "D Range 1st" gear

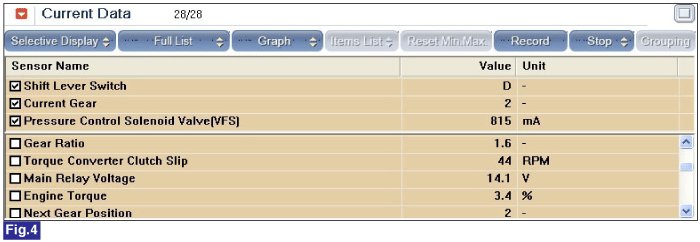

Fig 4) "D Range 2nd" gear
Fig 5) "D Range 3rd" gear
Fig 6) "D Range 4th" gear
5. Does "VF SOL DUTY " follow the referance data?
