Scantool Diagnostics

P0722 Output Speed Sensor Circuit No Signal

Scantool Diagnostics - Monitor Scantool Data

Monitor GDS Data

1. Connect GDS to data link connector (DLC)
2. Engine "ON".
3. Monitor the "INPUT SPEED SENSOR" parameter on the GDS.
4. Drive the vehicle

Specification : Increasing Gradually




















Fig 1) P,N

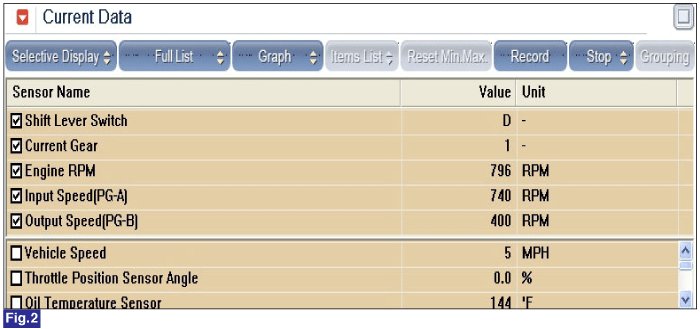

Fig 2) "1st" gear

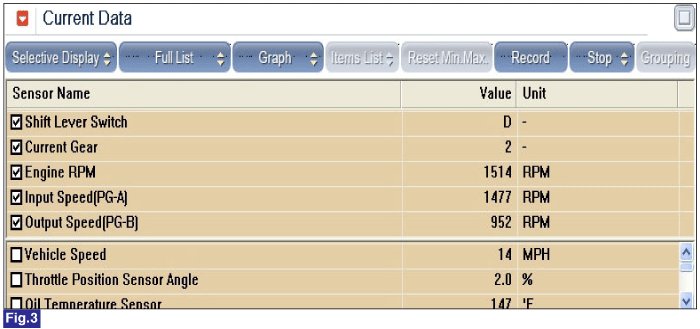

Fig 3) "2nd" gear

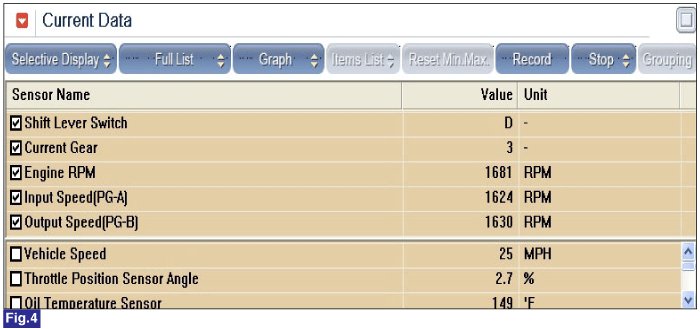

Fig 4) "3rd" gear
Fig 5) "4th" gear
5. Does "input speed sensor " follow the referance data?
