P0717 Input/Turbine Speed Sensor \'A\' Circuit No Signal

Inspection/Repair - Component Inspection

Component Inspection

Check "INPUT SPEED SENSOR"
1. Ignition "OFF"
2. Disconnect the "INPUT SPEED SENSOR" connector

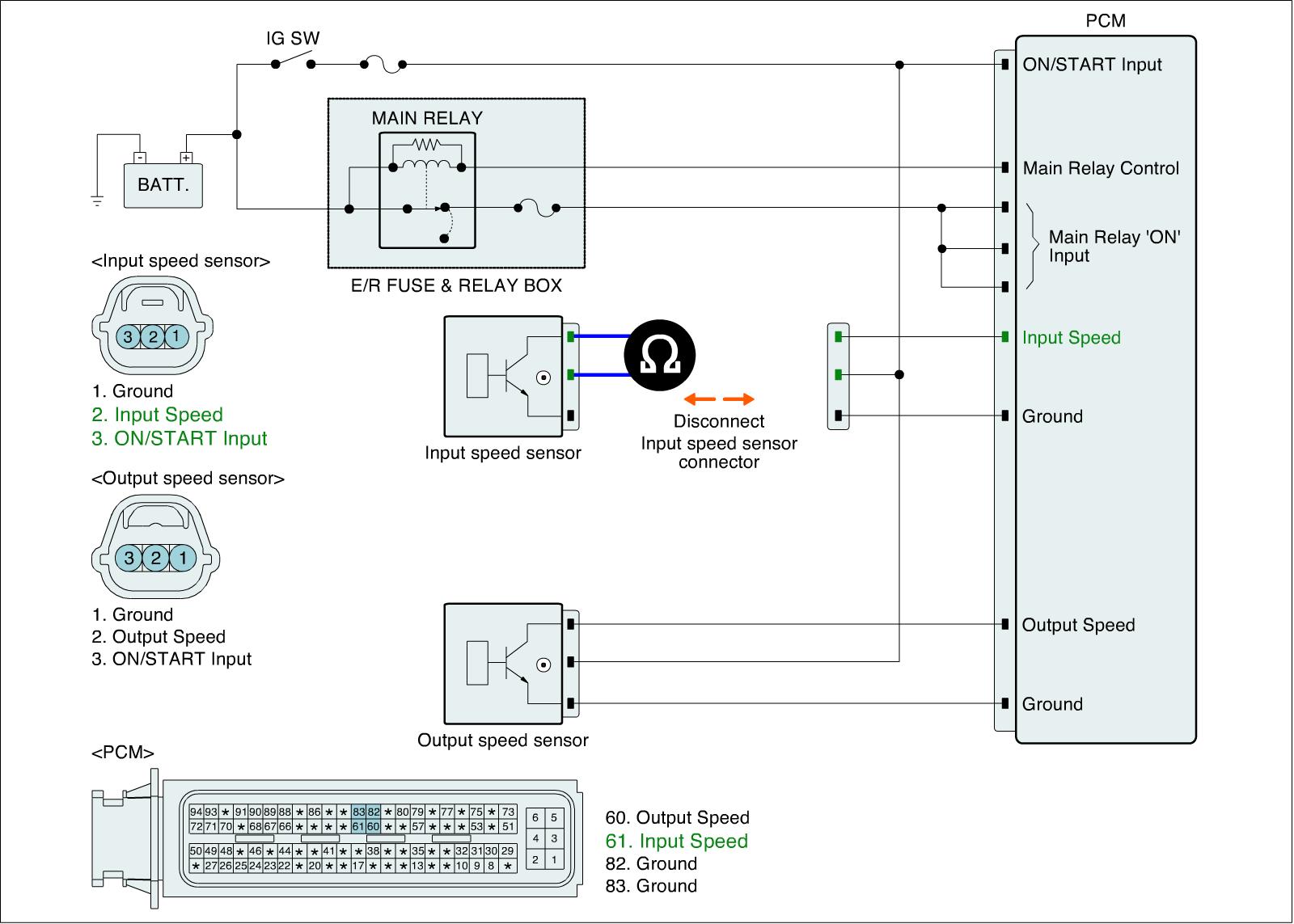

3. Measure resistance between terminal "1","2" and "2","3" and "1","3" of the "INPUT SPEED SENSOR" connector.

Specification : Refer to " Reference data"




4. Is resistance within specifications?

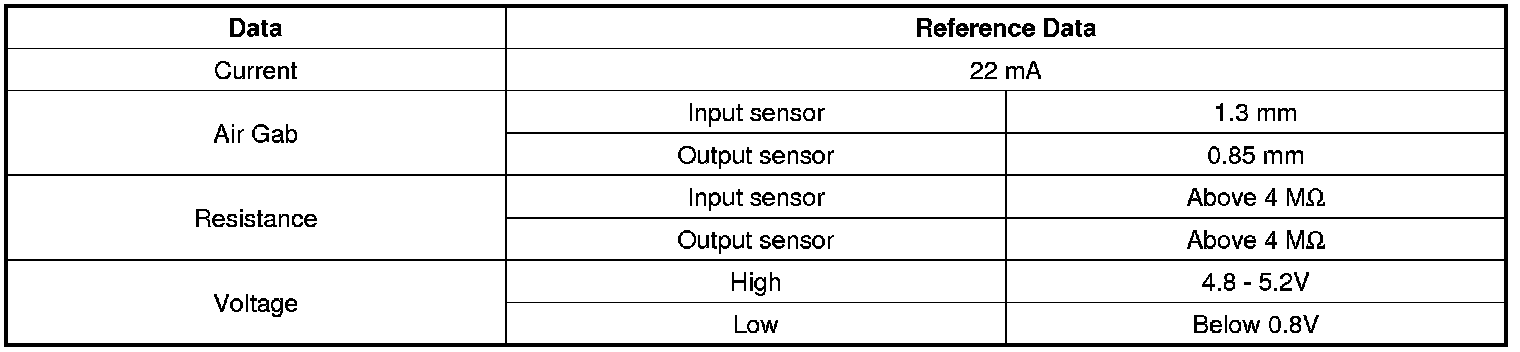

[Reference data]










Check TCM (PCM)
1. Ignition "ON" & Engine "OFF".
2. Connect "INPUT SPEED SENSOR" connector.
3. Install GDS and select a SIMU-SCAN,
4. Simulate frequency to INPUT SPEED SENSOR signal circuit.

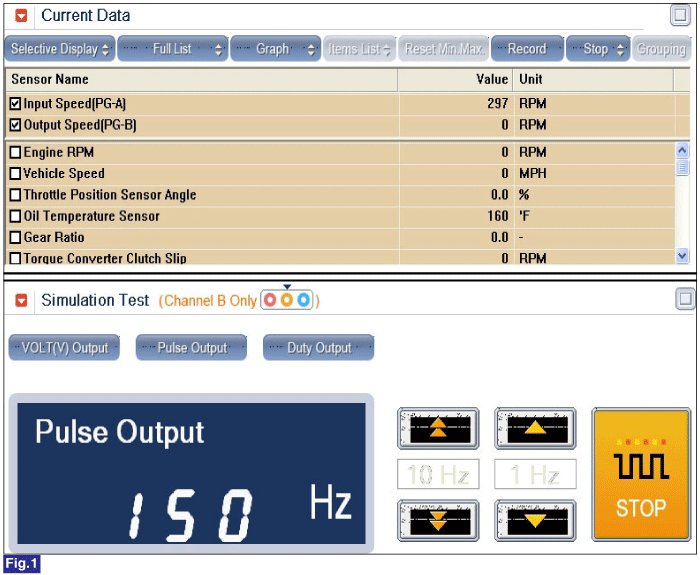

Fig 1) INPUT 150 Hz -> 297 rpm

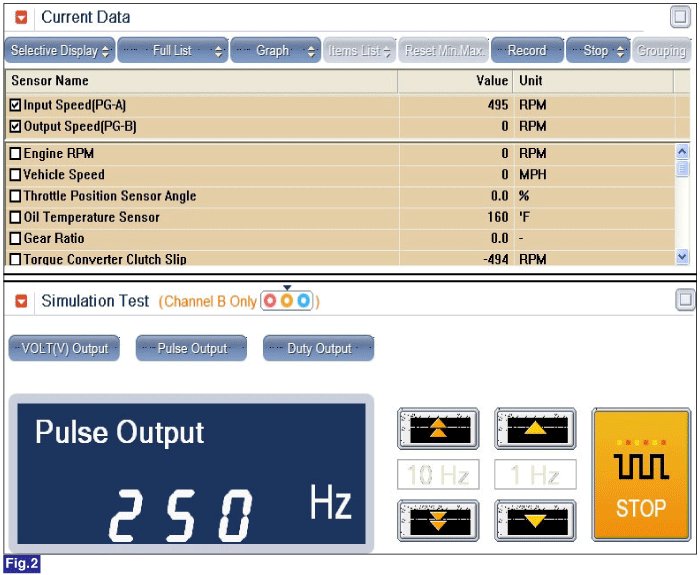

Fig 2) INPUT 250 Hz -> 495 rpm
** The values are subject to change according to vehicle model or conditions
5. Is "INPUT SPEED SENSOR" signal value changed according to simulation frequency?
