Component Inspection

P0650 Malfunction Indicator Lamp (MIL) Control Circuit

Inspection/Repair - Component Inspection

Component Inspection

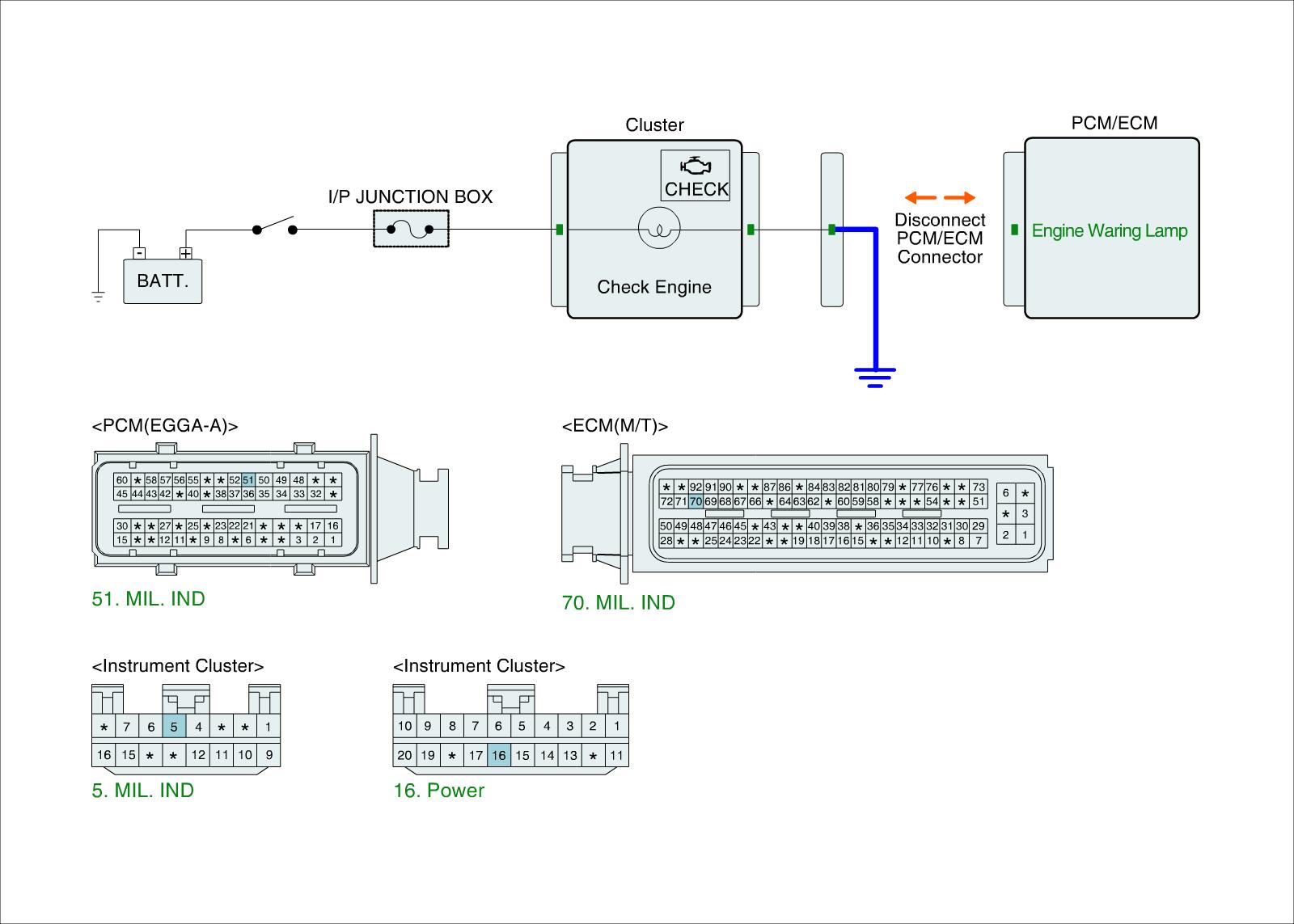

Mil System check
1. IG KEY "OFF".
2. Disconnect ECM connector.
3. Short warning lamp control terminal of ECM harness connector to Ground.

Specification : MIL ON.

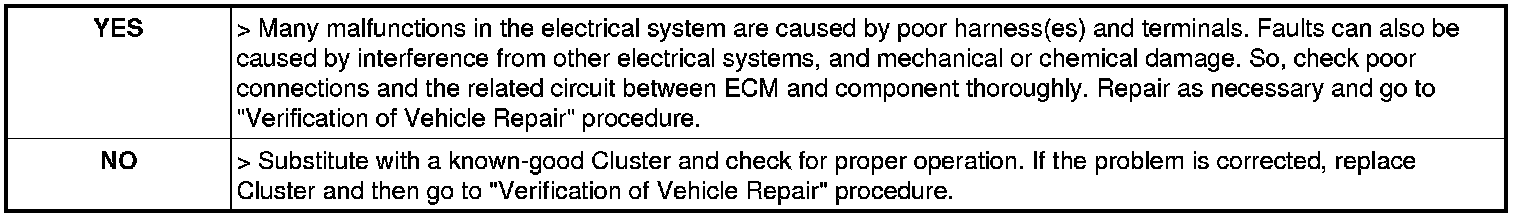

4. Is the Engine MIL lamp lighting normally?
