Component Inspection

P0625 Generator Field/ F Terminal Circuit Low

Inspection/Repair - Component Inspection

Component Inspection

Alternator check
1. IG KEY "OFF".
2. Check the tension of alternator belt.
3. Check corrosion, damage or looseness of Battery terminal and Alternator terminal.
4. Engine start.
5. Operate electrical parts (Head lamp, Defogger, etc).
6. Measure the voltage at 2000 rpm.

Specification : Approx 12.5 V ~ 14.5 V

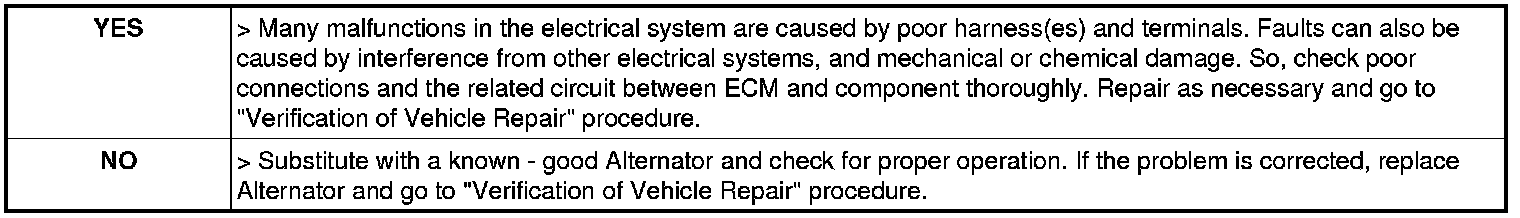

7. Is the measured voltage within specification?
