Scantool Diagnostics

P0560 System Voltage

Scantool Diagnostics

Monitor GDS Data

1. Connect GDS to Data Link Connector (DLC).
2. Warm up the engine to normal operating temperature.
3. Monitor the "Main relay, Battery Voltage" parameters on the GDS.

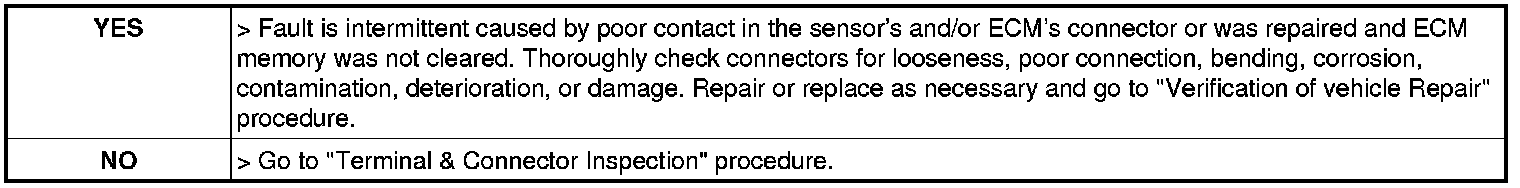

4. Are the parameters displayed correctly?
