P0560 System Voltage

Inspection/Repair - Component Inspection

Component Inspection

Main Relay Check
1. IG KEY "OFF".
2. Disconnect main relay.
3. IG KEY "ON" & ENG "OFF"

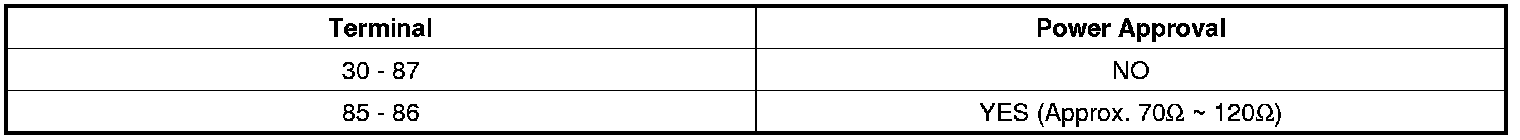

4. Measure the voltage between Power from battery (30) terminal and Power to component (87) of main relay harness connector and chassis ground.
5. Measure the voltage between Power from battery (30) terminal and Power to component (87) of main relay harness connector and chassis ground.

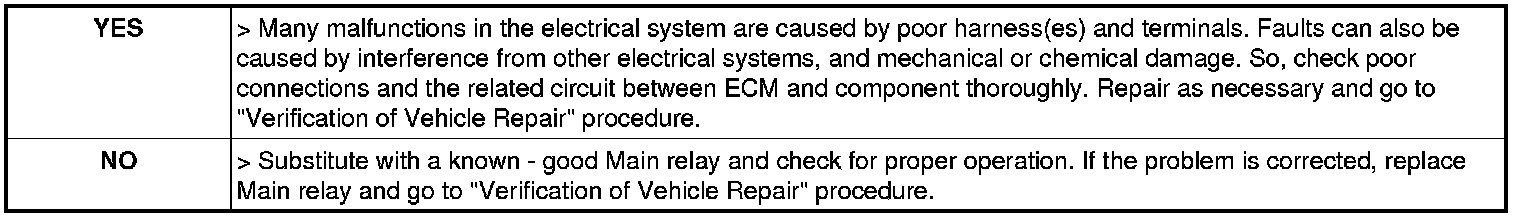

6. Is the measured resistance within specifications?
