P0532 A/C Refrigerant Pressure Sensor \'A\' Circuit Low Input

General Information

Component Location





General Description

The ECM (Engine Control Module) receives pressure signal in the A/C refrigerant high pressure side from the A/C refrigerant pressure sensor. This input indicates how much load the A/C compressor is putting on the engine and is one of the factors used by the ECM in order to determine the idle air control position for the idle speed. The circuits consist of a 5 V reference and a ground, both provided by the ECM, and a signal from the sensor. The signal is a voltage which is proportional to the A/C pressure from 0 to 5 V. Low pressure produces a low voltage signal and high pressure a high-voltage signal.

DTC Description

If signal is below 0.195 V under detecting condition, ECM sets P0532.

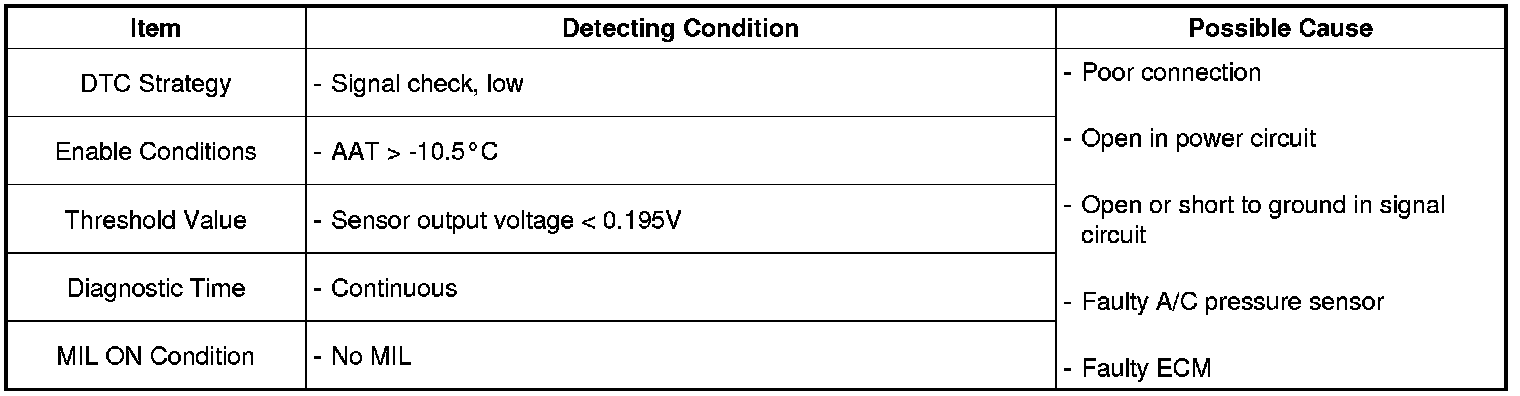

DTC Detecting Condition

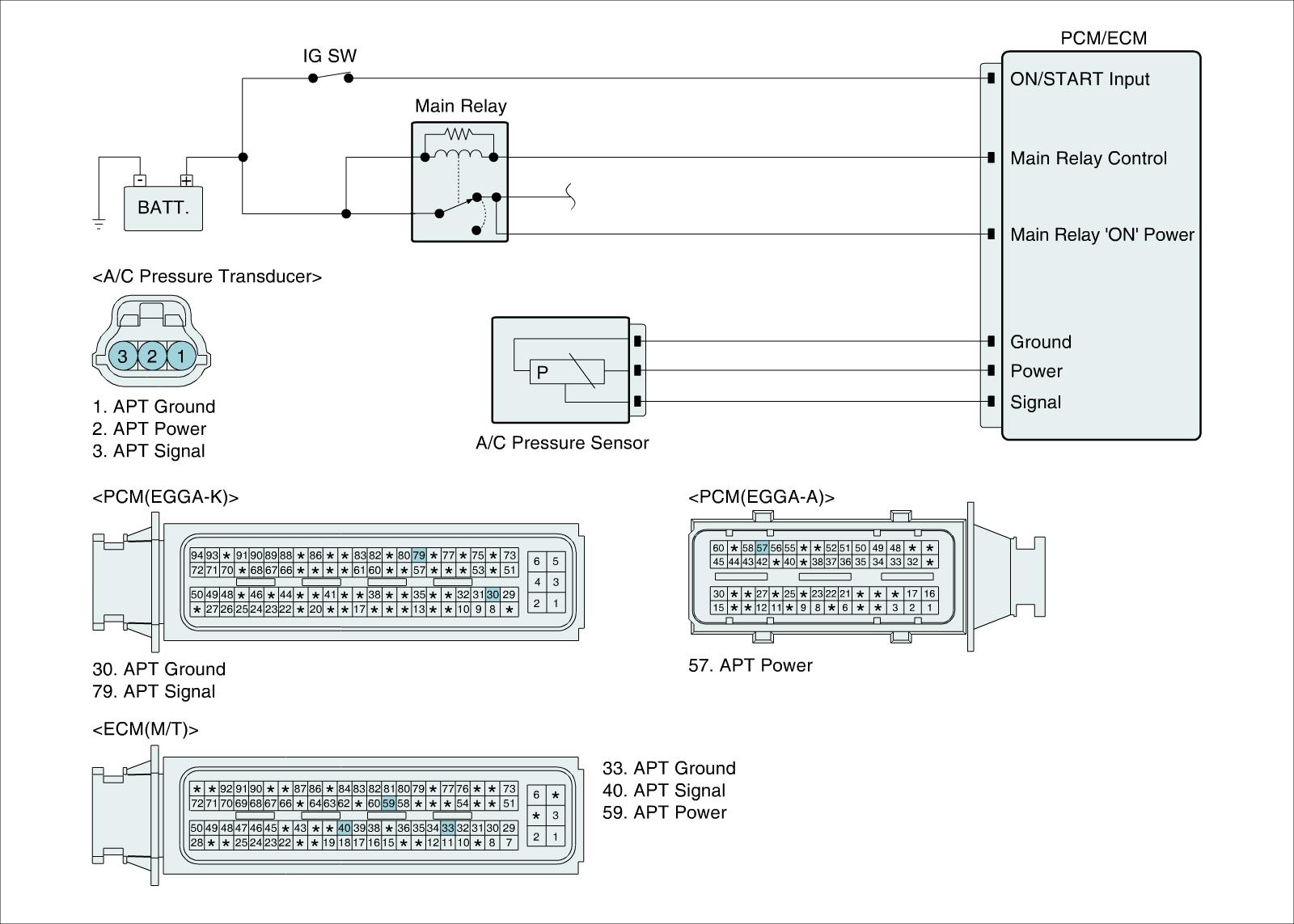

Diagnostic Circuit Diagram





Signal Waveform & Data




Fig 1) Normal waveforms of A/C pressure sensor during the time from turning on A/C switch to turning off A/C switch
