Component Inspection

P0497 Evaporative Emission System Low Purge Flow

Inspection/Repair - Component Inspection

Component Inspection

Visual Inspection
1. Check poor connection, bending or clog on hoses for the fuel evaporative system.
2. Has a problem been found?





Check PCM
1. Connect GSD on the DLC (Data Link Connector)
2. Perform Action Test for Canister Vent Solenoid Valve with GDS.
3. Check clicking sound of PCSV.

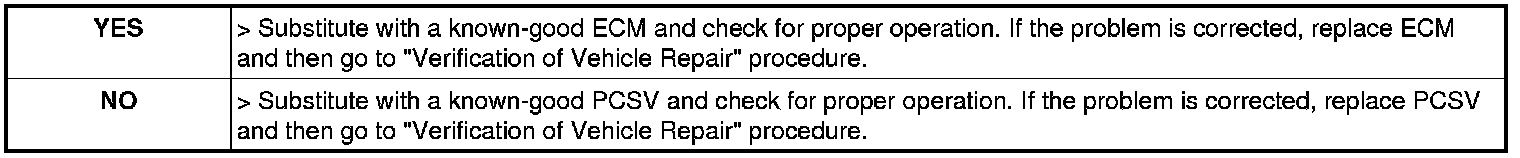

4. Is the PCSV normal?
