Component Inspection

P0462 Fuel Level Sensor \'A\' Circuit Low Input

Inspection/Repair - Component Inspection

Component Inspection

Check FLS resistance
1. IG "OFF" and Disconnect Fuel Sender & Fuel Pump Motor connector.
2. Remove these senders from fuel tank and measure the resistance of Fuel sender while lifting up and down the fuel level float.

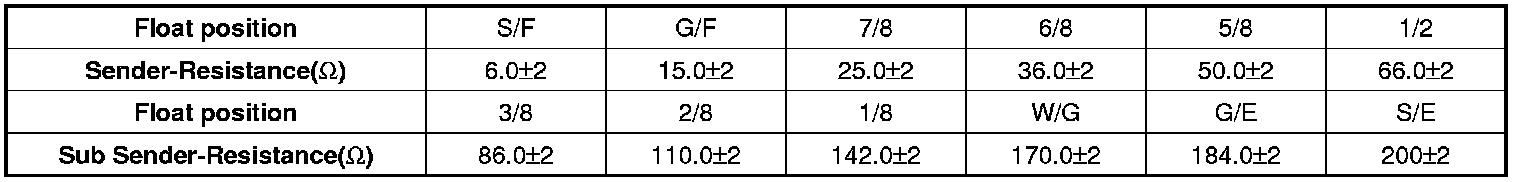

Specification :

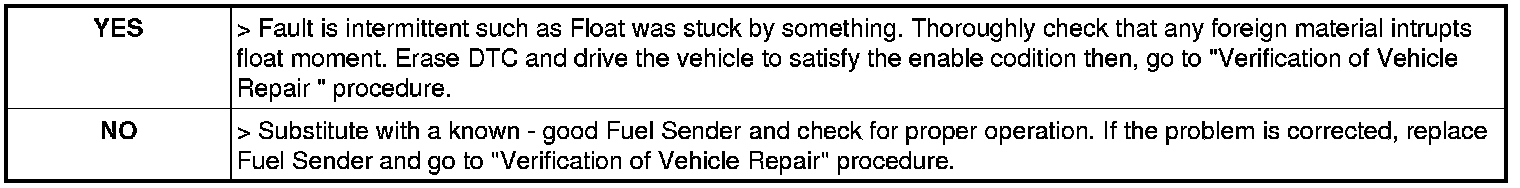

3. Does the resistance of FLS change as lifting up and down the fuel level float?
