P0461 Fuel Level Sensor \'A\' Circuit Range/Performance

General Information

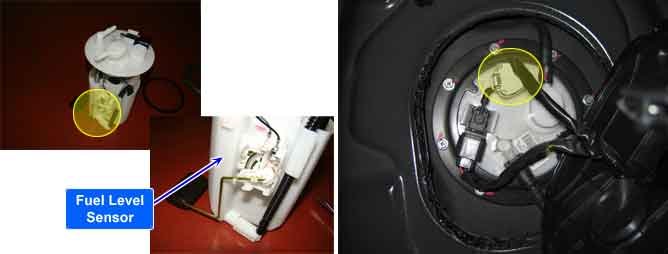

Component Location





General Description

The Fuel Level Sensor (FLS) measures the fuel level in fuel tank and its information is used to supply the ECM with information regarding the monitoring condition of the EVAP canister purge system for leak detection. If the fuel level sensor is monitored for high or low stuck or difference between voltage of fuel level sensor and voltage deviation of fuel level sensor is exceeds limited value while driving, this is interpreted by the ECM as a fault.

DTC Description

When the difference between actual consumed fuel and model consumed fuel is over the threshold value, ECM sets DTC P0461.

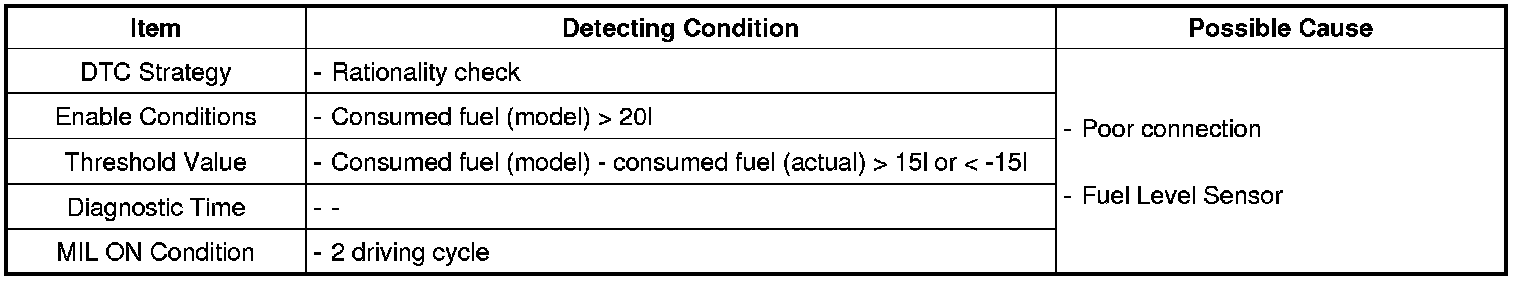

DTC Detecting Condition

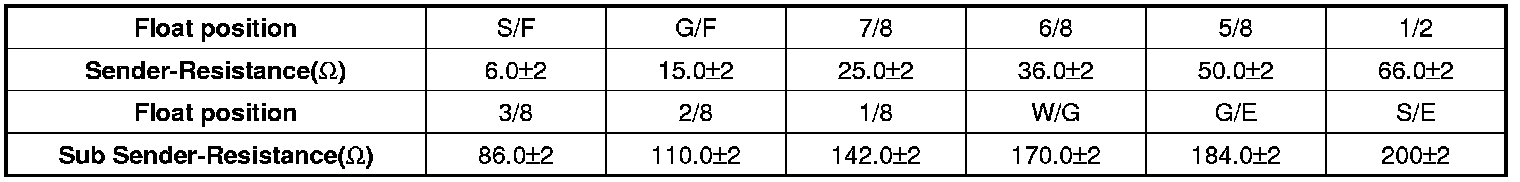

Specification

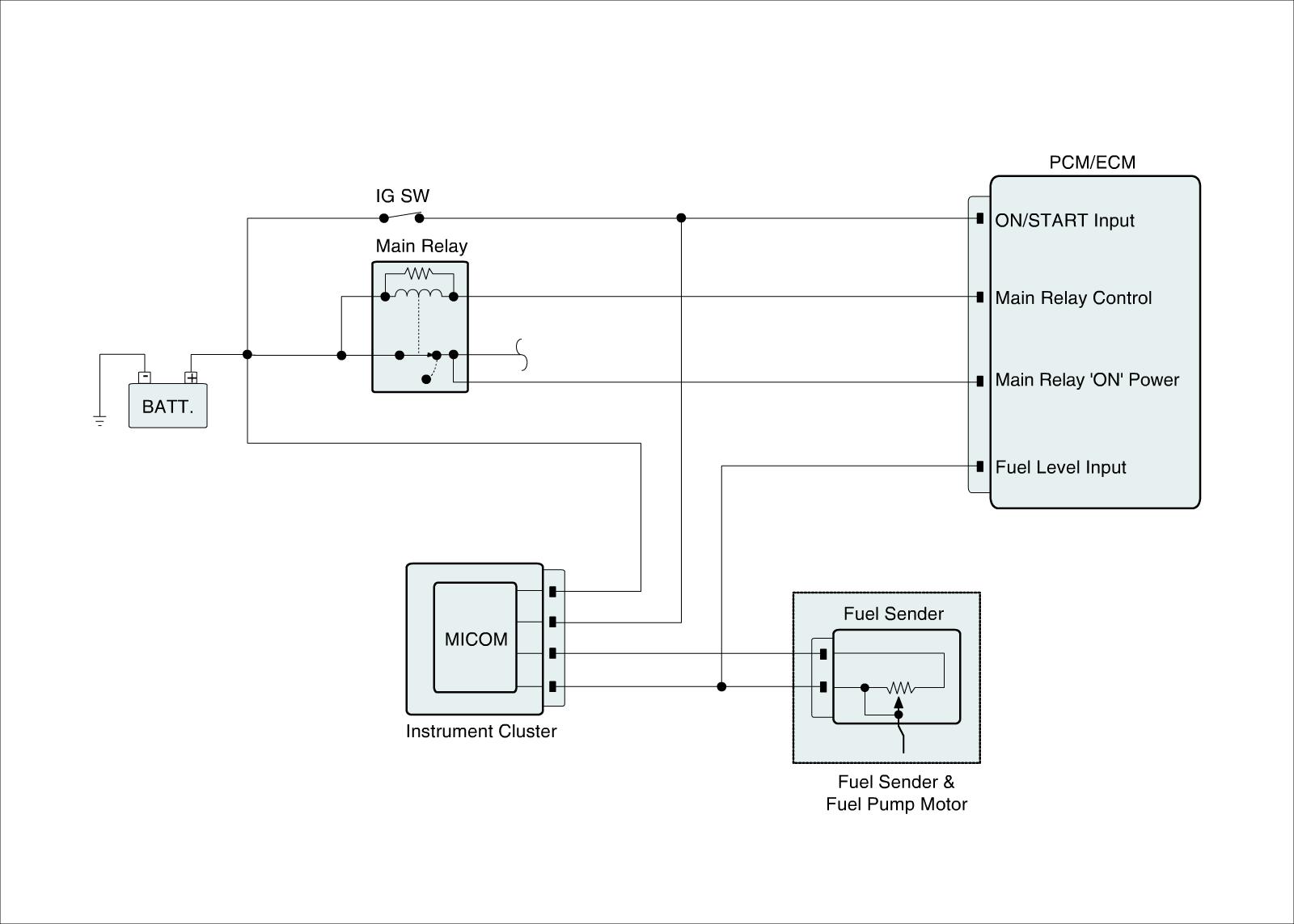

Diagnostic Circuit Diagram
