Component Inspection

P0459 Evaporative Emission System Purge Control Valve Circuit High

Inspection/Repair - Component Inspection

Component Inspection

Check Short in signal circuit
1. IG KEY "OFF".
2. Disconnect PCSV connector.
3. Measure the resistance between power terminal and control terminal of PCSV harness connector. (Component side)
Specification :

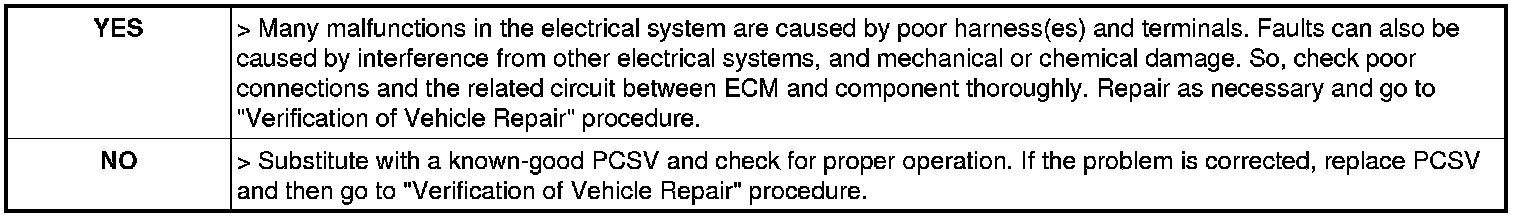

4. Is the measured resistance within specification?
