Component Inspection

P0458 Evaporative Emission System Purge Control Valve Circuit Low

Inspection/Repair - Component Inspection

Component Inspection

Check Short in signal circuit
1. IG KEY "OFF".
2. Disconnect PCSV connector.

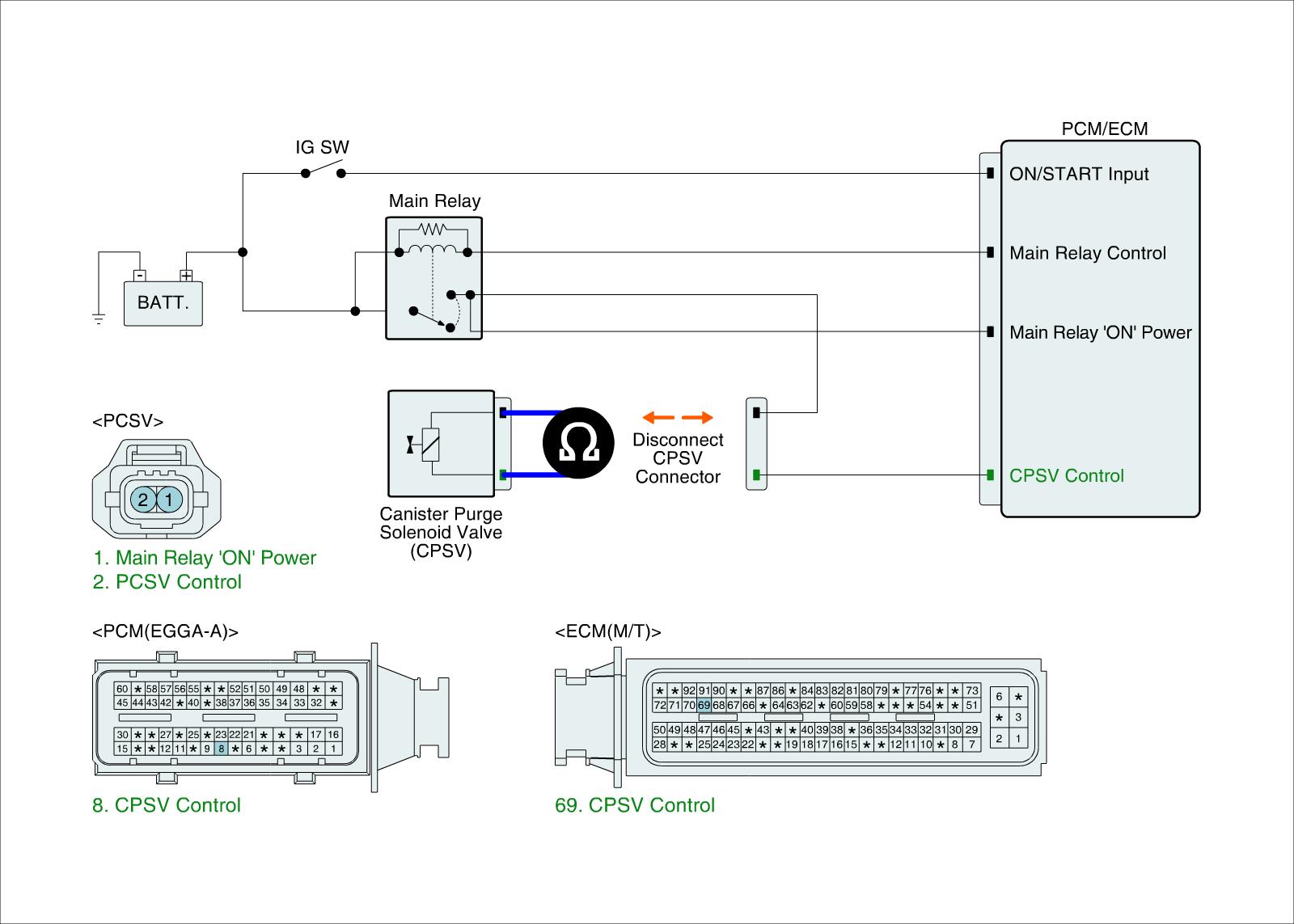

3. Measure the resistance between power terminal and control terminal of PCSV harness connector. (Component side)
Specification :

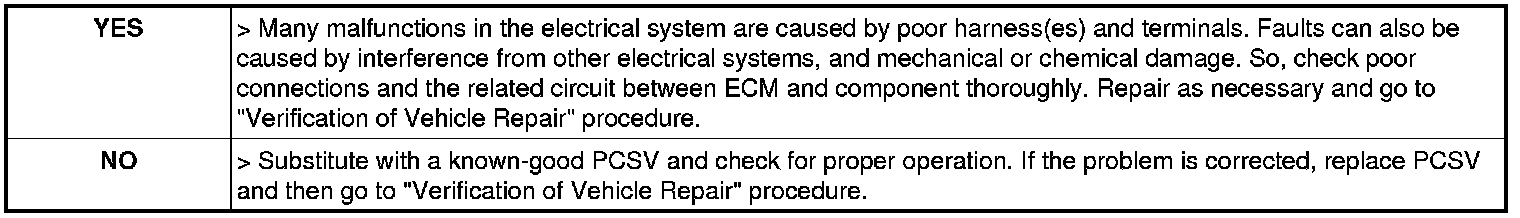

4. Is the measured resistance within specification?
