Scantool Diagnostics

P0451 Evaporative Emission System-Pressure Sensor Range / Performance

Scantool Diagnostics

Monitor GDS Data

1. Connect scantool to Data Link Connector (DLC).
2. Warm up the engine to normal operating temperature.

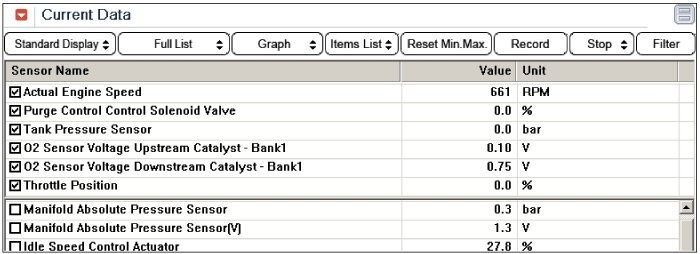

3. Monitor the "Fuel Tank Pressure sensor" parameters on the GDS.

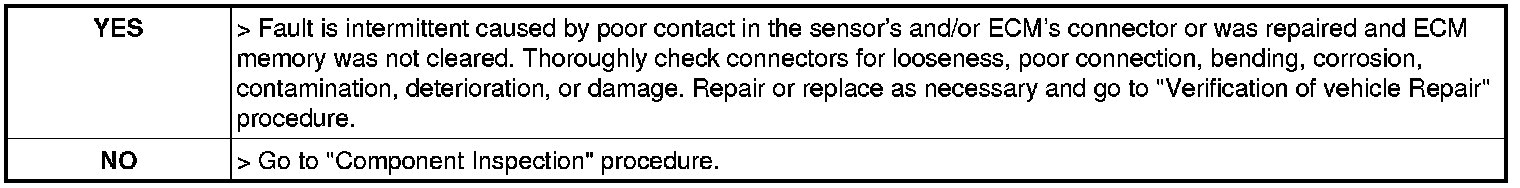

4. Are the parameters displayed correctly?
