Component Inspection

P0343 Camshaft Position Sensor A Circuit High Input (Bank 1)

Inspection/Repair - Component Inspection

Component Inspection

Visual Check
1. IG KEY "OFF".
2. Check physical condition of CMPS.
3. Check the projection of cam-shaft visually after remove the CMPS.
4. Is everything O.K?





CMPS check
1. IG KEY "OFF". (Don't disconnect sensors.)

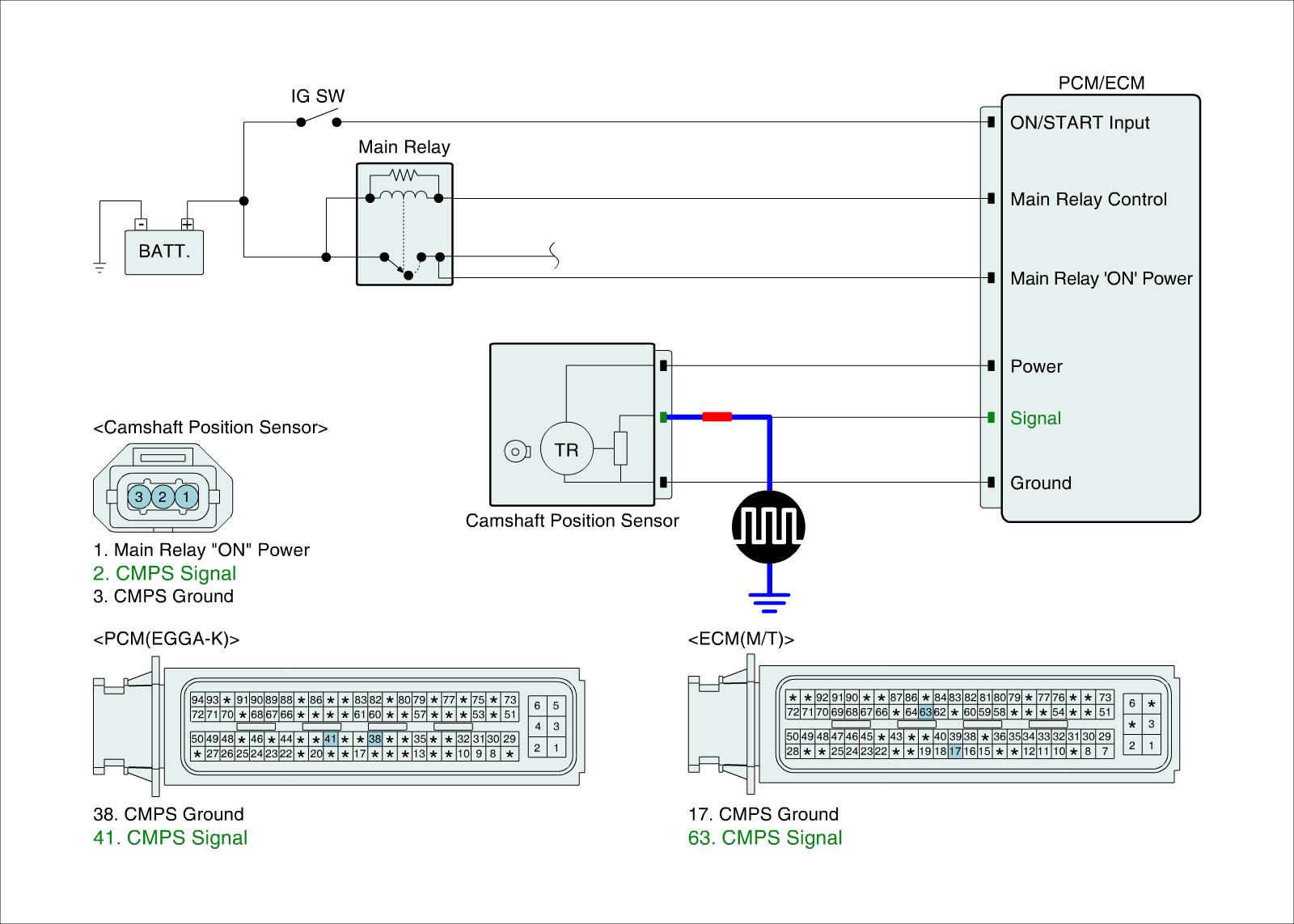

2. Select "vehicle scopemeter" in the menu, and connect channel A of GDS with signal terminal of CMPS harness connector.
3. Engine start. And check the signal waveforms.

Specification : Refer to Signal Waveform & Data

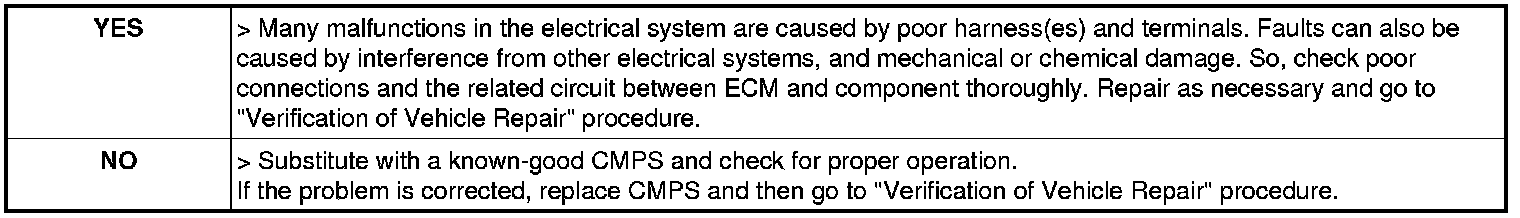

4. Is the signal waveform within specifications?
