Scantool Diagnostics

P0338 Crankshaft Position Sensor \'A\' Circuit High Input

Scantool Diagnostics

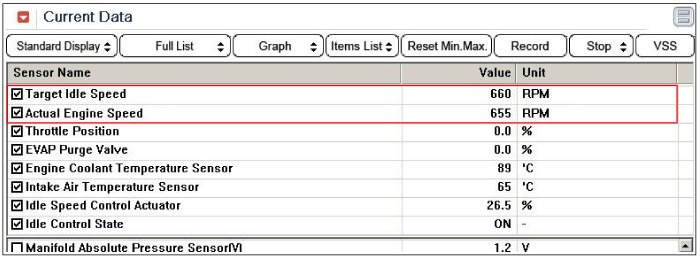

Monitor GDS Data

1. Connect GDS to Data Link Connector (DLC).
2. Engine start.
3. Monitor the "Engine speed" parameters on the GDS.

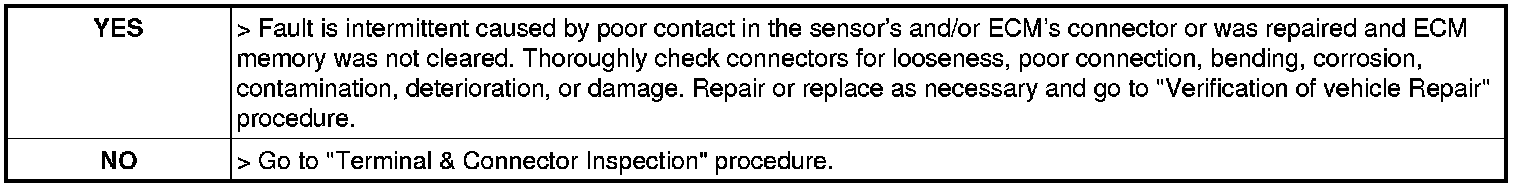

4. Are the parameters displayed correctly?
